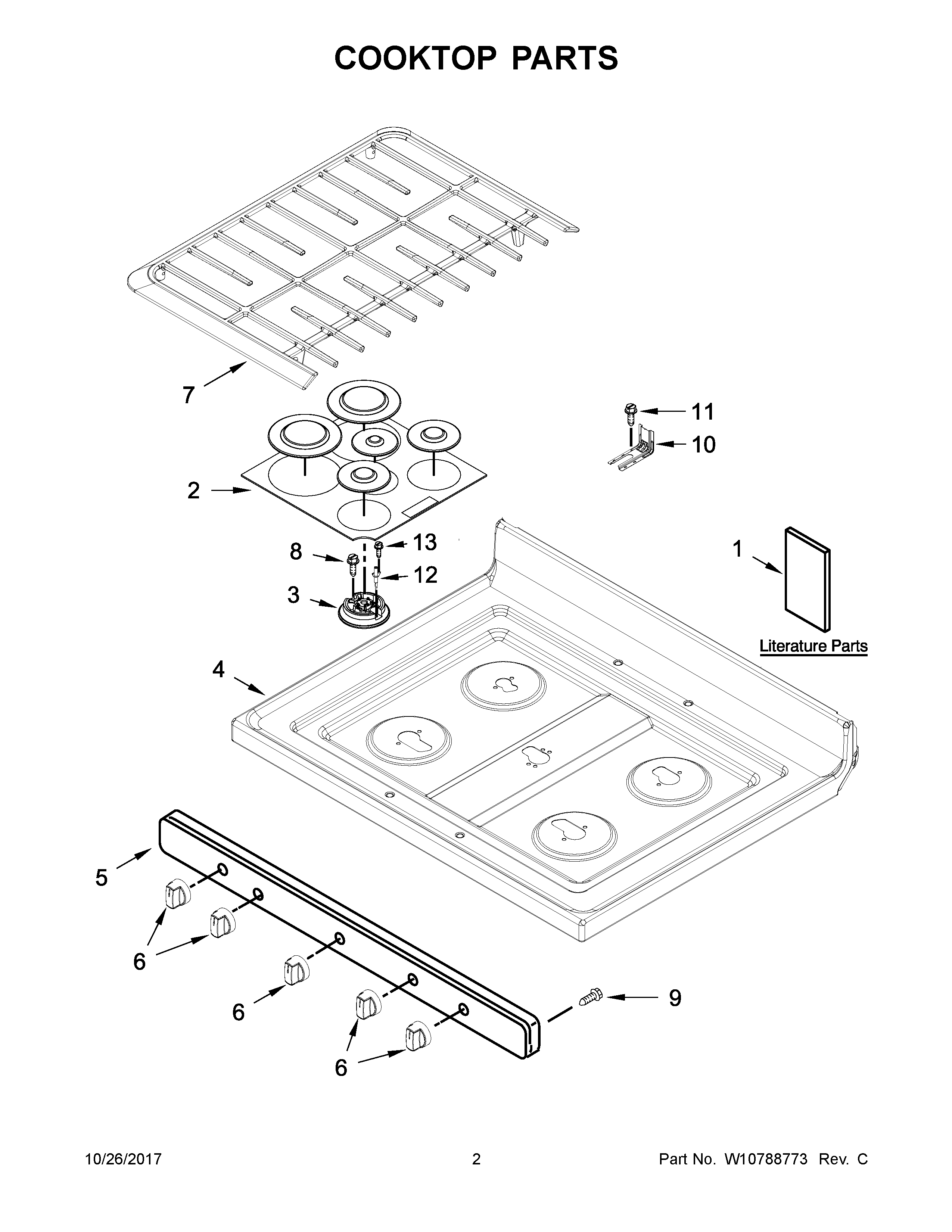

WFG530S0EB0 02 – COOKTOP PARTS

WFG530S0EB0 02 – COOKTOP PARTS

Written by

in

WFG530S0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11161843 Whirlpool Wire Harness
NIW10738993 Whirlpool Wire Harness
NIW10519920 Whirlpool Wire Harness
NIW10683155 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NICABINET (NOT A SERVICEABLE PART)
1CSHEET, TECH (FRENCH)
1AGUIDE, USE AND CARE
1BTECH SHEET (ENGLISH)
1ESafer Cooking Tips (French)
1INSTRUCTIONS, INSTALLATION
1DSAFER COOKING TIPS (ENGLISH
2WPW10183374 Whirlpool Burner Cap
3WPW10515455 Whirlpool Burner Head
3AWPW10515454 Whirlpool Burner Head
3BWPW10515453 Whirlpool Burner Head
4W10457322 Whirlpool Cooktop
4AW10457321 Whirlpool Cooktop
5AW10444453 Whirlpool Manifold Panel
5W10444452 Whirlpool Manifold Panel
6AW10819917 Whirlpool Knob
6W10909673 Whirlpool Knob Assembly
7W11394363 Whirlpool Grate Kit
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12WPW10515459 Whirlpool Surface Igniter
13WP8273062 Whirlpool Screw
