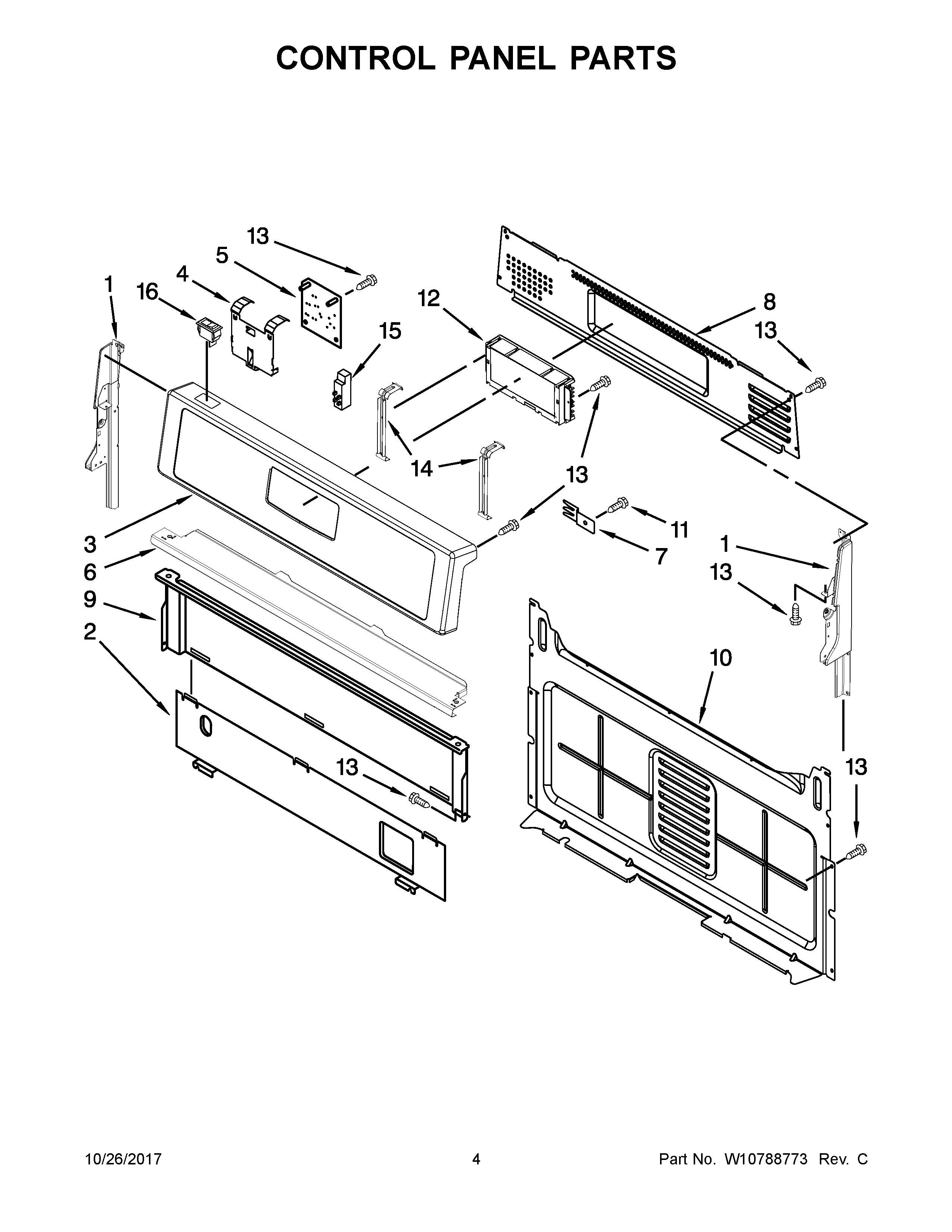

WFG530S0EB0 03 – CONTROL PANEL PARTS
Written by
in
WFG530S0EB0 03 – CONTROL PANEL PARTS
Products
Position
Product
1B
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1A
W11219664 Whirlpool Endcap Panel
1C
W11219665 Whirlpool Panel Endcap
2
8053505 Whirlpool Oven Shield
3
W11252094 Whirlpool Control Panel
3A
W10725472 Whirlpool Control Panel
3B
W11250166 Whirlpool Control Panel
4
W10762981 Whirlpool Mounting Bracket Assembly
5
WPW10511278 Whirlpool Spark Module
6
W10516123 Whirlpool Mounting Bracket
7
8523412 Whirlpool Mounting Bracket
8
W10198745 Whirlpool Rear Cover
9
W10192841 Whirlpool Heat Shield
10
W10184251 Whirlpool Rear Cover
11
WP3196557 Whirlpool Screw
12A
W11122561-includeCORE Whirlpool W11122561 Washer Electronic Control Board
12
W11122562-includeCORE Whirlpool W11122562 Refrigerator Electronic Control Board with Core
13
SCREW
14
W11230932 Whirlpool Bracket Mounting
15
WPW10475149 Whirlpool Spark Module
16
3149360 Whirlpool Light Switch
16A
WP4314961 Whirlpool Lite Switch
←
