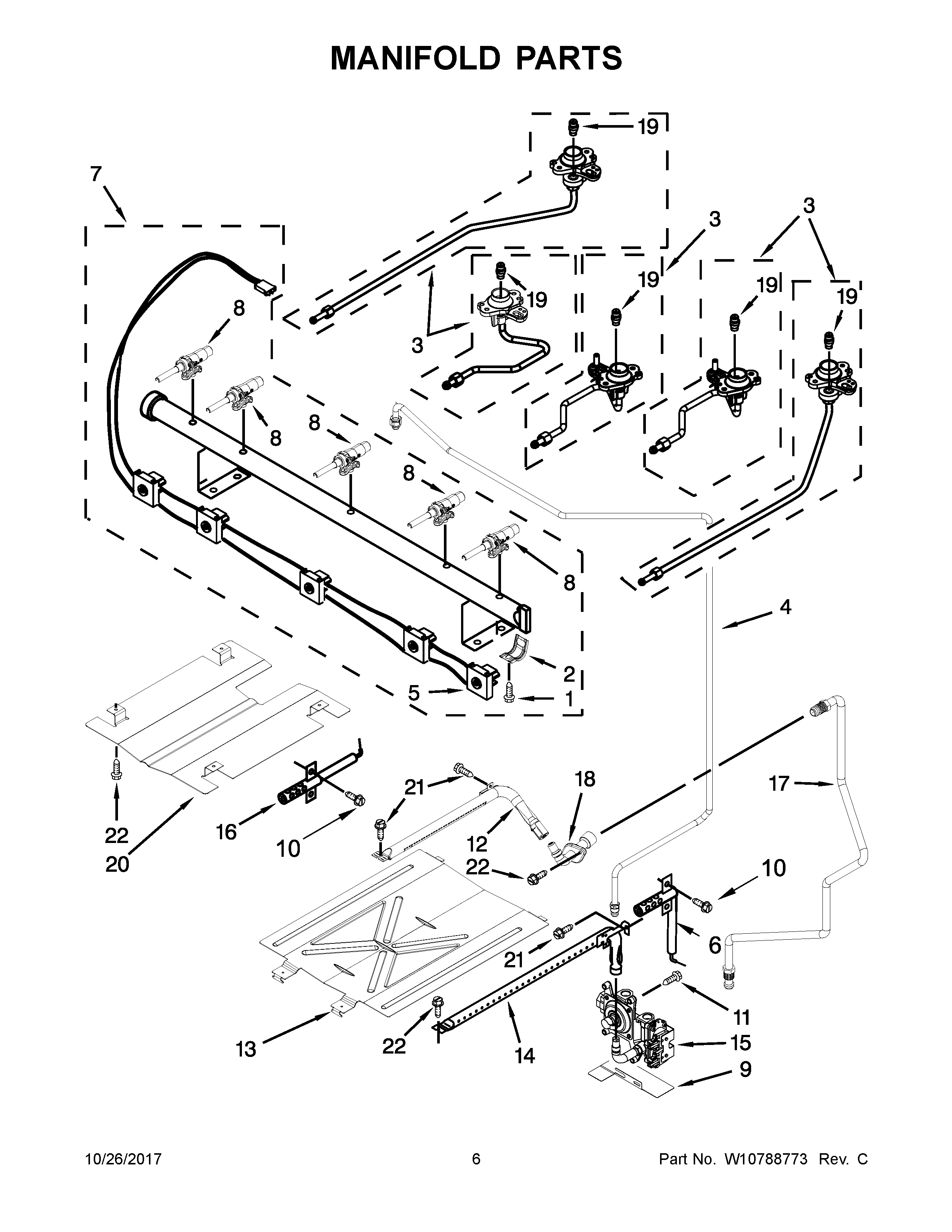

WFG530S0EB0 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUD-ORFCE
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11126051 Whirlpool Conversion Kit
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3A	W11700294 Whirlpool Range Orifice Holder
3B	W11234417 Whirlpool Surface Burner Orifice Holder
3D	W10474170 Whirlpool Orifice Holder
3C	W11700304 Whirlpool Orifice Holder
3	W11197500 Whirlpool Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	WPW10413868 Whirlpool Wire Harness
6	WP9758079 Whirlpool Oven Igniter
7	WPW10413870 Whirlpool Manifold Assembly
8	WPW10279614 Whirlpool Burner Valve
8B	WPW10279615 Whirlpool Burner Valve
8A	WPW10247744 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11684507 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	WPW10602001 Whirlpool Gas Valve
16	WPW10333842 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	W10592836 Whirlpool Fitting
19A	WPW10170508 Whirlpool Orifice Spud
19B	WPW10170506 Whirlpool Orifice Spud
19C	WPW10170507 Whirlpool Orifice
19	WPW10347414 Whirlpool Orifice Spud
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
