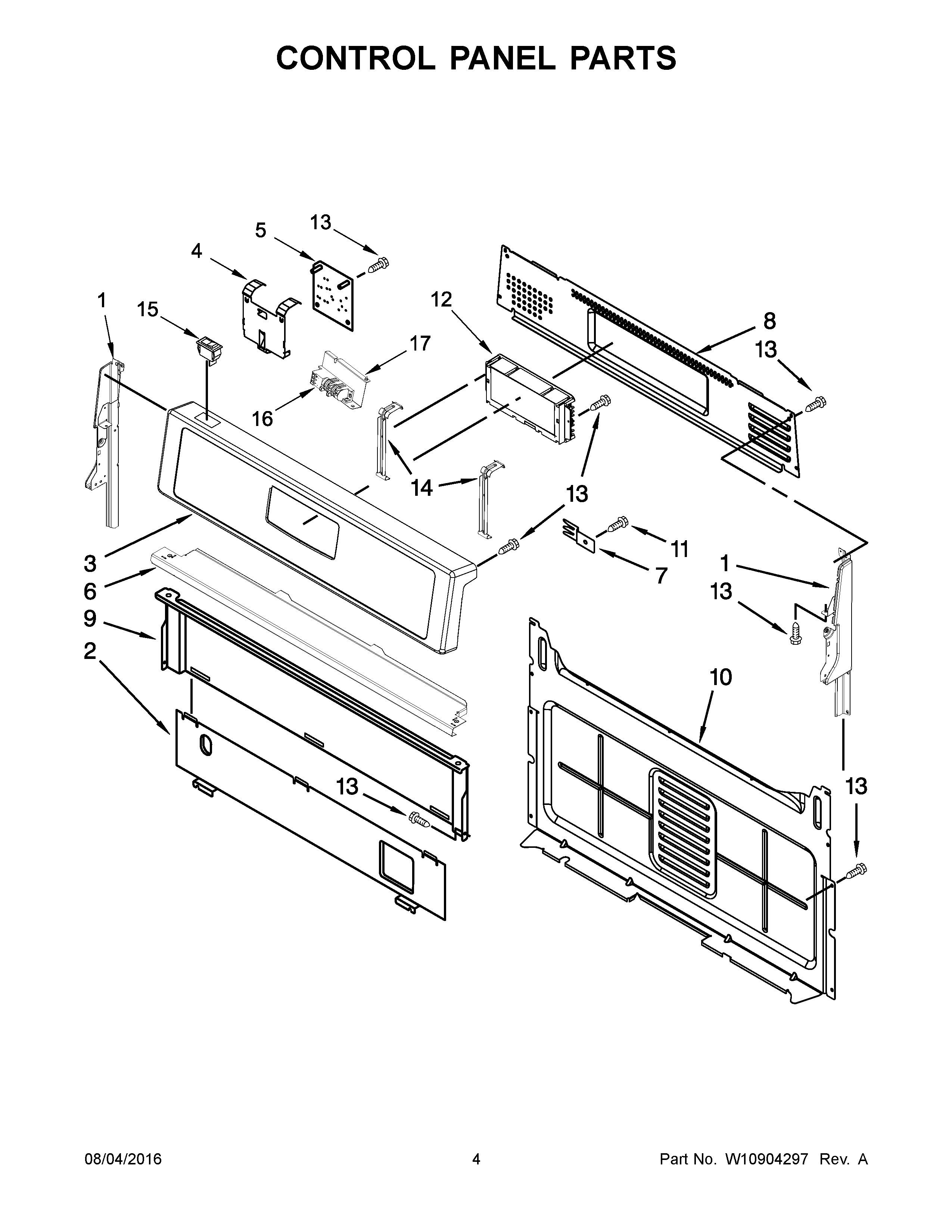

WFG530S0ES1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1A	W11219665 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3A	W11252094 Whirlpool Control Panel
3B	W11250166 Whirlpool Control Panel
3	W10725472 Whirlpool Control Panel
4	W10762981 Whirlpool Mounting Bracket Assembly
5	WPW10511278 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	W10184251 Whirlpool Rear Cover
11	WP3196557 Whirlpool Screw
12	W11122561-includeCORE Whirlpool W11122561 Washer Electronic Control Board
12A	W11122562-includeCORE Whirlpool W11122562 Refrigerator Electronic Control Board with Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15A	3149360 Whirlpool Light Switch
15	WP4314961 Whirlpool Lite Switch
16	WPW10475149 Whirlpool Spark Module
17	W10901176 Whirlpool Bracket Assembly
