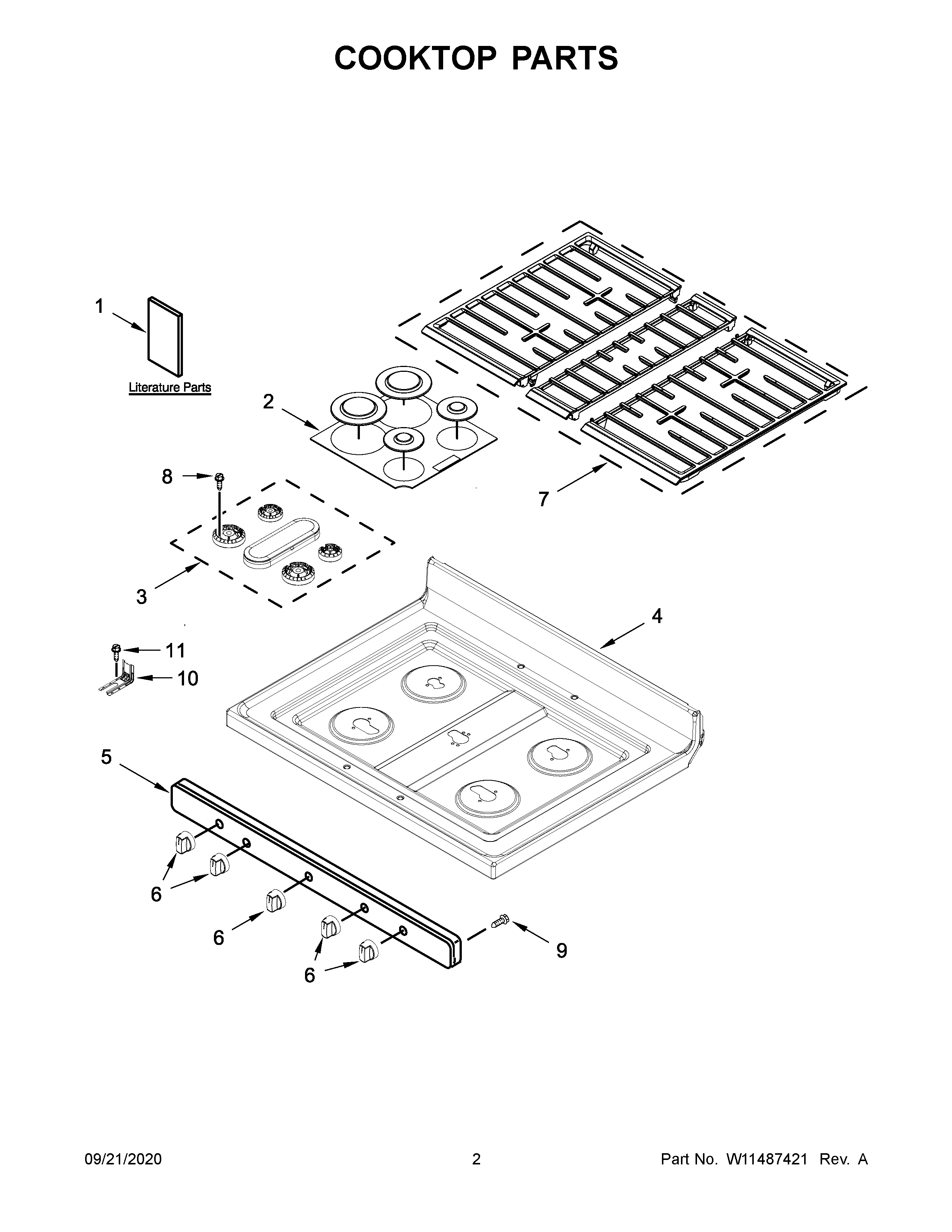

WFG535S0JV1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NI3196896 Whirlpool Clip
NIW10849001 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
1CDIAGRAM, WIRING
1INSTALLATION INSTRUCTIONS
1BSHEET, TECH
1AUSE AND CARE GUIDE
2W11455147 Whirlpool Surface Burner Cap
3W11662402 Whirlpool Range Burner Head
4W11454367 Whirlpool Cooktop
5W11165142 Whirlpool Manifold Panel
6KNOB
7W11252165 Whirlpool Burner Grate
8W11241230 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
