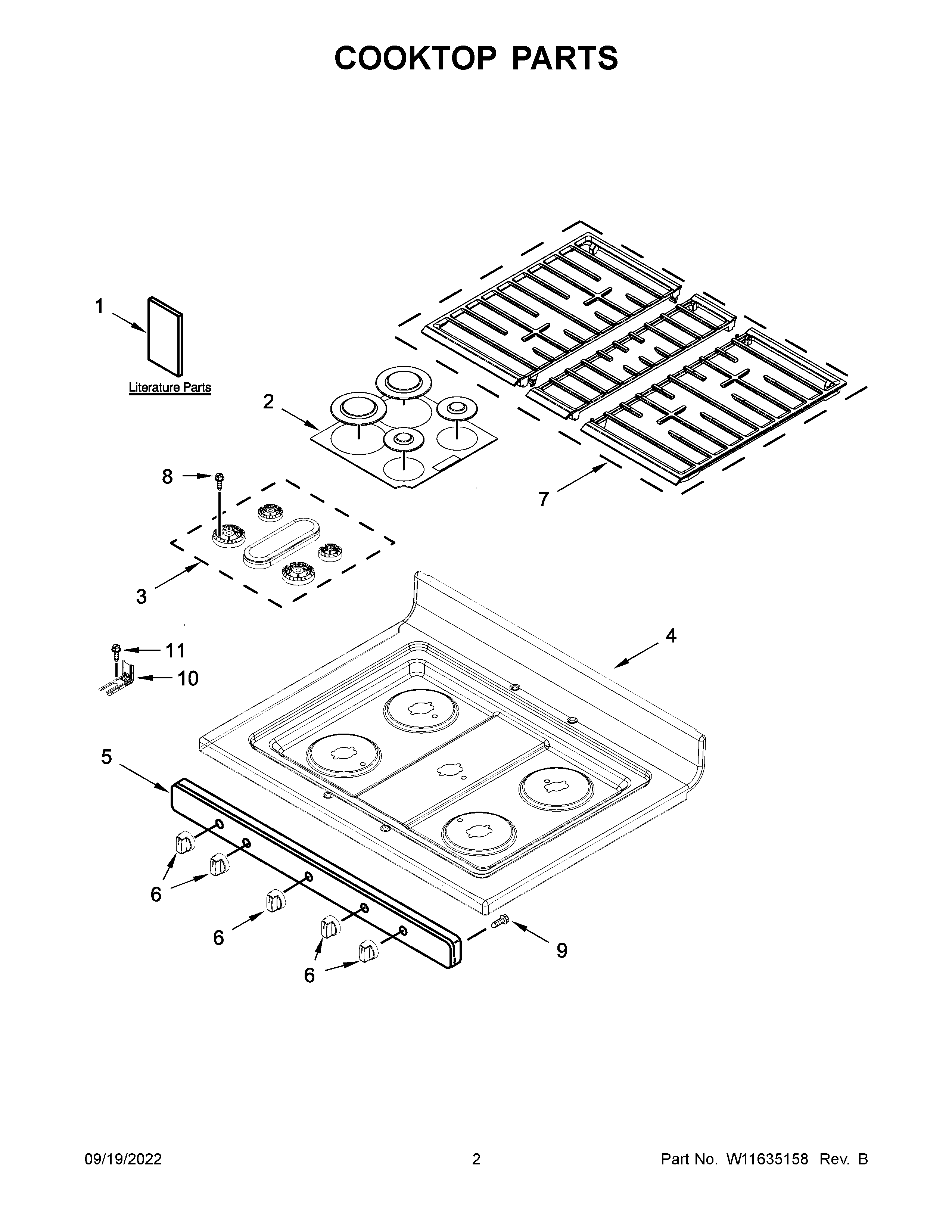

WFG535S0LS4 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNS-WIRE
NI	W11645866 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	WPW10182767 Whirlpool Wire Tie
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1C	QUICK START GUIDE
1	INSTALLATION INSTRUCTIONS
1A	OWNER'S MANUAL
1B	SHEET, TECH
2	W11455147 Whirlpool Surface Burner Cap
3	W11662402 Whirlpool Range Burner Head
4	W11454367 Whirlpool Cooktop
5	W11159626 Whirlpool Manifold Panel
6	W11620567 Whirlpool Knob
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
