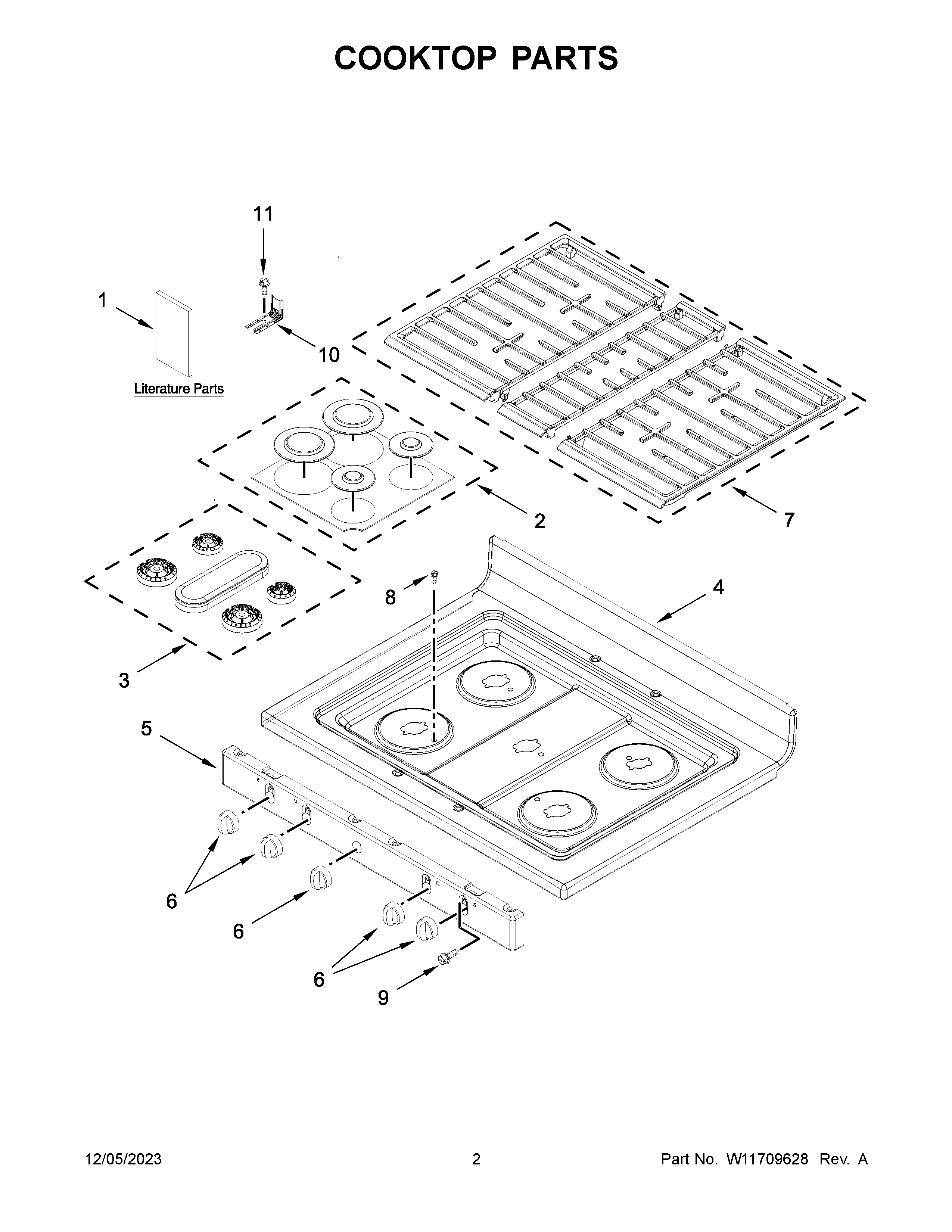

WFG535S0LZ5 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNS-WIRE
NI	W11645866 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
1B	QUICK START GUIDE
1A	OWNER'S MANUAL
1	WIRING DIAGRAM
2	W11455147 Whirlpool Surface Burner Cap
3	W11662402 Whirlpool Range Burner Head
4	W11454367 Whirlpool Cooktop
5	W11165140 Whirlpool Manifold Panel
6	W11620567 Whirlpool Knob
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
