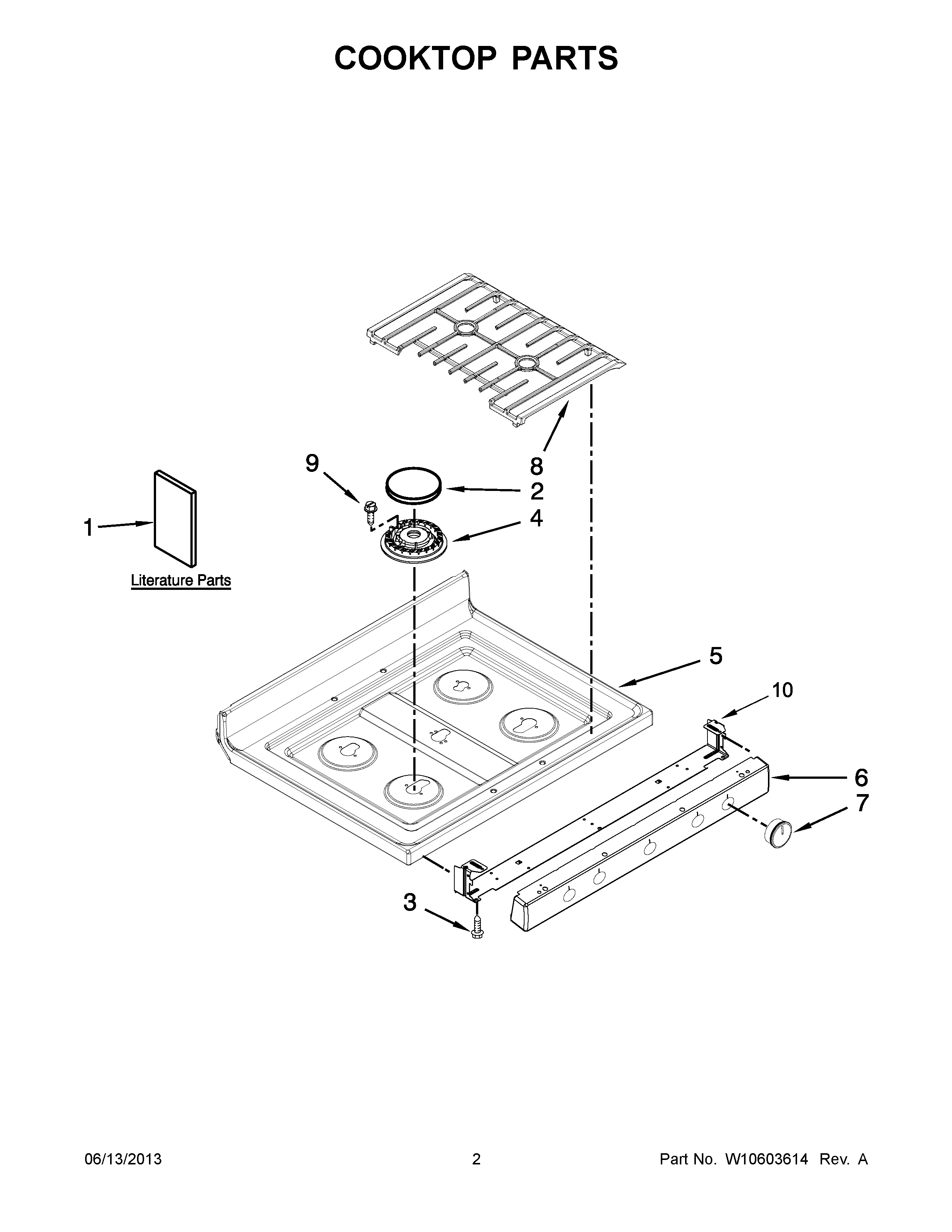

WFG540H0AB1 02 – COOKTOP PARTS

WFG540H0AB1 02 – COOKTOP PARTS

Written by

in

WFG540H0AB1 02 – COOKTOP PARTS

Products

PositionProduct
1FGUIDE, QUICK START
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
1GQUICK START GUIDE (FRENCH)
1WPL W10553363
1CSHEET, TECH (FRENCH)
1AGUIDE, USE & CARE
1BWPL W10538795
2WPW10183374 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4BWPW10515453 Whirlpool Burner Head
4AWPW10515454 Whirlpool Burner Head
4WPW10515455 Whirlpool Burner Head
5W10457322 Whirlpool Cooktop
5AW10457321 Whirlpool Cooktop
6AW10444453 Whirlpool Manifold Panel
6W10444452 Whirlpool Manifold Panel
6BW10330066 Whirlpool Manifold Panel
7BW10766544 Whirlpool Range Stainless Burner Control Knob
7KNOB (WHITE)
7AWPW10430782 Whirlpool Knob
7CKNOB
8W11394363 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10W10534174 Whirlpool Support Bracket
10AW10530070 Whirlpool Support Bracket
