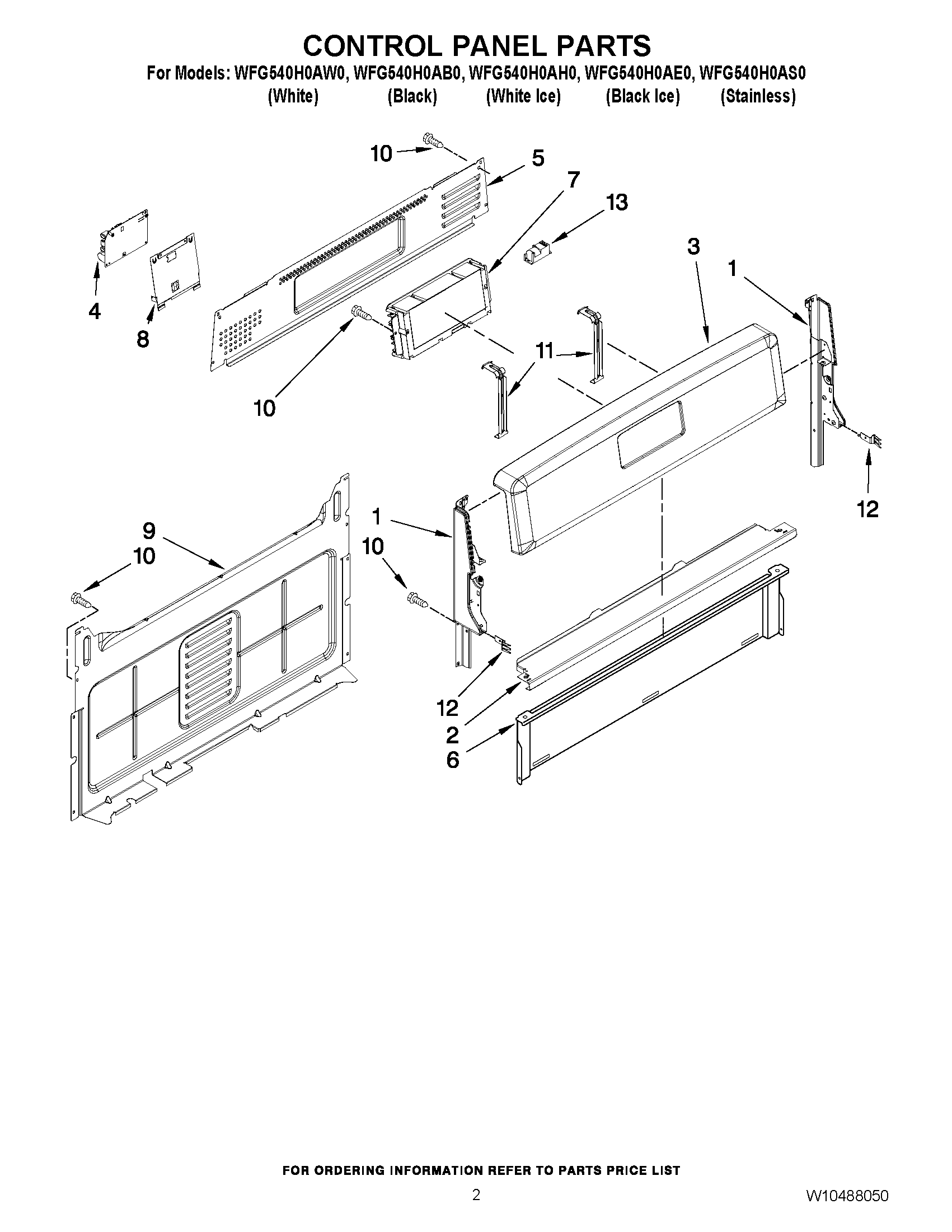

WFG540H0AE0 02 – CONTROL PANEL PARTS

WFG540H0AE0 02 – CONTROL PANEL PARTS

Written by

in

WFG540H0AE0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2Brkt-Mntg, Console
3W11234434 Whirlpool Control Panel
3W11231628 Whirlpool Control Panel
3W11234436 Whirlpool Control Panel
4WPW10331686 Whirlpool Oven Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10348712-includeCORE Whirlpool WPW10348712 Refrigerator Electronic Control Board + Core
7WPW10348713-includeCORE Whirlpool WPW10348713 Refrigerator Electronic Control Board + Core
7WPW10475745-includeCORE Whirlpool WPW10475745 Refrigerator Electronic Control Board + Core
7WPW10349742-includeCORE Whirlpool WPW10349742 Refrigerator Electronic Control Board + Core
8W10333917 Whirlpool Bracket Mounting
9W10184251 Whirlpool Rear Cover
10SCREW
11W11230932 Whirlpool Bracket Mounting
128523412 Whirlpool Mounting Bracket
13MODULE, SPARK
