WFG540H0AE1 03 – CONTROL PANEL PARTS
Written by
in

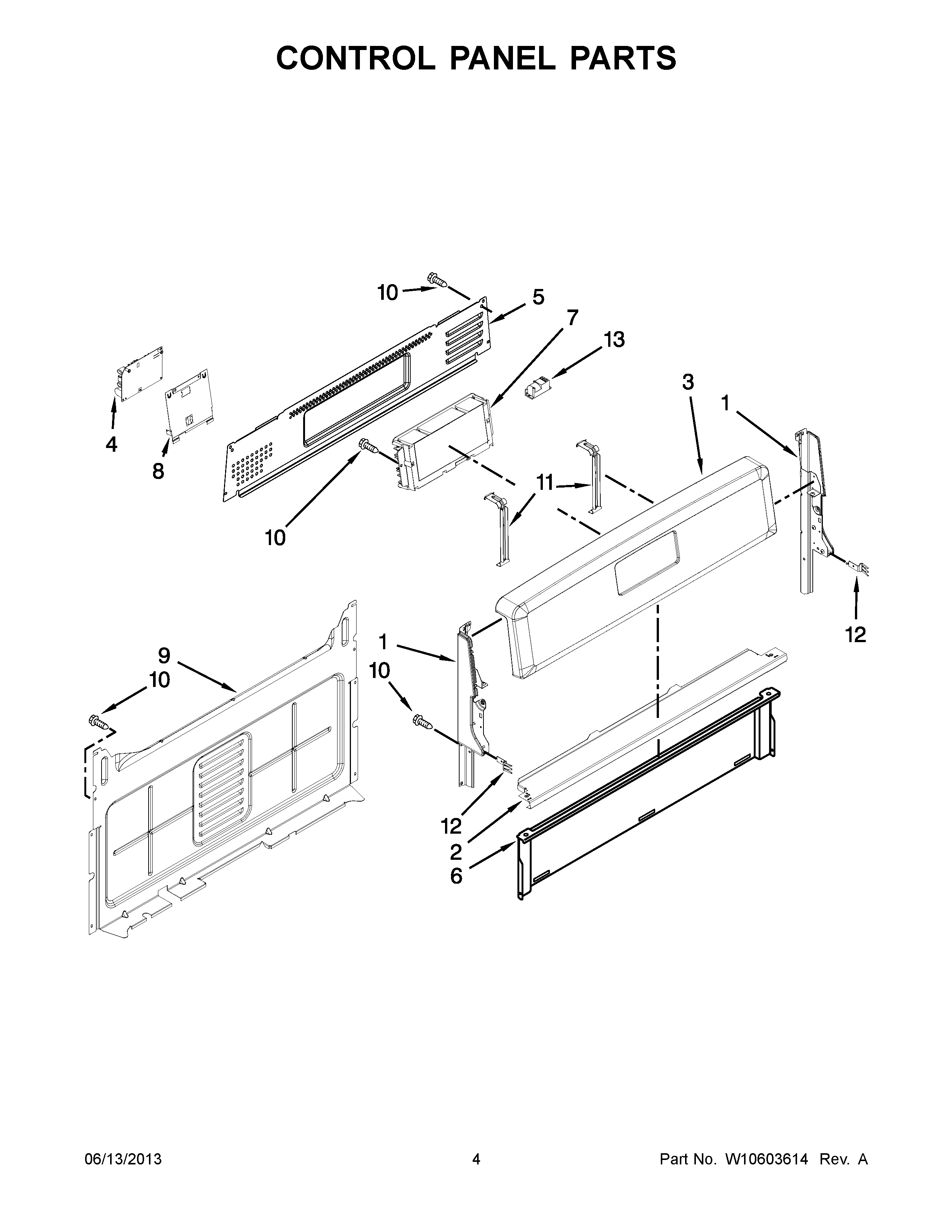

WFG540H0AE1 03 – CONTROL PANEL PARTS
Products
Position
Product
1B
W11219370 Whirlpool Endcap Panel
1A
W11219664 Whirlpool Endcap Panel
1C
W11219665 Whirlpool Panel Endcap
1
W11219365 Whirlpool Panel Endcap
2
W10516123 Whirlpool Mounting Bracket
3A
W11234434 Whirlpool Control Panel
3B
W11231628 Whirlpool Control Panel
3
W11234436 Whirlpool Control Panel
4
WPW10511278 Whirlpool Spark Module
5
W10198745 Whirlpool Rear Cover
6
W10192841 Whirlpool Heat Shield
7
WPW10348713-includeCORE Whirlpool WPW10348713 Refrigerator Electronic Control Board + Core
7A
WPW10348712-includeCORE Whirlpool WPW10348712 Refrigerator Electronic Control Board + Core
7C
WPW10475745-includeCORE Whirlpool WPW10475745 Refrigerator Electronic Control Board + Core
7B
WPW10349742-includeCORE Whirlpool WPW10349742 Refrigerator Electronic Control Board + Core
8
W10516577 Whirlpool Bracket Mounting
9
W10184251 Whirlpool Rear Cover
10
SCREW
11
W11230932 Whirlpool Bracket Mounting
12
8523412 Whirlpool Mounting Bracket
13
WPW10475149 Whirlpool Spark Module
←
