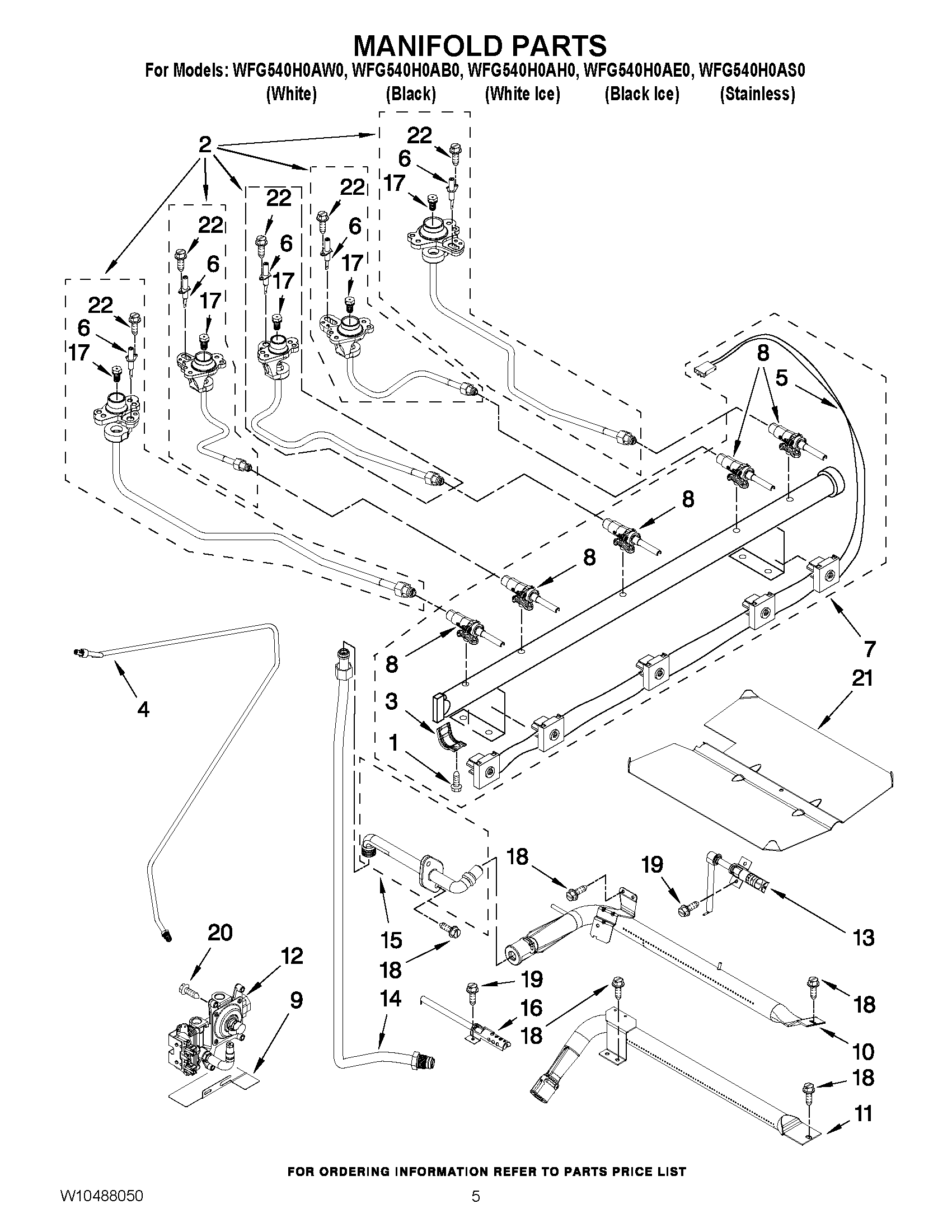

WFG540H0AS0 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUD-ORFCE
NI	WPW10400494 Whirlpool Orifice Assembly
NI	ORIFICE, LP BROIL
1	W10295997 Whirlpool Screw
2	HOLDER, ORIFICE ((LF) 15K)
2	WPW10157415 Whirlpool Orifice Holder
2	WPW10347410 Whirlpool Orifice Holder
2	TUBING, BURNER W/ORIFICE (LEFT REAR (9.5 K))
2	WPW10157419 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	WPW10413868 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	WPW10413870 Whirlpool Manifold Assembly
8	WPW10279615 Whirlpool Burner Valve
8	WPW10279614 Whirlpool Burner Valve
8	WPW10247744 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	WPW10602004 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17	WPW10170506 Whirlpool Orifice Spud
17	W10853607 Whirlpool Orifice
17	WPW10170507 Whirlpool Orifice
17	WPW10347414 Whirlpool Orifice Spud
17	WPW10170508 Whirlpool Orifice Spud
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	WP8273062 Whirlpool Screw
