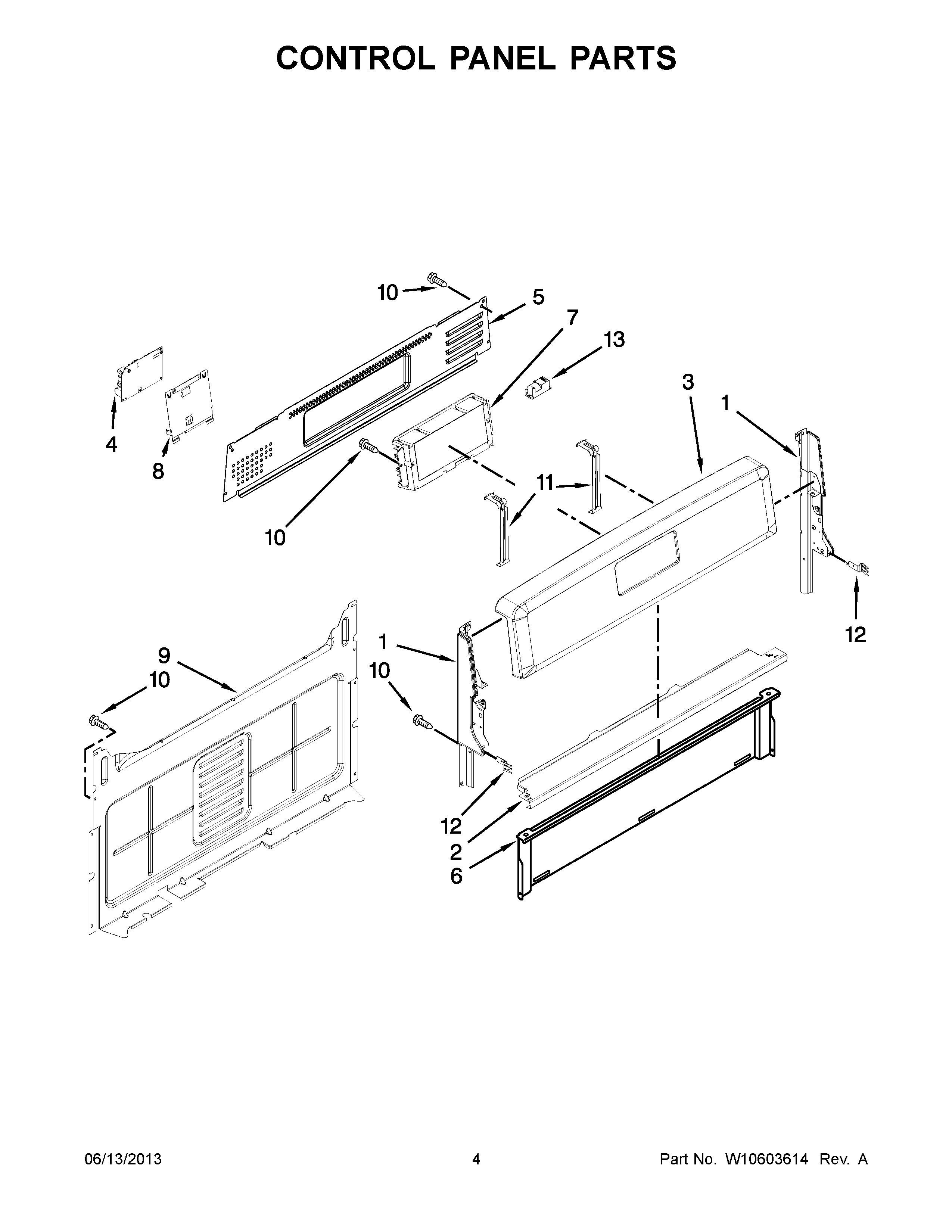

WFG540H0AW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	W11219370 Whirlpool Endcap Panel
1A	W11219664 Whirlpool Endcap Panel
1C	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3A	W11234434 Whirlpool Control Panel
3B	W11231628 Whirlpool Control Panel
3	W11234436 Whirlpool Control Panel
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	WPW10348713-includeCORE Whirlpool WPW10348713 Refrigerator Electronic Control Board + Core
7A	WPW10348712-includeCORE Whirlpool WPW10348712 Refrigerator Electronic Control Board + Core
7C	WPW10475745-includeCORE Whirlpool WPW10475745 Refrigerator Electronic Control Board + Core
7B	WPW10349742-includeCORE Whirlpool WPW10349742 Refrigerator Electronic Control Board + Core
8	W10516577 Whirlpool Bracket Mounting
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W11230932 Whirlpool Bracket Mounting
12	8523412 Whirlpool Mounting Bracket
13	WPW10475149 Whirlpool Spark Module
