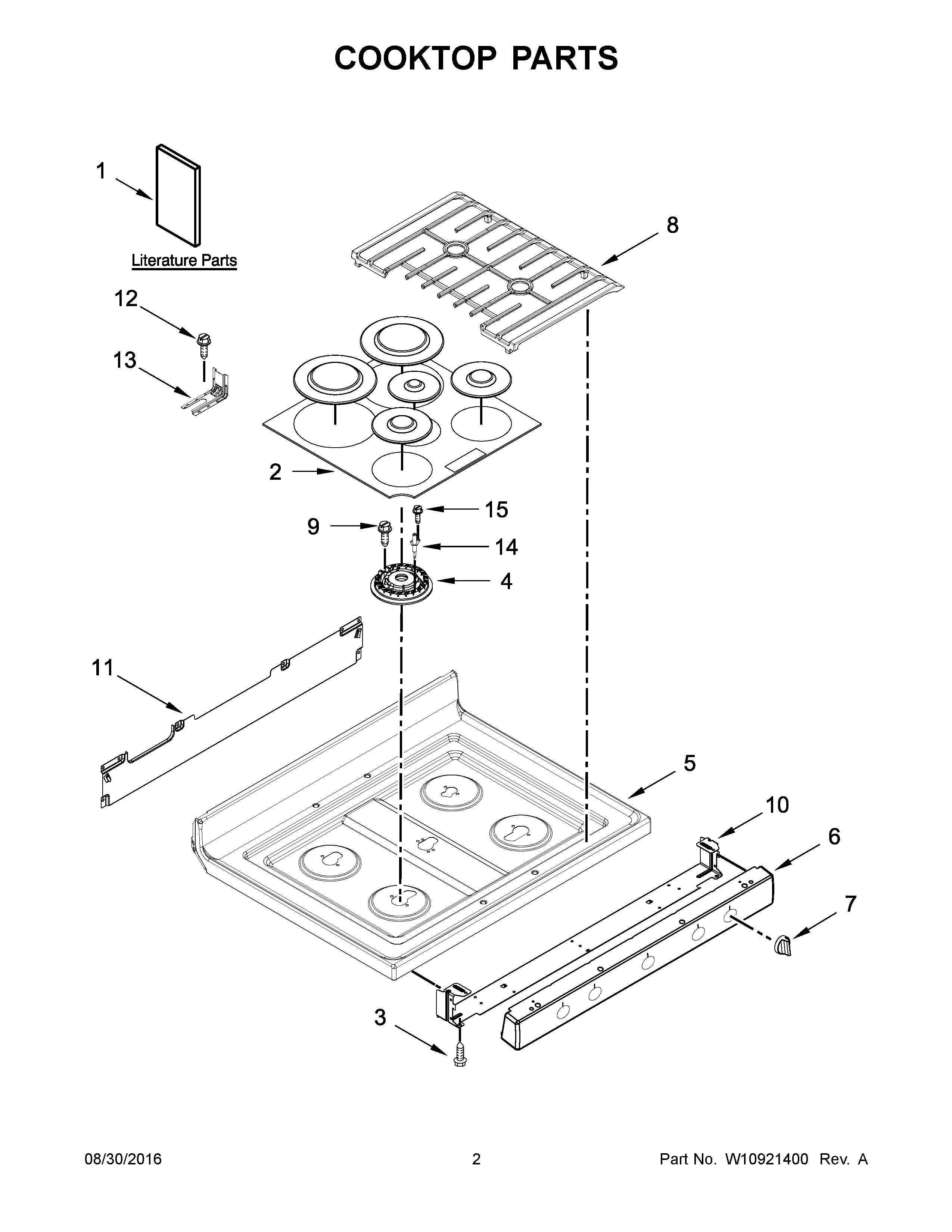

WFG540H0EB1 02 – COOKTOP PARTS

WFG540H0EB1 02 – COOKTOP PARTS

Written by

in

WFG540H0EB1 02 – COOKTOP PARTS

Products

PositionProduct
NI3196896 Whirlpool Clip
NIW10334923 Whirlpool Clip
NIWPW10182767 Whirlpool Wire Tie
NIW10519920 Whirlpool Wire Harness
NI3196696 Whirlpool Clip
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NICABINET (NOT A SERVICEABLE PART)
NIW10809928 Whirlpool Wire Harness
NIW10797420 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
1AGUIDE, USE & CARE
1GQUICK START GUIDE (FRENCH)
1WPL W10553363
1BWPL W10538795
1FGUIDE, QUICK START
1CSHEET, TECH (FRENCH)
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
2AWPW10183372 Whirlpool Burner Cap
2WPW10183374 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4BWPW10515453 Whirlpool Burner Head
4AWPW10515454 Whirlpool Burner Head
4WPW10515455 Whirlpool Burner Head
5AW10457322 Whirlpool Cooktop
5W10457321 Whirlpool Cooktop
6AW10444452 Whirlpool Manifold Panel
6W10444453 Whirlpool Manifold Panel
6BW10330066 Whirlpool Manifold Panel
7BW10766544 Whirlpool Range Stainless Burner Control Knob
7AW11164681 Whirlpool Knob
7W11127716 Whirlpool Knob Assembly
8AKIT, GRATE (WETSTONE (WHITE ICE MODELS))
8W11394363 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10W10534174 Whirlpool Support Bracket
11W10530070 Whirlpool Support Bracket
12W11447673 Whirlpool Range Tip Anchor
13SCREW, ANTI-TIP KIT
14WPW10515459 Whirlpool Surface Igniter
15WP8273062 Whirlpool Screw
