WFG540H0EB1 03 – CONTROL PANEL PARTS

WFG540H0EB1 03 – CONTROL PANEL PARTS

Written by

in

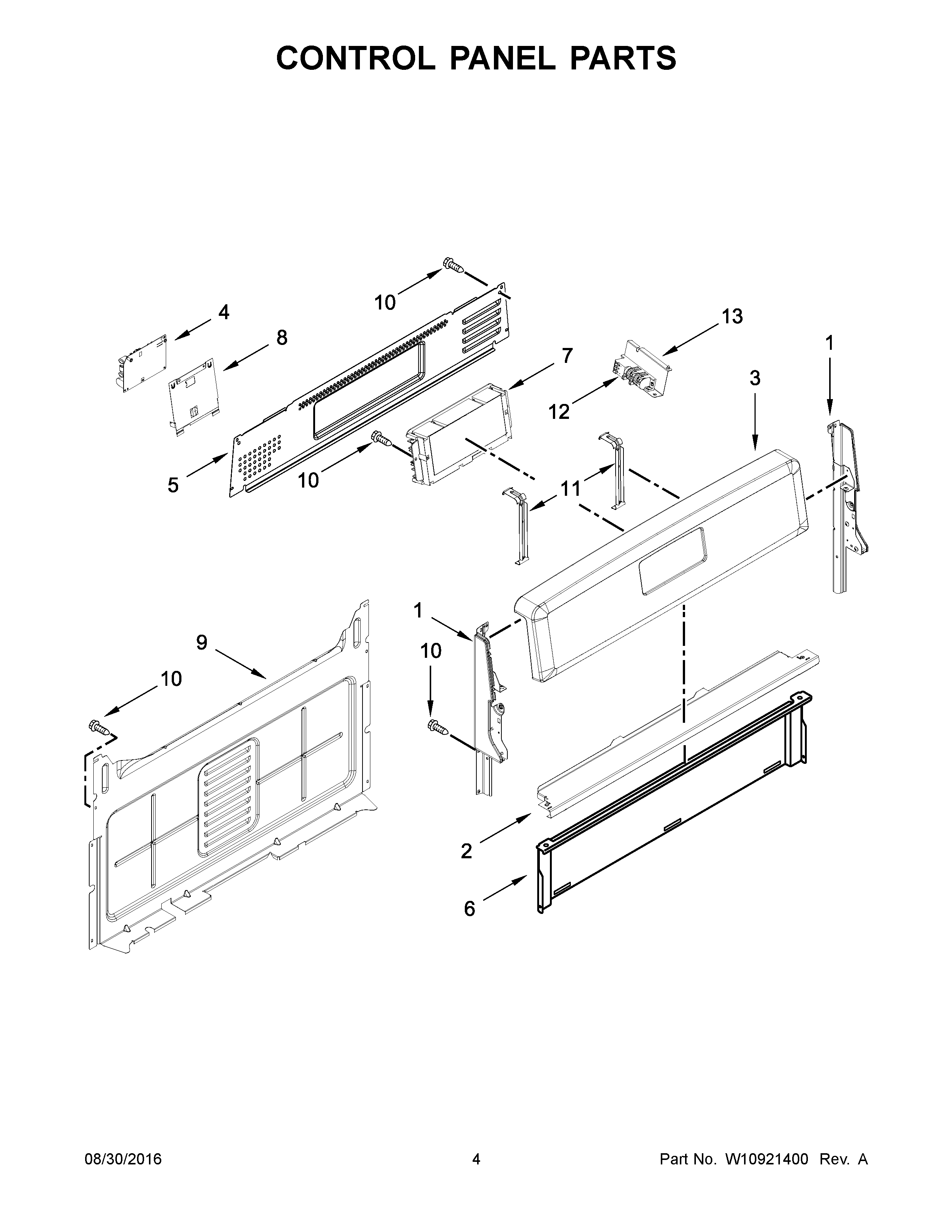

WFG540H0EB1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
1BW11219365 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3W11234434 Whirlpool Control Panel
3BW11231628 Whirlpool Control Panel
3AW11234436 Whirlpool Control Panel
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7AWPW10348713-includeCORE Whirlpool WPW10348713 Refrigerator Electronic Control Board + Core
7WPW10348712-includeCORE Whirlpool WPW10348712 Refrigerator Electronic Control Board + Core
7CWPW10475745-includeCORE Whirlpool WPW10475745 Refrigerator Electronic Control Board + Core
7BWPW10349742-includeCORE Whirlpool WPW10349742 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11W11230932 Whirlpool Bracket Mounting
12WPW10475149 Whirlpool Spark Module
13W10901176 Whirlpool Bracket Assembly
