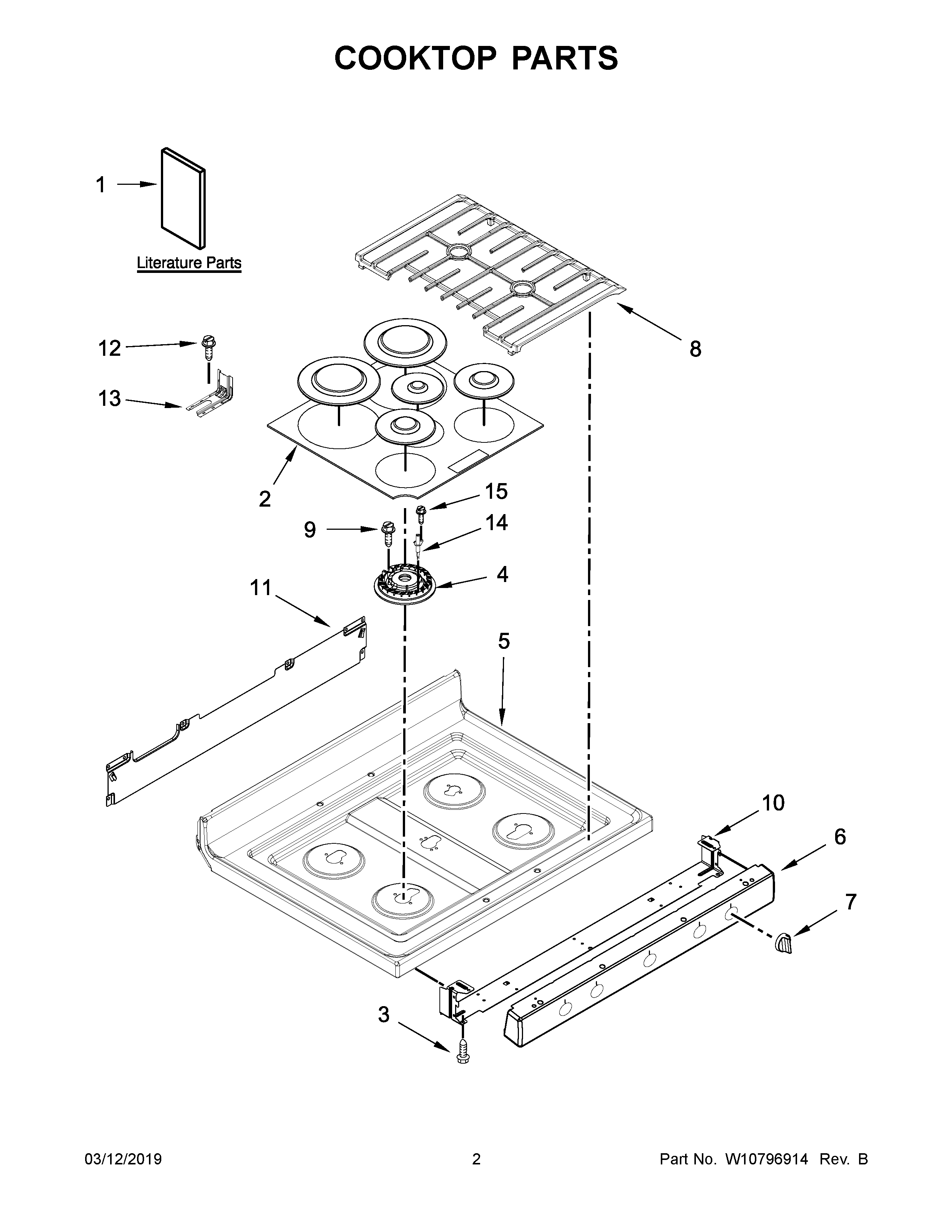

WFG540H0EH0 02 – COOKTOP PARTS

WFG540H0EH0 02 – COOKTOP PARTS

Written by

in

WFG540H0EH0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11161843 Whirlpool Wire Harness
NIW10744212 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NI3196896 Whirlpool Clip
NIW10519952 Whirlpool Wire Harness
NI3196696 Whirlpool Clip
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NICABINET (NOT A SERVICEABLE PART)
NIW10519920 Whirlpool Wire Harness
1DGUIDE, QUICK START
1WPL W10553363
1QUICK START GUIDE (FRENCH)
1AGUIDE, USE & CARE
1CSHEET, TECH (FRENCH)
1BWPL W10538795
2AWPW10183374 Whirlpool Burner Cap
2WPW10183372 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4BWPW10515453 Whirlpool Burner Head
4AWPW10515454 Whirlpool Burner Head
4WPW10515455 Whirlpool Burner Head
5W10457322 Whirlpool Cooktop
5AW10457321 Whirlpool Cooktop
6BW10330066 Whirlpool Manifold Panel
6W10444452 Whirlpool Manifold Panel
6AW10444453 Whirlpool Manifold Panel
7W11164681 Whirlpool Knob
7BW10766544 Whirlpool Range Stainless Burner Control Knob
7AW11127716 Whirlpool Knob Assembly
8AW11394363 Whirlpool Grate Kit
8KIT, GRATE (WETSTONE (WHITE ICE MODELS))
9WP3368921 Whirlpool Screw
10W10534174 Whirlpool Support Bracket
11W10530070 Whirlpool Support Bracket
12SCREW, ANTI-TIP KIT
13W11447673 Whirlpool Range Tip Anchor
14WPW10515459 Whirlpool Surface Igniter
15WP8273062 Whirlpool Screw
