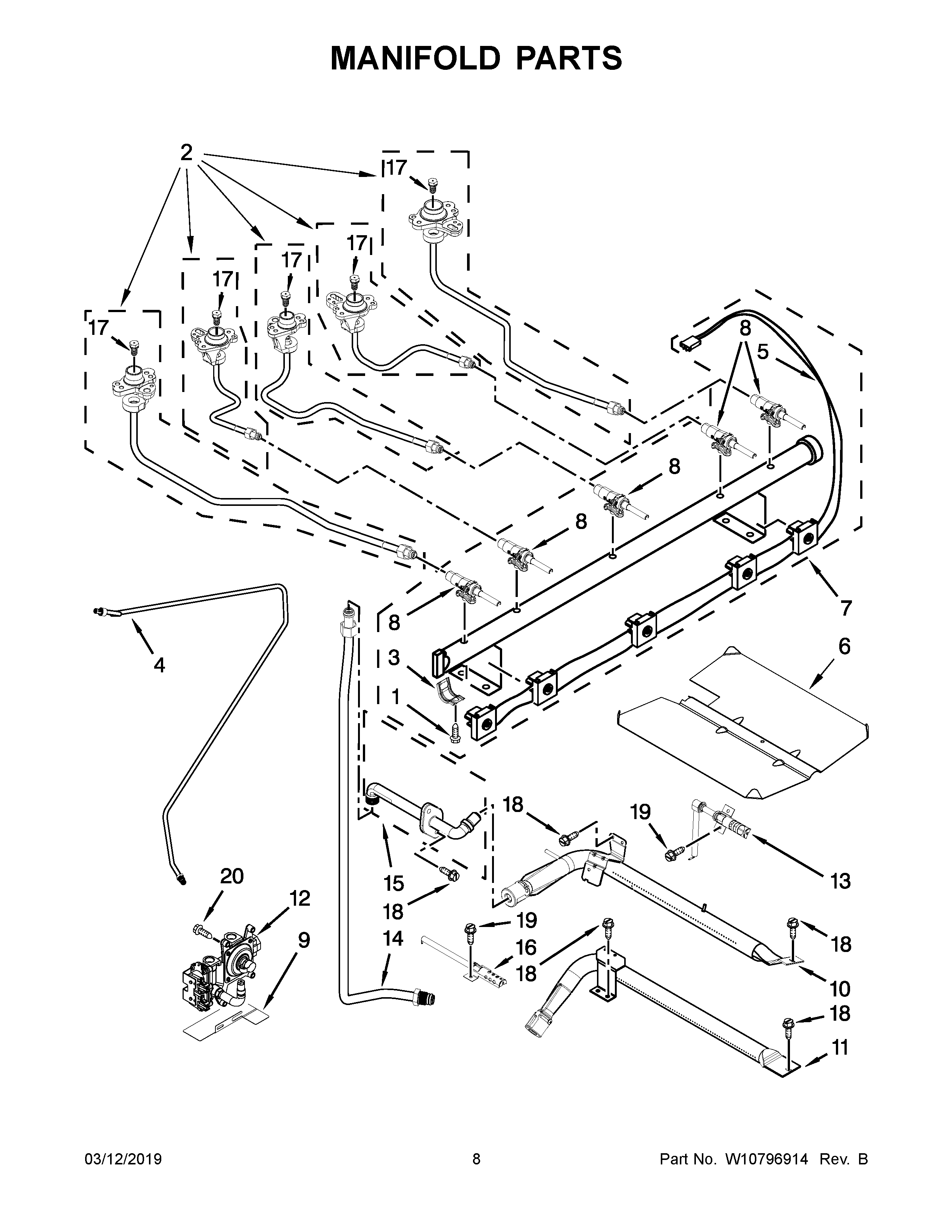

WFG540H0EH0 05 – MANIFOLD PARTSadmin2025-04-26T11:16:14+00:00WFG540H0EH0 05 – MANIFOLD PARTS ProductsPositionProductNIW11087486 Whirlpool Spud OrificeNICABINET (NOT A SERVICEABLE PART)NISPUD-ORFCE1W10295997 Whirlpool Screw2CW11197500 Whirlpool Orifice Holder2W11661950 Whirlpool Orifice Holder2AW10732139 Whirlpool Orifice Holder2DW10732141 Whirlpool Orifice Holder2BW11643127 Whirlpool Orifice Holder3W10949105 Whirlpool Mounting Bracket4W10510125 Whirlpool Gas Tubing5WPW10413868 Whirlpool Wire Harness6BAFFLE, BROIL BURNER7WPW10413870 Whirlpool Manifold Assembly8WPW10279615 Whirlpool Burner Valve8AWPW10279614 Whirlpool Burner Valve8BWPW10247744 Whirlpool Burner Valve9W10224921 Whirlpool Bracket Mounting10W11676566 Whirlpool Range Burner Broiler11W10764654 Whirlpool Oven Burner12W10919226 Whirlpool Regulator13WPW10324262 Whirlpool Oven Igniter14W10306050 Whirlpool Gas Tubing15W10776437 Whirlpool Fitting16WPW10333842 Whirlpool Oven Igniter17AW10732136 Whirlpool Orifice17WPW10347414 Whirlpool Orifice Spud17BWPW10170507 Whirlpool Orifice17DW10251991 Whirlpool Orifice Spud17CW10178934 Whirlpool Orifice Assembly18SCREW19W11684507 Whirlpool Screw20WP3400016 Whirlpool Screw Assembly
