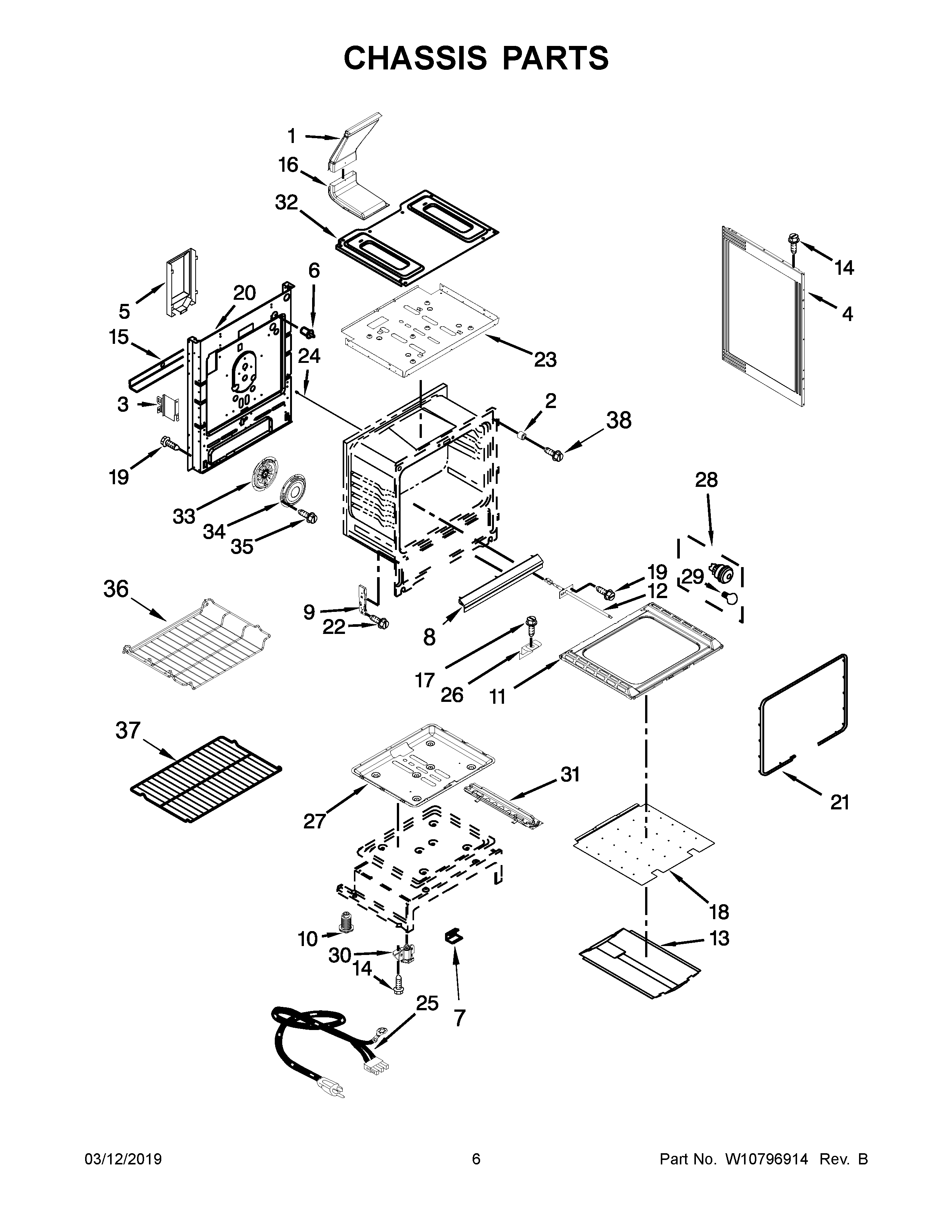

WFG540H0EW0 04 – CHASSIS PARTS

WFG540H0EW0 04 – CHASSIS PARTS

Written by

in

WFG540H0EW0 04 – CHASSIS PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11688566 Whirlpool Insulation
NIW11688362 Whirlpool Insulation
NIINSULATION, STRAP
1W10314347 Whirlpool Oven Flue Assembly
2W10877054 Whirlpool Spacer Assembly
3W10273002 Whirlpool Support Bracket
4WPW10575396 Whirlpool Side Panel
4AW11730303 Whirlpool Side Panel
5W10158780 Whirlpool Rear Cover
6WP9757262 Whirlpool Light Switch
7W10137382 Whirlpool Clip
8W10501599 Whirlpool Gasket
9W10647259 Whirlpool Hinge Receiver
10WPW10058460 Whirlpool Appliance Levelling Leg
11WPW10211368 Whirlpool Oven Bottom
12SENSOR-RANGE
13BAFFLE, BAKE BURNER
15W10435470 Whirlpool Brace
16W11243157 Whirlpool Oven Flue
18W10323077 Whirlpool Burner Baffle
19SCREW
20WPL W10273005
21W11562931 Whirlpool Door Gasket
22W10777162 Whirlpool Screw
23WPW10273195 Whirlpool Heat Shield
24W11370463 Whirlpool Door Rod Assembly
25W11582239 Whirlpool Range Power Cord
26W10035900 Whirlpool Support Bracket
27W11379356 Whirlpool Hidden Pan Assembly
28W11594027 Whirlpool Range Oven Light Socket
29ABULB-LIGHT
29RANGE ONLY 40W 120V APPL BULB
30WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31WPW10306546 Whirlpool Base Rail
32W11379351 Whirlpool Burner Box
33WPW10389555 Whirlpool Convection Fan
34WPW10346154 Whirlpool Cover Assembly
36WPW10289145 Whirlpool Oven Rack
37WPW10531060 Whirlpool Oven Rack
38W11169708 Whirlpool Screw
