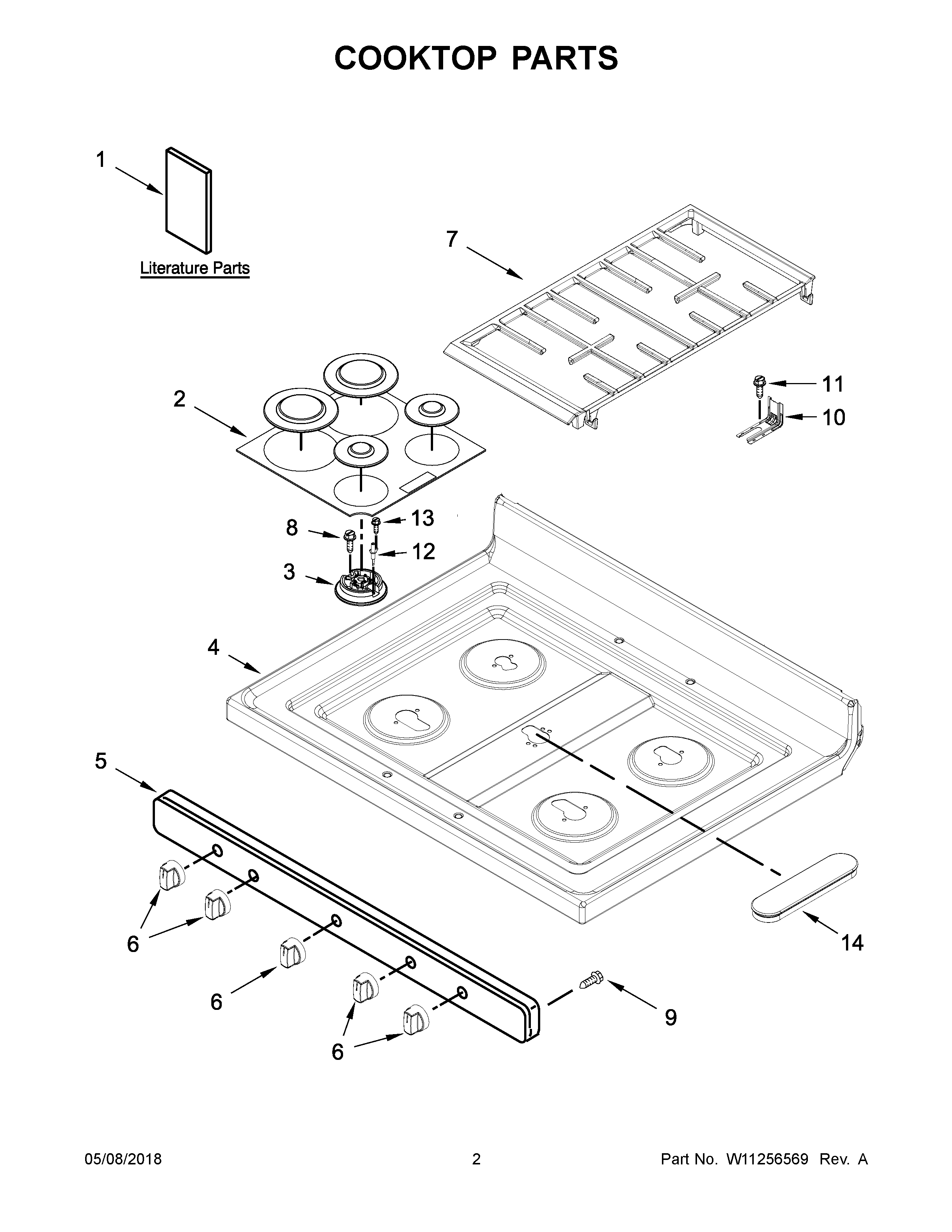

WFG550S0HB1 02 – COOKTOP PARTS

WFG550S0HB1 02 – COOKTOP PARTS

Written by

in

WFG550S0HB1 02 – COOKTOP PARTS

Products

PositionProduct
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NIW11161843 Whirlpool Wire Harness
NIW10849001 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
NIW10809927 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
1BSHEET, TECH (ENGLISH)
1CDIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION
1AGUIDE, USE AND CARE
2W10881749 Whirlpool Burner Cap
3AWPW10515454 Whirlpool Burner Head
3WPW10515455 Whirlpool Burner Head
3BWPW10515453 Whirlpool Burner Head
4W11032119 Whirlpool Cooktop
4AW11040043 Whirlpool Cooktop
5AW11089577 Whirlpool Manifold Panel
5W11159628 Whirlpool Manifold Panel
6W11159631 Whirlpool Knob Assembly
6AW11023142 Whirlpool Knob
7W11252165 Whirlpool Burner Grate
8WP3368921 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12WPW10515459 Whirlpool Surface Igniter
13WP8273062 Whirlpool Screw
14W11162114 Whirlpool Top Burner Assembly
