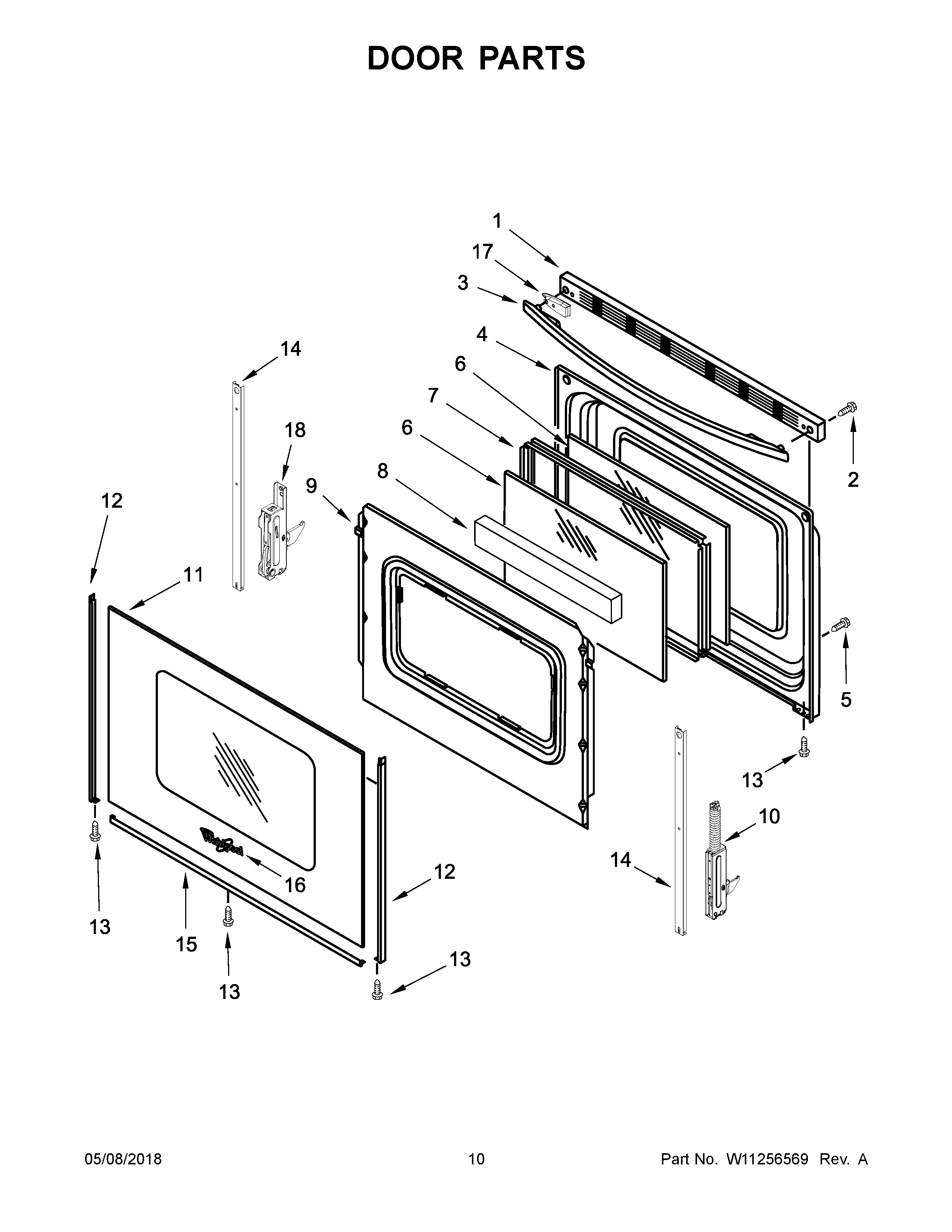

WFG550S0HB1 06 – DOOR PARTS

WFG550S0HB1 06 – DOOR PARTS

Written by

in

WFG550S0HB1 06 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
1AW10817433 Whirlpool Vent Trim
2W10831019 Whirlpool Stove Door Screw
3W11107394 Whirlpool Door Handle
3AW11107407 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6W11159620 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11AWPW10409945 Whirlpool Glass Door
11W11702167 Whirlpool Door Glass
12BWP8523172 Whirlpool Left Door Trim
12CWP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12AW10761014 Whirlpool Right Door Trim
13WP355214 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WP8523177 Whirlpool Door Trim Assembly
15AWP8523175 Whirlpool Door Trim Assembly
16W11178521 Whirlpool Dishwasher Nameplate
17BW11590861 Whirlpool Door Handle
17STANDOFF, HANDLE (BLACK)
18WPW10299227 Whirlpool Range Door Hinge
