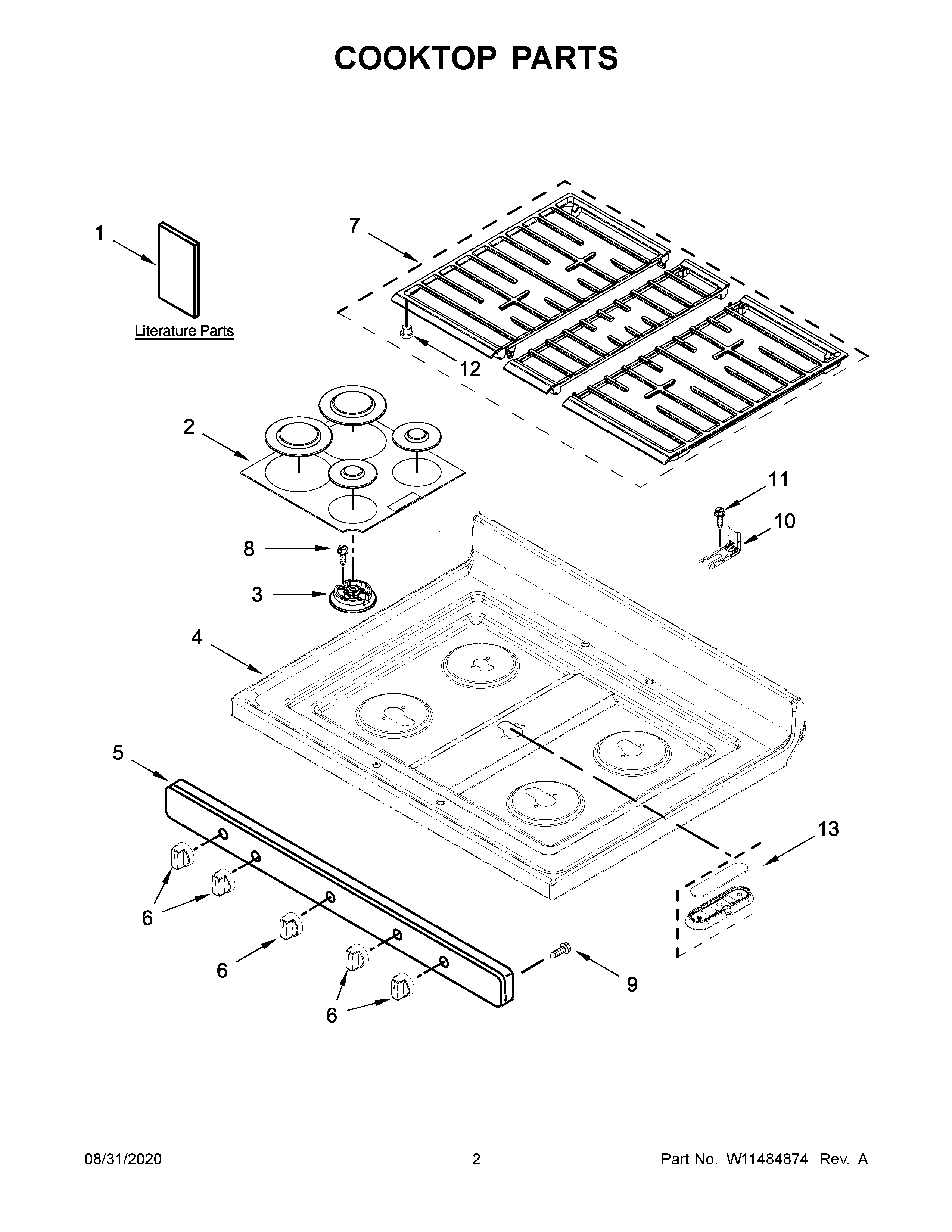

WFG550S0HB2 02 – COOKTOP PARTS

WFG550S0HB2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10849001 Whirlpool Wire Harness
NIW11161843 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIW10334923 Whirlpool Clip
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
1CDIAGRAM, WIRING
1BSHEET, TECH (ENGLISH)
2W11605759 Whirlpool Burner Cap
3BW11435657 Whirlpool Burner Head
3AW11435659 Whirlpool Burner Head
3W11435630 Whirlpool Oven Burner Head
4W11454367 Whirlpool Cooktop
4AW11478143 Whirlpool Cooktop Assembly
5AW11089577 Whirlpool Manifold Panel
5W11159628 Whirlpool Manifold Panel
6W11159631 Whirlpool Knob Assembly
6AW11023142 Whirlpool Knob
7W11252165 Whirlpool Burner Grate
8W11241230 Whirlpool Screw
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12W10919249 Whirlpool Burner Grate Foot
13W11435660 Whirlpool Burner Head
