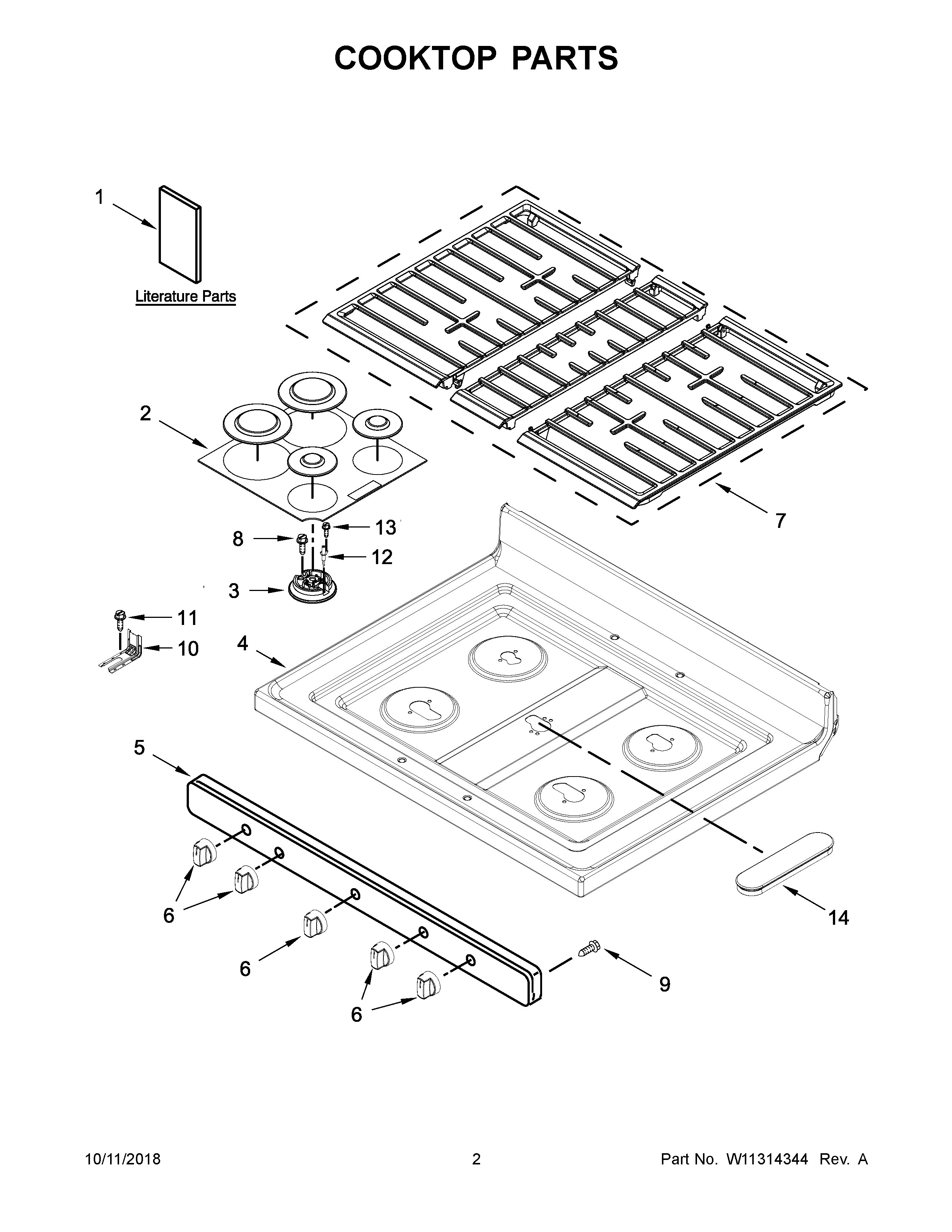

WFG550S0HV1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11161843 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10849001 Whirlpool Wire Harness
NI	W10809927 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
1B	SHEET, TECH (ENGLISH)
1C	DIAGRAM, WIRING
1	INSTALLATION INSTRUCTIONS
1A	GUIDE, USE AND CARE
2	W10881749 Whirlpool Burner Cap
3A	WPW10515454 Whirlpool Burner Head
3	WPW10515455 Whirlpool Burner Head
3B	WPW10515453 Whirlpool Burner Head
4	W11032119 Whirlpool Cooktop
5A	W11165142 Whirlpool Manifold Panel
5	W11165140 Whirlpool Manifold Panel
6A	KNOB
6	KNOB
7	W11252165 Whirlpool Burner Grate
8	WP3368921 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12B	W11447374 Whirlpool Surface Igniter
12A	WPW10515459 Whirlpool Surface Igniter
13	W11241230 Whirlpool Screw
14	W11162114 Whirlpool Top Burner Assembly
