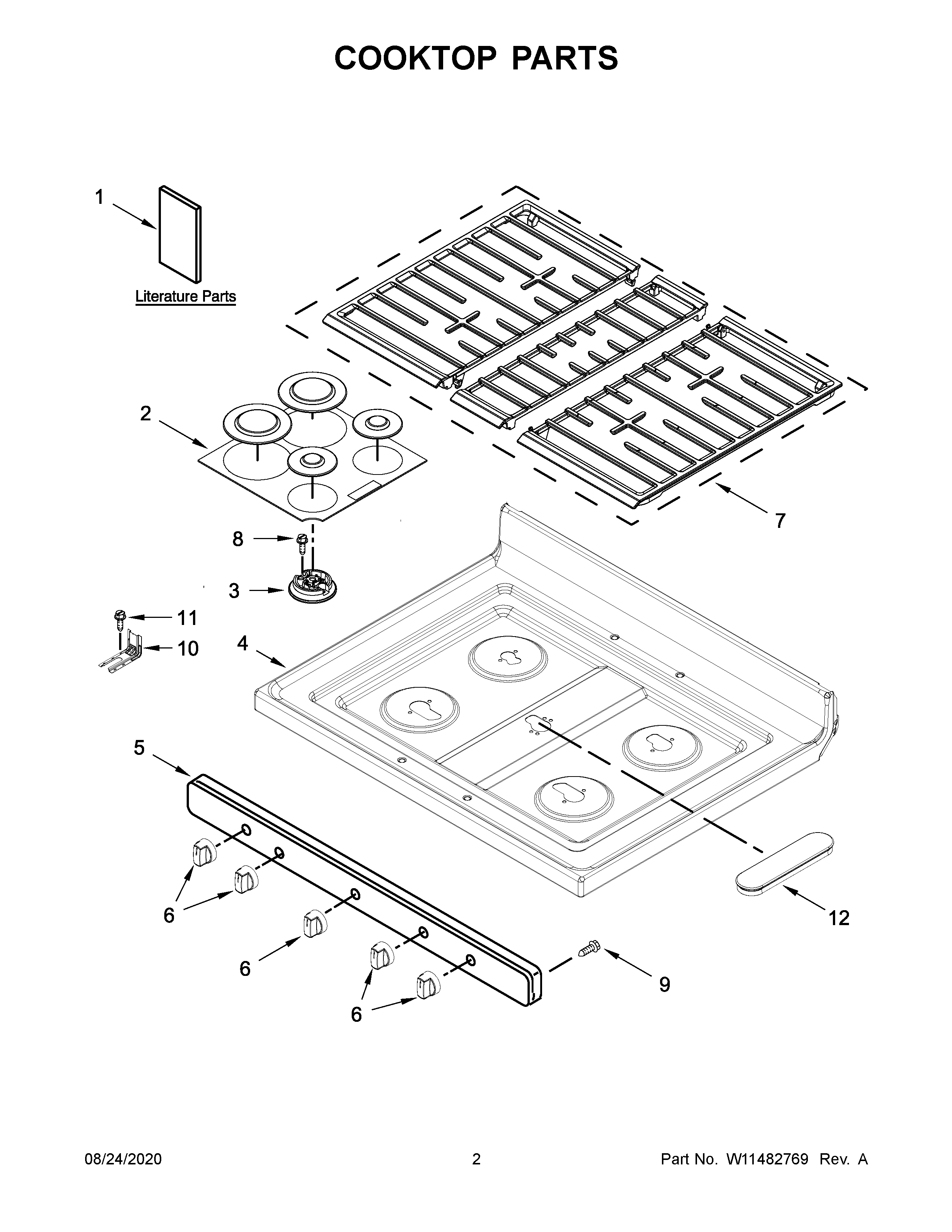

WFG550S0HV2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	3196896 Whirlpool Clip
NI	W10849001 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W10334923 Whirlpool Clip
1	INSTALLATION INSTRUCTIONS
1C	DIAGRAM, WIRING
1B	SHEET, TECH (ENGLISH)
1A	USE AND CARE GUIDE
2	W11605759 Whirlpool Burner Cap
3	W11435630 Whirlpool Oven Burner Head
3B	W11435657 Whirlpool Burner Head
3A	W11435659 Whirlpool Burner Head
4	W11454367 Whirlpool Cooktop
5	W11165142 Whirlpool Manifold Panel
6	KNOB
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W11435660 Whirlpool Burner Head
