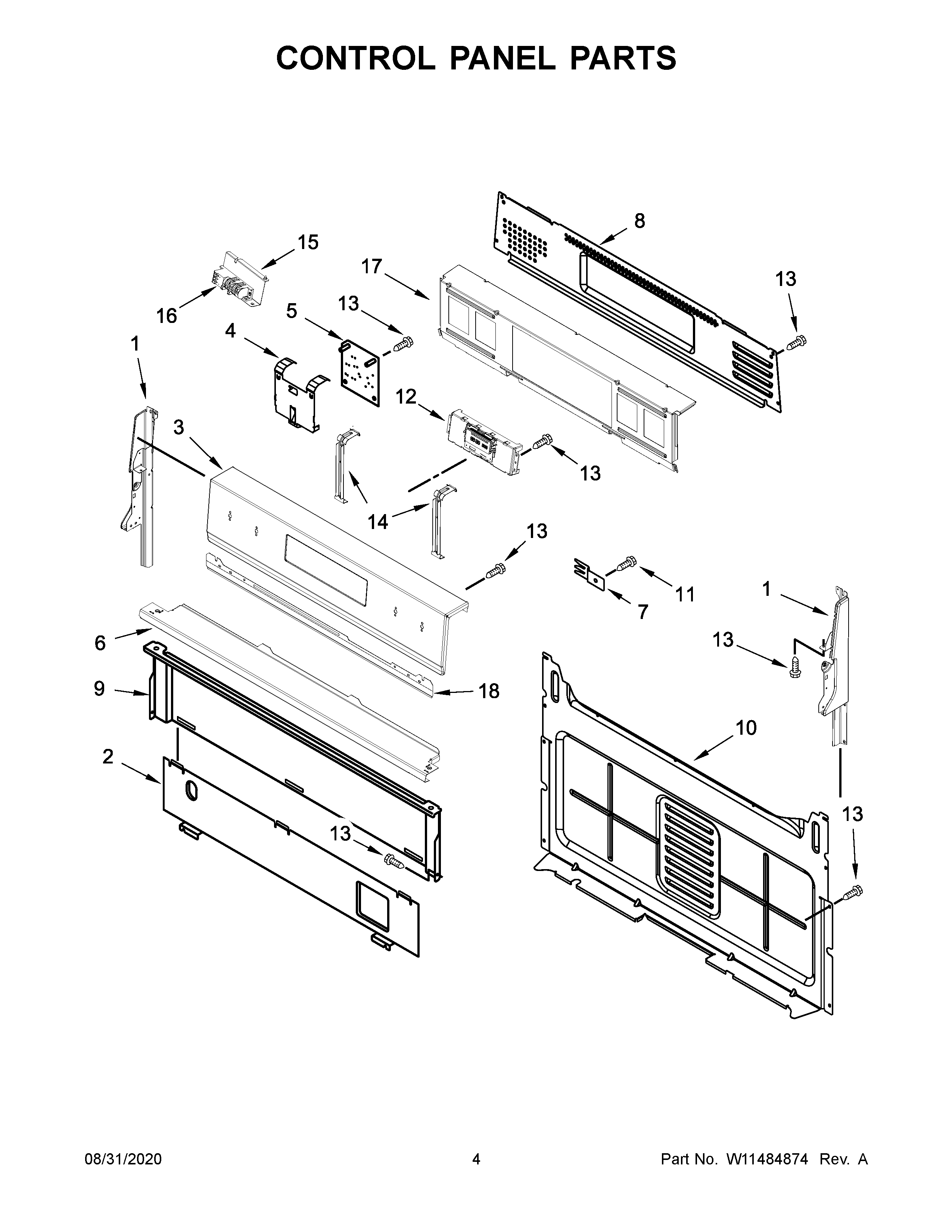

WFG550S0HW2 03 – CONTROL PANEL PARTS

WFG550S0HW2 03 – CONTROL PANEL PARTS

Written by

in

WFG550S0HW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11213292 Whirlpool Endcap Panel
1CW11259700 Whirlpool Panel End Cap
1BENDCAP (WHITE (LEFT))
1W11213290 Whirlpool Console
28053505 Whirlpool Oven Shield
3PANEL, CONTROL (BLACK)
3AW11539579 Whirlpool Control Panel
4W10762981 Whirlpool Mounting Bracket Assembly
5W11162730 Whirlpool Spark Module
6W10516123 Whirlpool Mounting Bracket
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10W10184251 Whirlpool Rear Cover
11WP3196175 Whirlpool Screw
12AW11258612 Whirlpool Electronic Control Board + Core
12W11258611 Whirlpool Electronic Control Board + Core
13SCREW
14BRACKET, CONTROL
15W10901176 Whirlpool Bracket Assembly
16WPW10475149 Whirlpool Spark Module
17W10901802 Whirlpool Mounting Bracket
18ABRACKET, EYE BROW (WHITE)
18W11443964 Whirlpool Support Bracket
