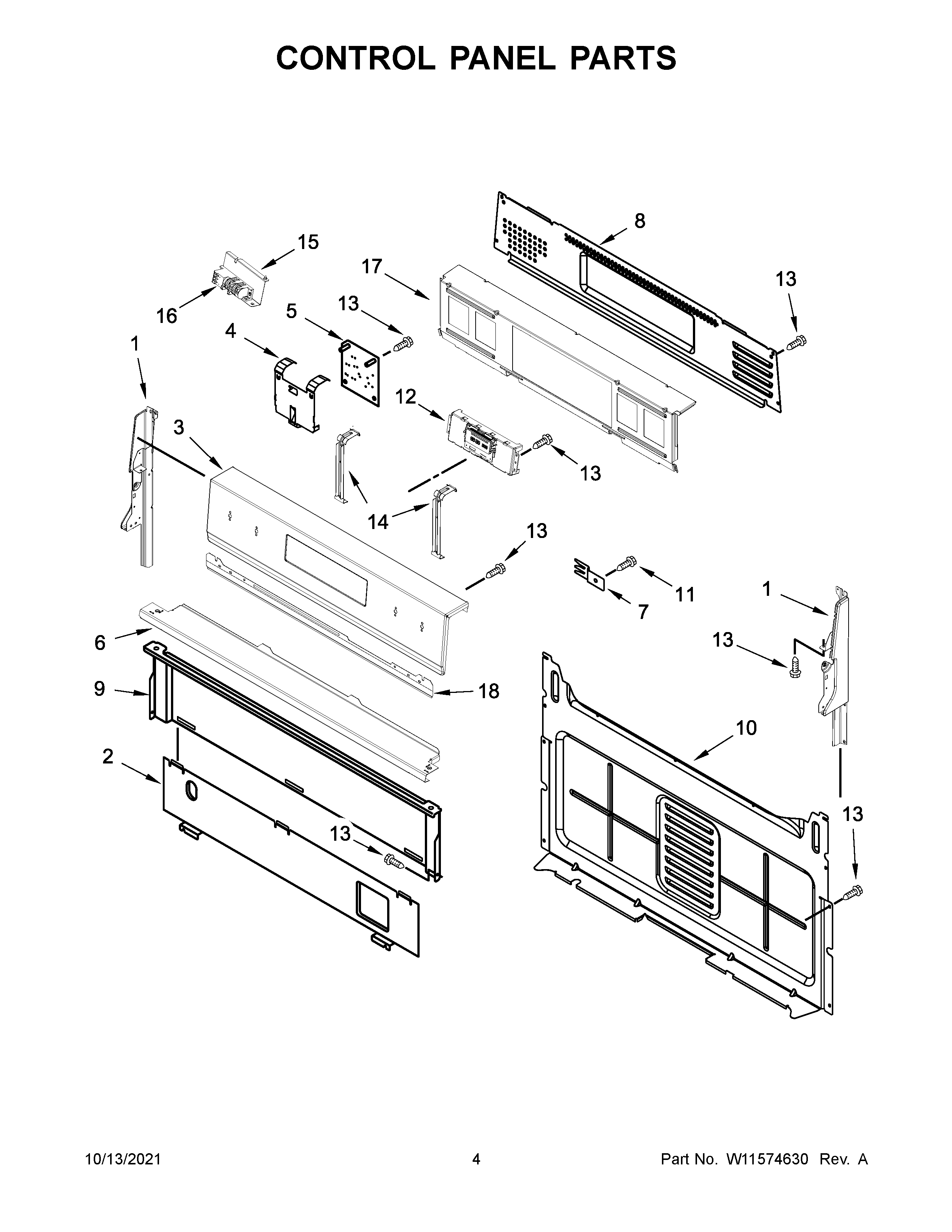

WFG550S0LB1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11213290 Whirlpool Console
1C	W11259700 Whirlpool Panel End Cap
1B	ENDCAP (WHITE (LEFT))
1A	W11213292 Whirlpool Endcap Panel
2	8053505 Whirlpool Oven Shield
3	PANEL, CONTROL (BLACK)
3A	W11539579 Whirlpool Control Panel
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W11162730 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	W10184251 Whirlpool Rear Cover
11	WP3196175 Whirlpool Screw
12	W11548757-includeCORE Whirlpool W11548757 Refrigerator Electronic Control Board + Core
13	SCREW
14	BRACKET, CONTROL
15	W10901176 Whirlpool Bracket Assembly
16	WPW10475149 Whirlpool Spark Module
17	W10901802 Whirlpool Mounting Bracket
18	W11443964 Whirlpool Support Bracket
18A	BRACKET, EYE BROW (WHITE)
