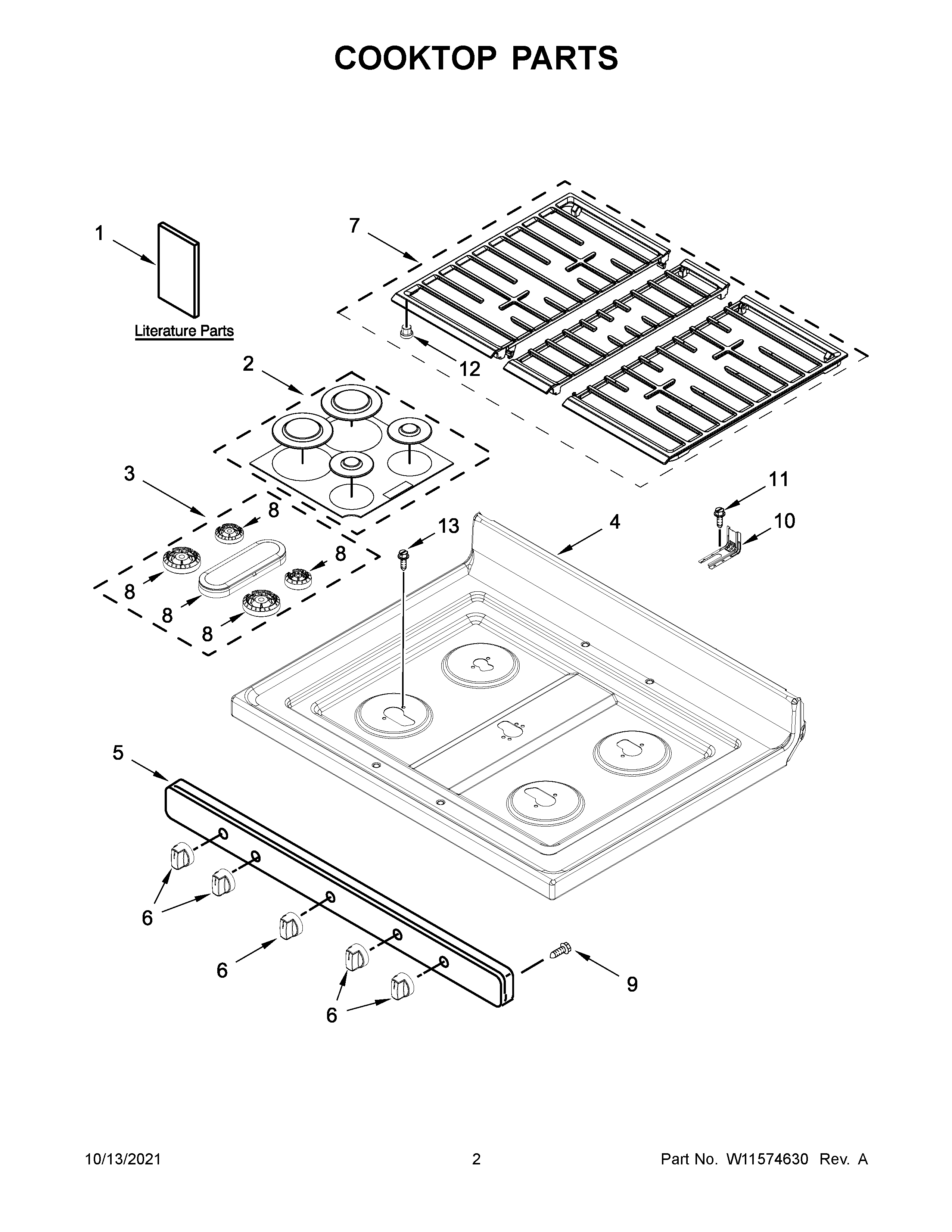

WFG550S0LW1 02 – COOKTOP PARTS

WFG550S0LW1 02 – COOKTOP PARTS

Written by

in

WFG550S0LW1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11453756 Whirlpool Wire Harness
NIW11645866 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NIW11244557 Whirlpool Screw
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
1OWNERS MANUAL
1BTECH SHEET
1AQUICK START GUIDE
2AW10881749 Whirlpool Burner Cap
2W11605759 Whirlpool Burner Cap
3W11575584 Whirlpool Burner Head
4W11454367 Whirlpool Cooktop
4AW11478143 Whirlpool Cooktop Assembly
5AW11089577 Whirlpool Manifold Panel
5W11159628 Whirlpool Manifold Panel
6AW11023142 Whirlpool Knob
6W11159631 Whirlpool Knob Assembly
7W11252165 Whirlpool Burner Grate
8CW11435660 Whirlpool Burner Head
8BW11435657 Whirlpool Burner Head
8AW11435659 Whirlpool Burner Head
8W11435630 Whirlpool Oven Burner Head
9WP3196557 Whirlpool Screw
10W11447673 Whirlpool Range Tip Anchor
11SCREW, ANTI-TIP KIT
12W10919249 Whirlpool Burner Grate Foot
13W11241230 Whirlpool Screw
