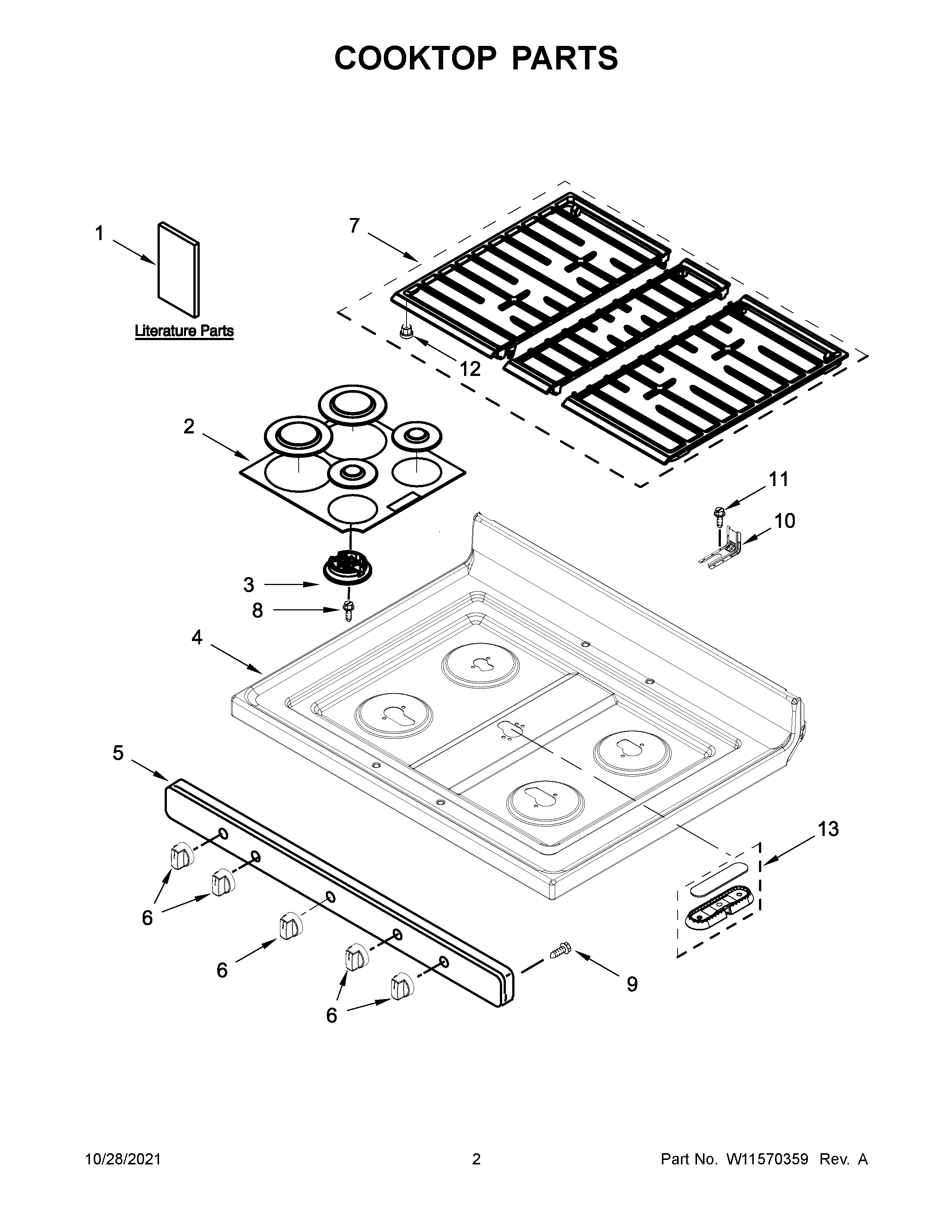

WFG550S0LZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11453756 Whirlpool Wire Harness
NI	W11645866 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNERS MANUAL
2	W11605759 Whirlpool Burner Cap
3B	W11435657 Whirlpool Burner Head
3A	W11435659 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
4	W11454367 Whirlpool Cooktop
5A	W11165142 Whirlpool Manifold Panel
5	W11165140 Whirlpool Manifold Panel
6	KNOB
6A	KNOB
7	W11252165 Whirlpool Burner Grate
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W10919249 Whirlpool Burner Grate Foot
13	W11435660 Whirlpool Burner Head
