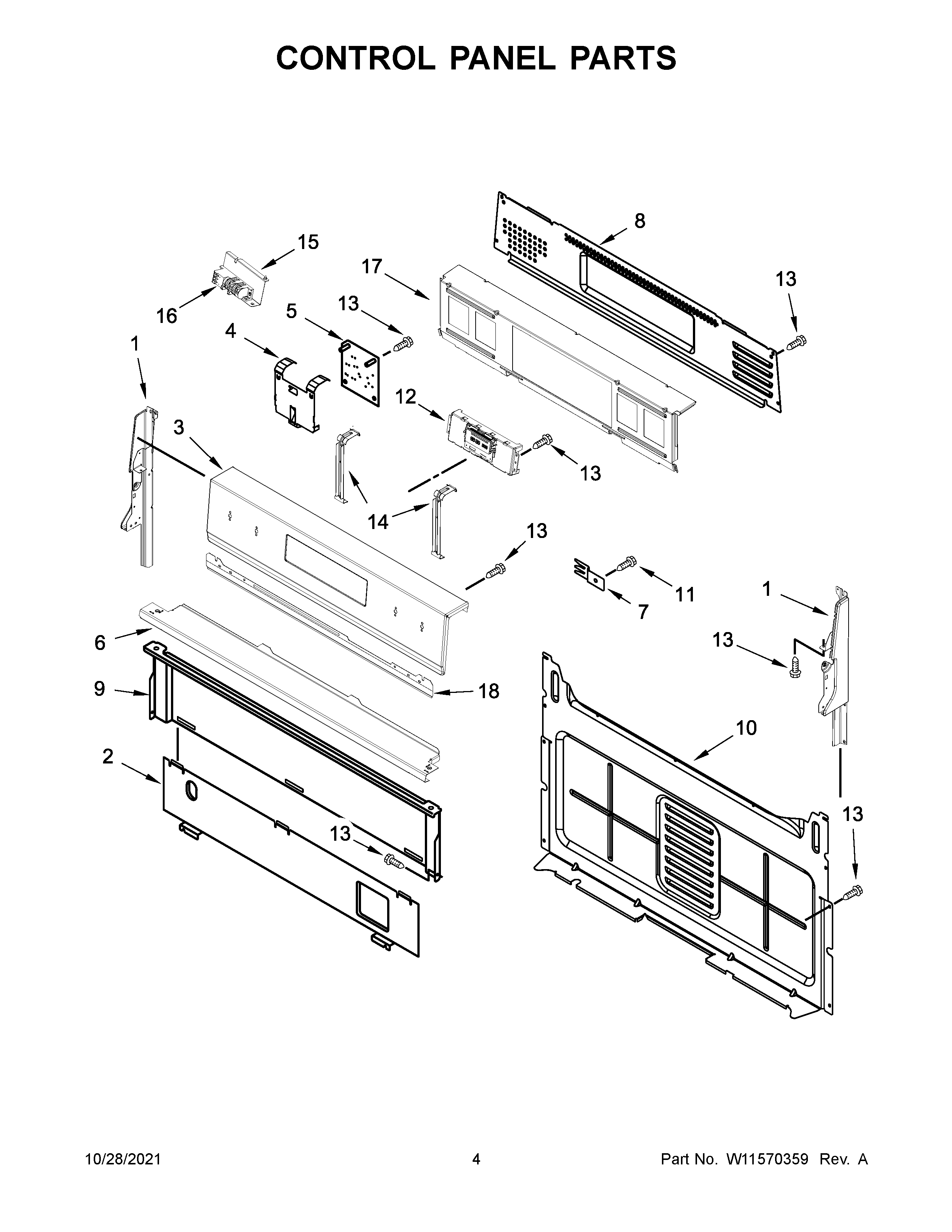

WFG550S0LZ1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11213292 Whirlpool Endcap Panel
1	W11213290 Whirlpool Console
2	8053505 Whirlpool Oven Shield
3A	W11563416 Whirlpool Control Panel
3	W11531750 Whirlpool Control Panel
4	W10762981 Whirlpool Mounting Bracket Assembly
5	W11162730 Whirlpool Spark Module
6	W10516123 Whirlpool Mounting Bracket
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	W10184251 Whirlpool Rear Cover
11	WP3196175 Whirlpool Screw
12	W11548757-includeCORE Whirlpool W11548757 Refrigerator Electronic Control Board + Core
13	SCREW
14	BRACKET, CONTROL
15	W10901176 Whirlpool Bracket Assembly
16	WPW10475149 Whirlpool Spark Module
17	W10901802 Whirlpool Mounting Bracket
18	W11443964 Whirlpool Support Bracket
