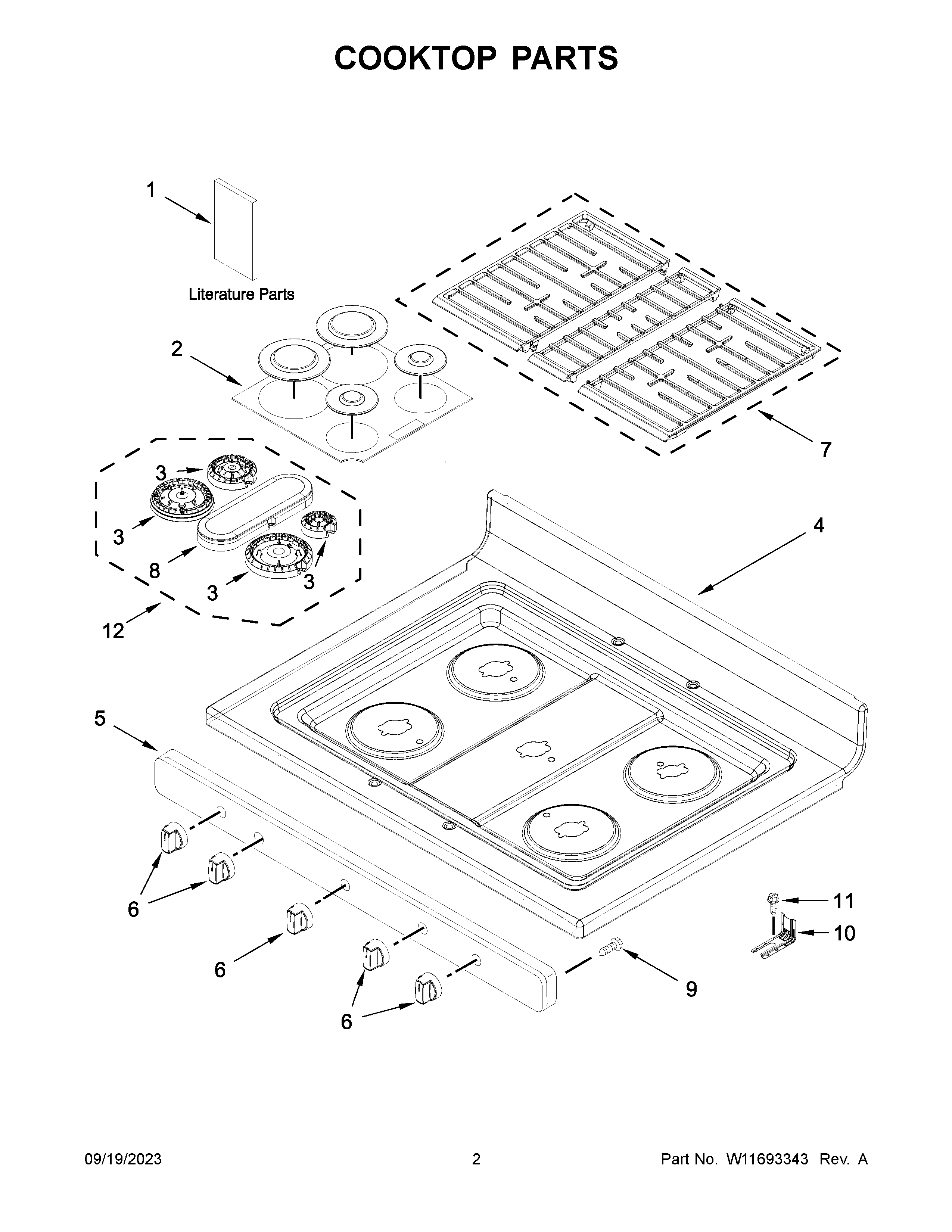

WFG550S0LZ5 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	3196896 Whirlpool Clip
NI	W11645866 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	HARNS-WIRE
1	WIRING DIAGRAM
1C	QUICK START GUIDE
1B	SHEET, TECH (ENGLISH)
1A	OWNERS MANUAL
2	W11605759 Whirlpool Burner Cap
3B	W11435657 Whirlpool Burner Head
3A	W11435659 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
4	W11454367 Whirlpool Cooktop
5	W11165140 Whirlpool Manifold Panel
5A	W11165142 Whirlpool Manifold Panel
6A	W11620736 Whirlpool Knob
6	W11620567 Whirlpool Knob
7	W11252165 Whirlpool Burner Grate
8	W11435660 Whirlpool Burner Head
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W11575584 Whirlpool Burner Head
