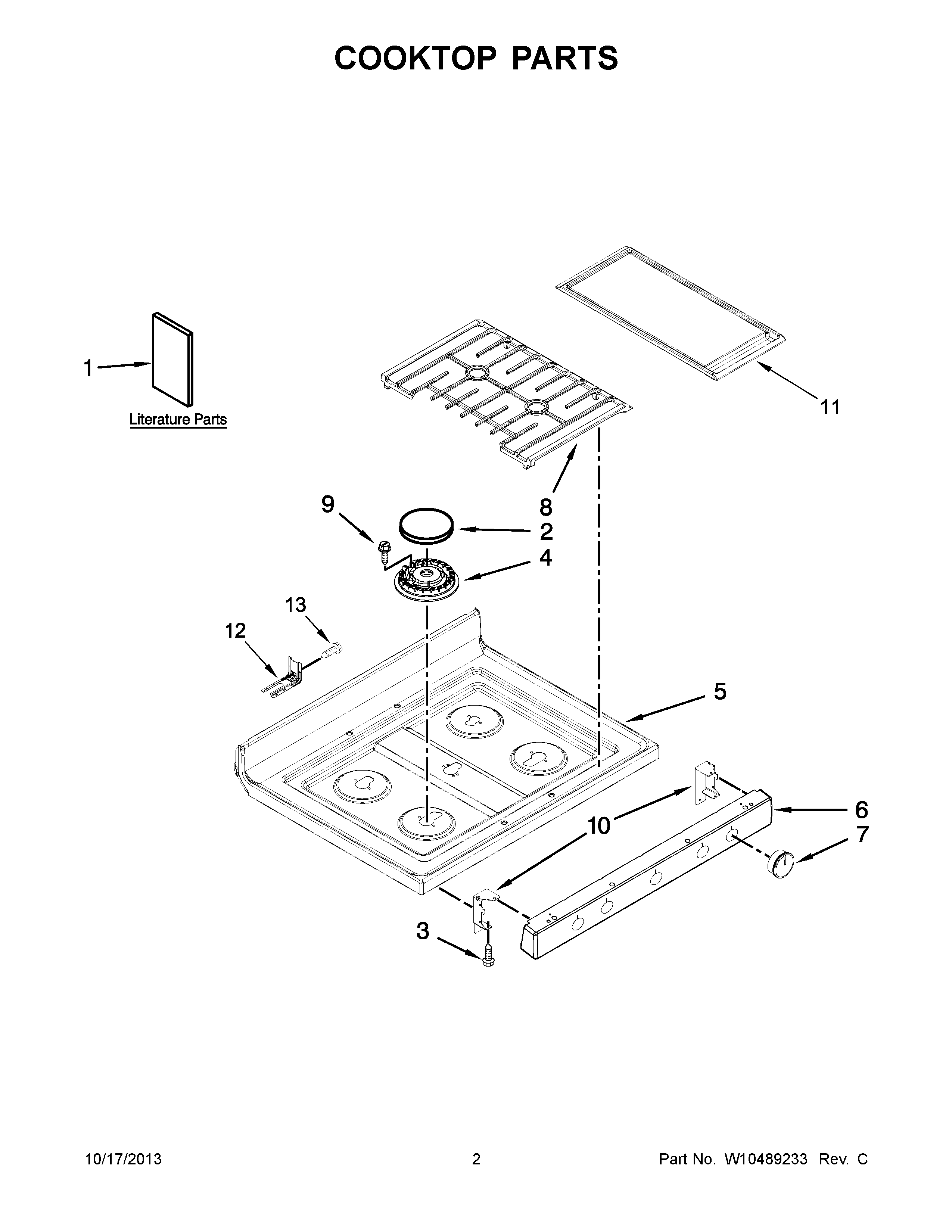

WFG710H0AE0 02 – COOKTOP PARTS

WFG710H0AE0 02 – COOKTOP PARTS

Written by

in

WFG710H0AE0 02 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1GUIDE, USE AND CARE
1TECH SHEET
1WPL W10553363
1GUIDE, QUICK START
2WPW10183372 Whirlpool Burner Cap
2WPW10183374 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4WPW10406878 Whirlpool Burner Base (16K)
4WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
4WPW10406243 Whirlpool Burner Head Auxiliary 6K
5W10457322 Whirlpool Cooktop
5W10457321 Whirlpool Cooktop
6W10444453 Whirlpool Manifold Panel
6W10444452 Whirlpool Manifold Panel
6W10330066 Whirlpool Manifold Panel
7W10766544 Whirlpool Range Stainless Burner Control Knob
7KNOB
8W11394363 Whirlpool Grate Kit
8SET, BURNER GRATE (WETSTONE (WHITE ICE))
9WP3368921 Whirlpool Screw
10W10106419 Whirlpool Support Bracket
10W10289096 Whirlpool Bracket Support
11GRIDDLE
12W11447673 Whirlpool Range Tip Anchor
13SCREW, ANTI-TIP KIT
