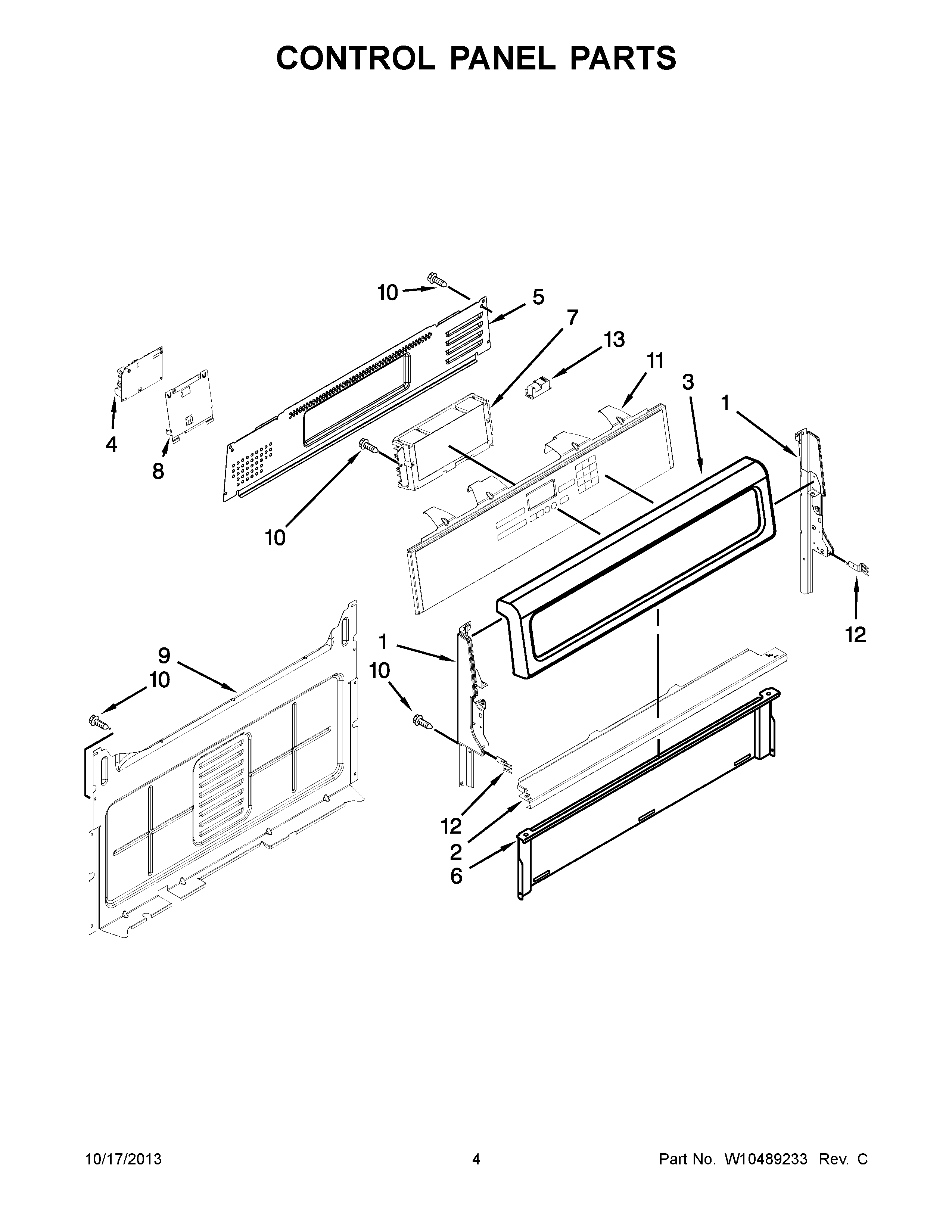

WFG710H0AH0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
2	BRACKET, CONSOLE MOUNTING
3	WPW10318550 Whirlpool Control Panel
3	WPW10318551 Whirlpool Control Panel
3	WPW10318552 Whirlpool Control Panel
4	WPW10331686 Whirlpool Oven Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	WPW10340313-includeCORE Whirlpool WPW10340313 Refrigerator Electronic Control Board + Core
8	W10333917 Whirlpool Bracket Mounting
9	W10184251 Whirlpool Rear Cover
10	SCREW
11	W10678664 Whirlpool Membrane Switch
11	W10678665 Whirlpool Membrane Switch
12	8523412 Whirlpool Mounting Bracket
13	MODULE, SPARK
