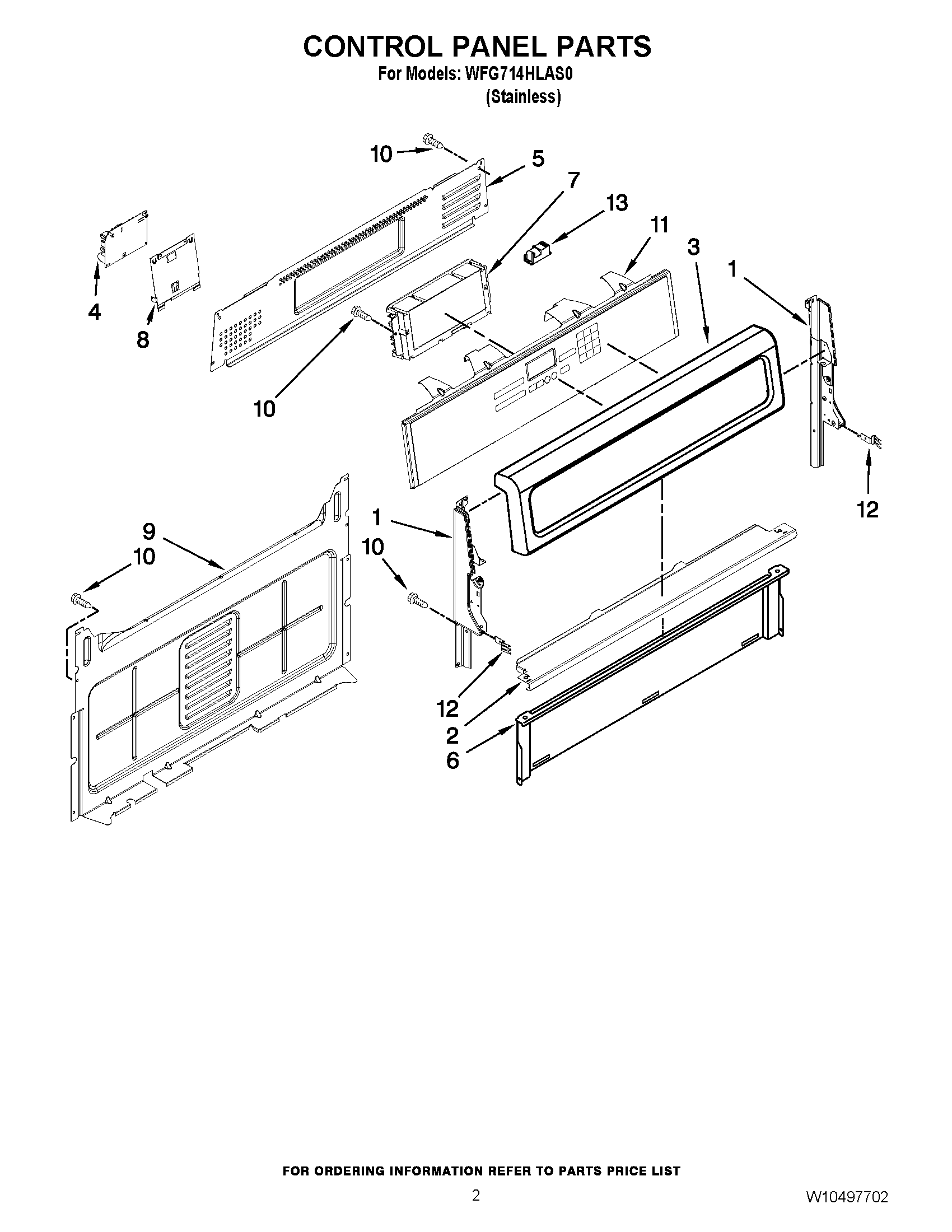

WFG714HLAS0 02 – CONTROL PANEL PARTS

WFG714HLAS0 02 – CONTROL PANEL PARTS

Written by

in

WFG714HLAS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2Brkt-Mntg, Console
3WPW10318550 Whirlpool Control Panel
4WPW10331686 Whirlpool Oven Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10417051-includeCORE Whirlpool WPW10417051 Refrigerator Electronic Control Board + Core
8W10333917 Whirlpool Bracket Mounting
9W10184251 Whirlpool Rear Cover
10SCREW
11W10678665 Whirlpool Membrane Switch
128523412 Whirlpool Mounting Bracket
13MODULE, SPARK
