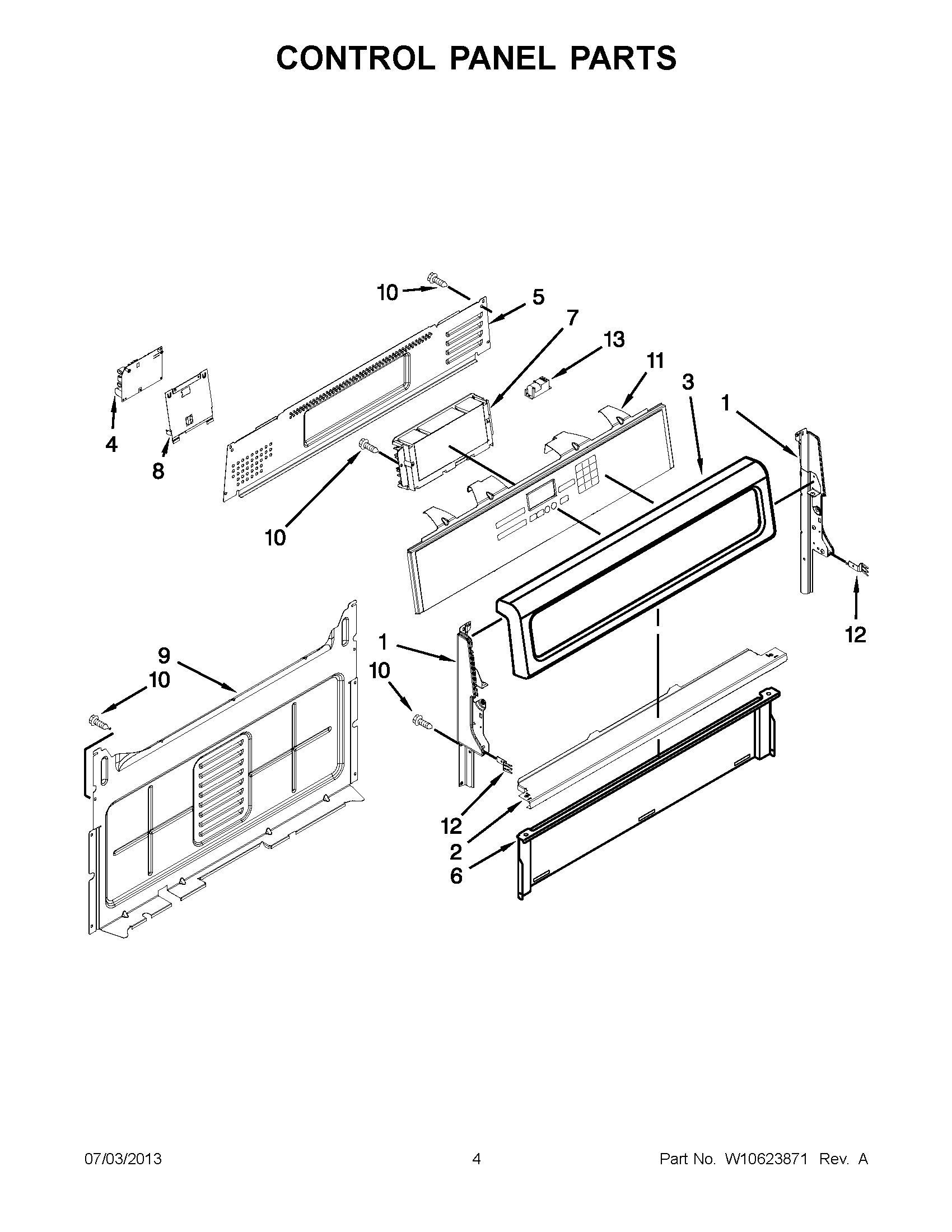

WFG714HLAS1 02 – CONTROL PANEL PARTS

WFG714HLAS1 02 – CONTROL PANEL PARTS

Written by

in

WFG714HLAS1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3WPW10318550 Whirlpool Control Panel
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7WPW10417051-includeCORE Whirlpool WPW10417051 Refrigerator Electronic Control Board + Core
8W10516577 Whirlpool Bracket Mounting
9W10184251 Whirlpool Rear Cover
10SCREW
11W10678665 Whirlpool Membrane Switch
128523412 Whirlpool Mounting Bracket
13WPW10475149 Whirlpool Spark Module
