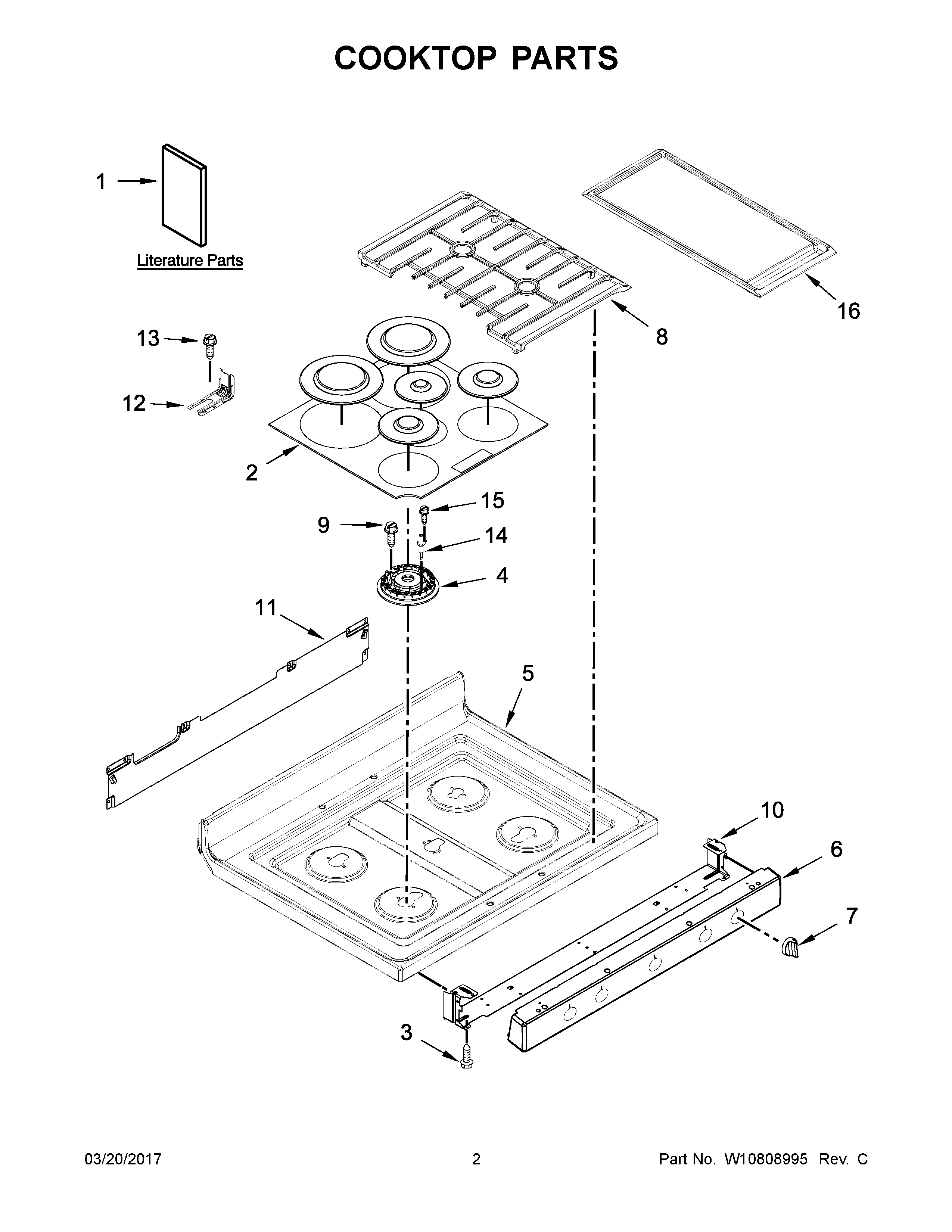

WFG715H0EE0 02 – COOKTOP PARTS

Products

Position	Product
NI	W10738993 Whirlpool Wire Harness
NI	W10519948 Whirlpool Wire Harness
NI	W11161843 Whirlpool Wire Harness
NI	W10324946 Whirlpool Wire Harness
NI	W10519920 Whirlpool Wire Harness
NI	3196896 Whirlpool Clip
NI	3196696 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W10334923 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
1E	Safer Cooking Tips (French)
1G	QUICK START GUIDE (FRENCH)
1C	SHEET, TECH (FRENCH)
1D	SAFER COOKING TIPS (ENGLISH
1A	GUIDE, USE AND CARE
1B	TECH SHEET (ENGLISH)
1	WPL W10553363
1F	GUIDE, QUICK START
2A	WPW10183374 Whirlpool Burner Cap
2	WPW10183372 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4B	WPW10515453 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
5	W10457322 Whirlpool Cooktop
5A	W10457321 Whirlpool Cooktop
6B	W10330066 Whirlpool Manifold Panel
6	W10444452 Whirlpool Manifold Panel
6A	W10444453 Whirlpool Manifold Panel
7	W10766544 Whirlpool Range Stainless Burner Control Knob
8A	W11394363 Whirlpool Grate Kit
8	KIT, GRATE (WETSTONE (WHITE ICE MODELS))
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16	GRIDDLE
