WFG715H0EE1 03 – CONTROL PANEL PARTS
Written by
in

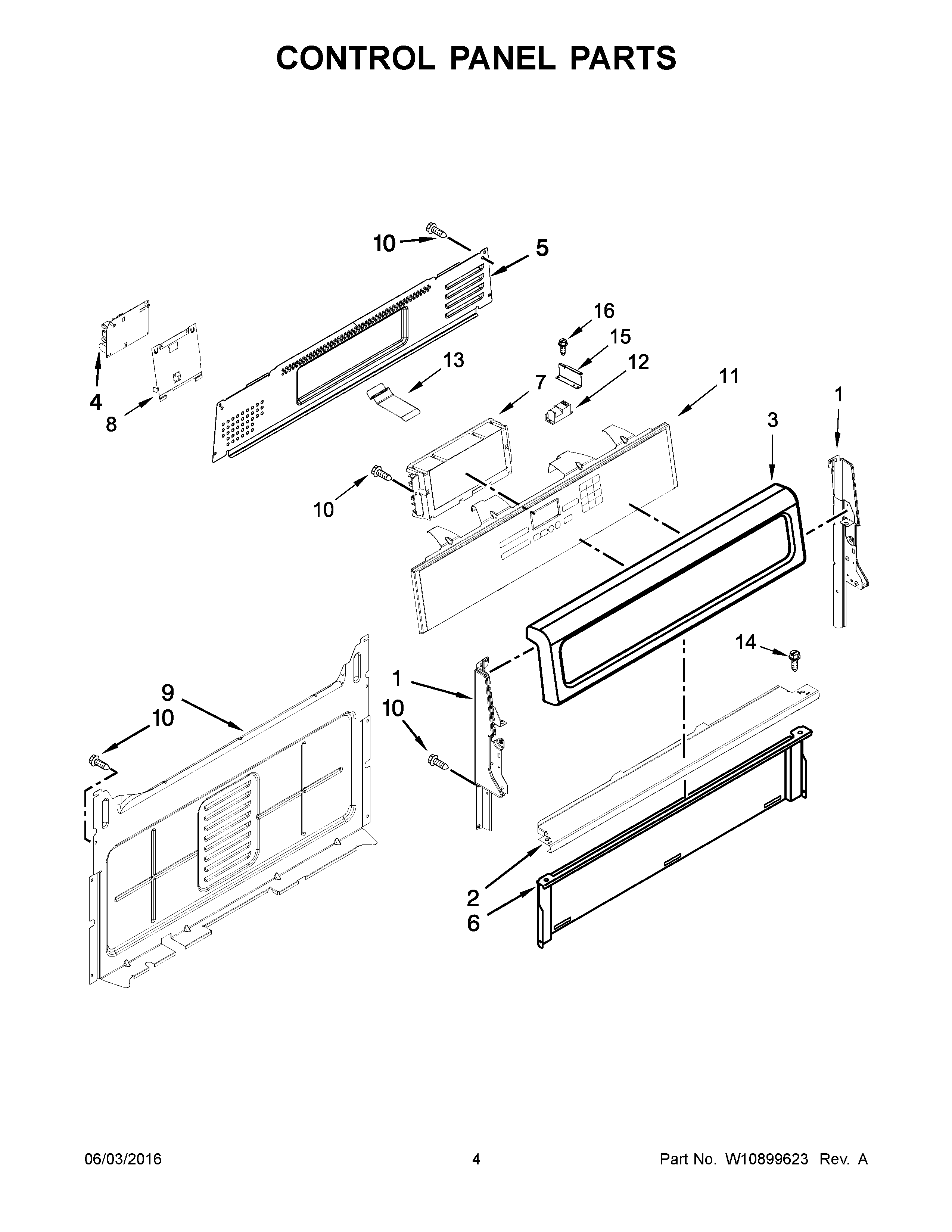

WFG715H0EE1 03 – CONTROL PANEL PARTS
Products
Position
Product
1C
W11219370 Whirlpool Endcap Panel
1
W11219664 Whirlpool Endcap Panel
1B
W11219665 Whirlpool Panel Endcap
1A
W11219365 Whirlpool Panel Endcap
2
W10516123 Whirlpool Mounting Bracket
3B
WPW10318550 Whirlpool Control Panel
3
WPW10318551 Whirlpool Control Panel
3A
WPW10318552 Whirlpool Control Panel
4
WPW10511278 Whirlpool Spark Module
5
W10198745 Whirlpool Rear Cover
6
W10192841 Whirlpool Heat Shield
7
WPW10340317-includeCORE Whirlpool WPW10340317 Refrigerator Electronic Control Board with Core
8
W10762981 Whirlpool Mounting Bracket Assembly
9
W10184251 Whirlpool Rear Cover
10
SCREW
11
W10678666 Whirlpool Membrane Switch
11A
W10730200 Whirlpool Dishwasher Membrane Switch
12
WPW10475149 Whirlpool Spark Module
13
WPW10551614 Whirlpool Clip
14
WP3196557 Whirlpool Screw
15
W10901176 Whirlpool Bracket Assembly
16
W10674068 Whirlpool Screw
←
