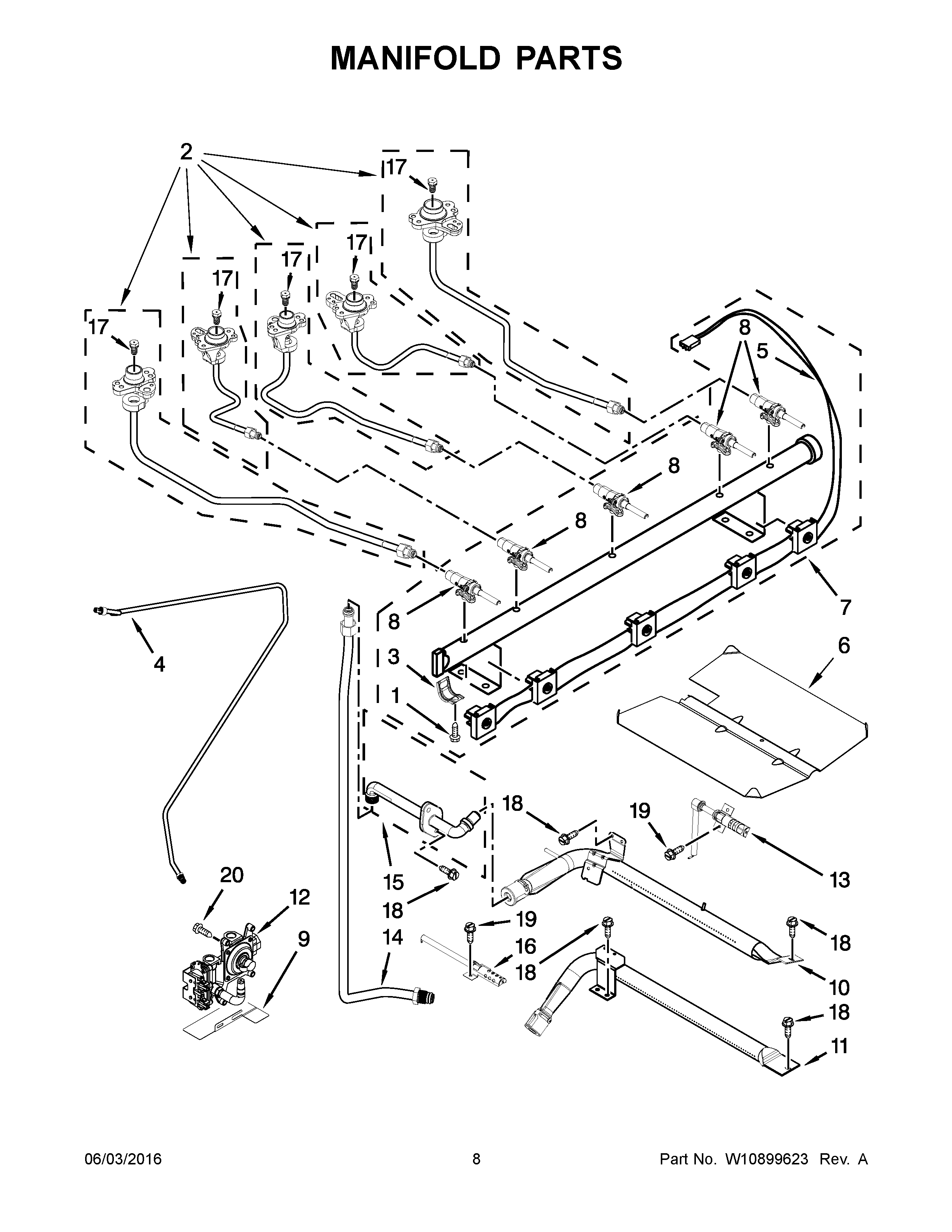

WFG715H0EE1 05 – MANIFOLD PARTS

Products

Position	Product
NI	W11087486 Whirlpool Spud Orifice
NI	CABINET (NOT A SERVICEABLE PART)
1	W10295997 Whirlpool Screw
2C	W11197500 Whirlpool Orifice Holder
2B	W11643127 Whirlpool Orifice Holder
2	W11661950 Whirlpool Orifice Holder
2A	W10732139 Whirlpool Orifice Holder
2D	W10732141 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	W11233074 Whirlpool Wire Harness
6	BAFFLE, BROIL BURNER
7	ASSEMBLY, MANIFOLD
8B	WPW10247744 Whirlpool Burner Valve
8	WPW10279615 Whirlpool Burner Valve
8A	WPW10279614 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	W10919226 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10776437 Whirlpool Fitting
16	WPW10333842 Whirlpool Oven Igniter
17D	W10251991 Whirlpool Orifice Spud
17A	W10732136 Whirlpool Orifice
17	WPW10347414 Whirlpool Orifice Spud
17C	W10178934 Whirlpool Orifice Assembly
17B	WPW10170507 Whirlpool Orifice
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
