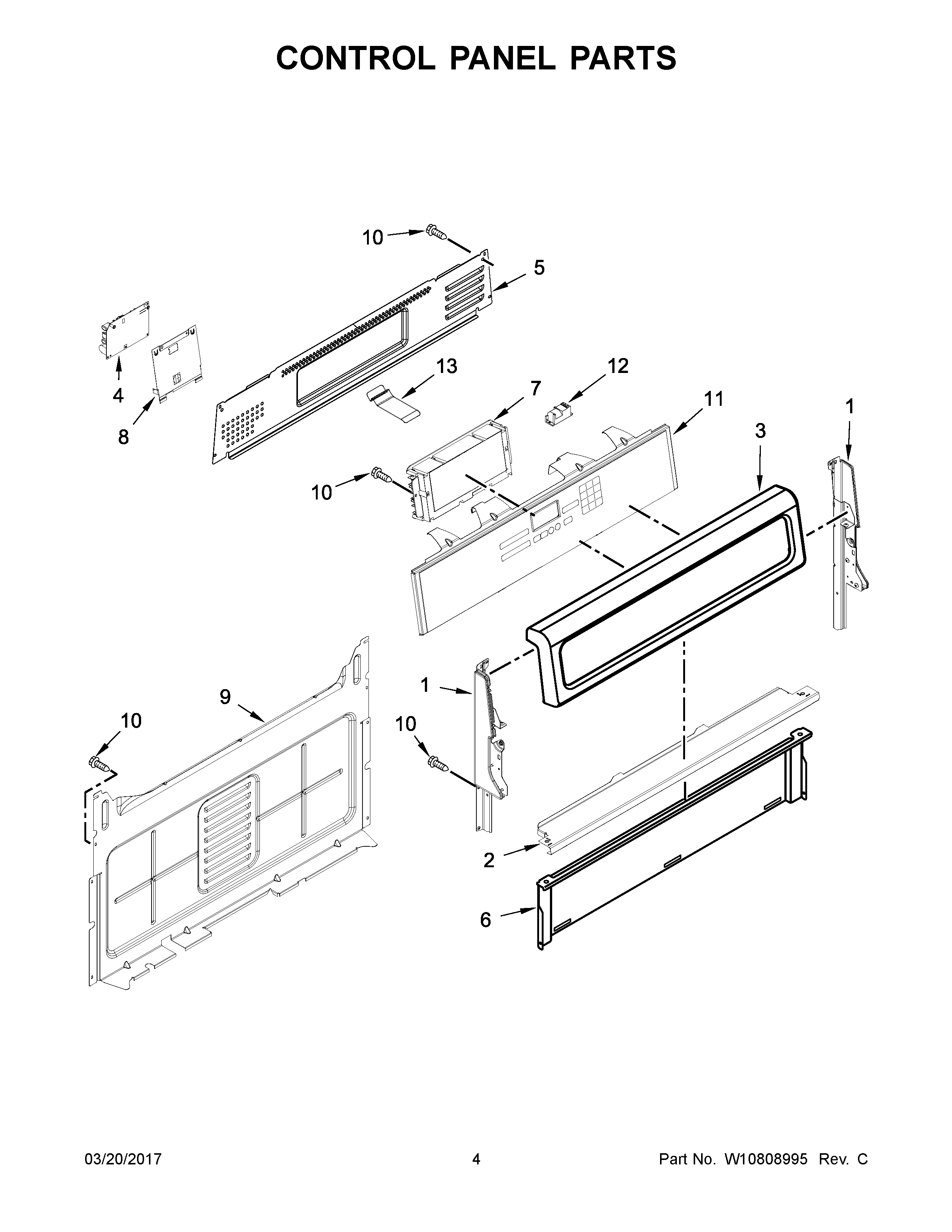

WFG715H0ES0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219365 Whirlpool Panel Endcap
1A	W11219664 Whirlpool Endcap Panel
1C	W11219665 Whirlpool Panel Endcap
1B	W11219370 Whirlpool Endcap Panel
2	W10516123 Whirlpool Mounting Bracket
3A	WPW10318551 Whirlpool Control Panel
3	WPW10318552 Whirlpool Control Panel
3B	WPW10318550 Whirlpool Control Panel
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	WPW10340317-includeCORE Whirlpool WPW10340317 Refrigerator Electronic Control Board with Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11A	W10678666 Whirlpool Membrane Switch
11	W10730200 Whirlpool Dishwasher Membrane Switch
12	WPW10475149 Whirlpool Spark Module
13	WPW10551614 Whirlpool Clip
