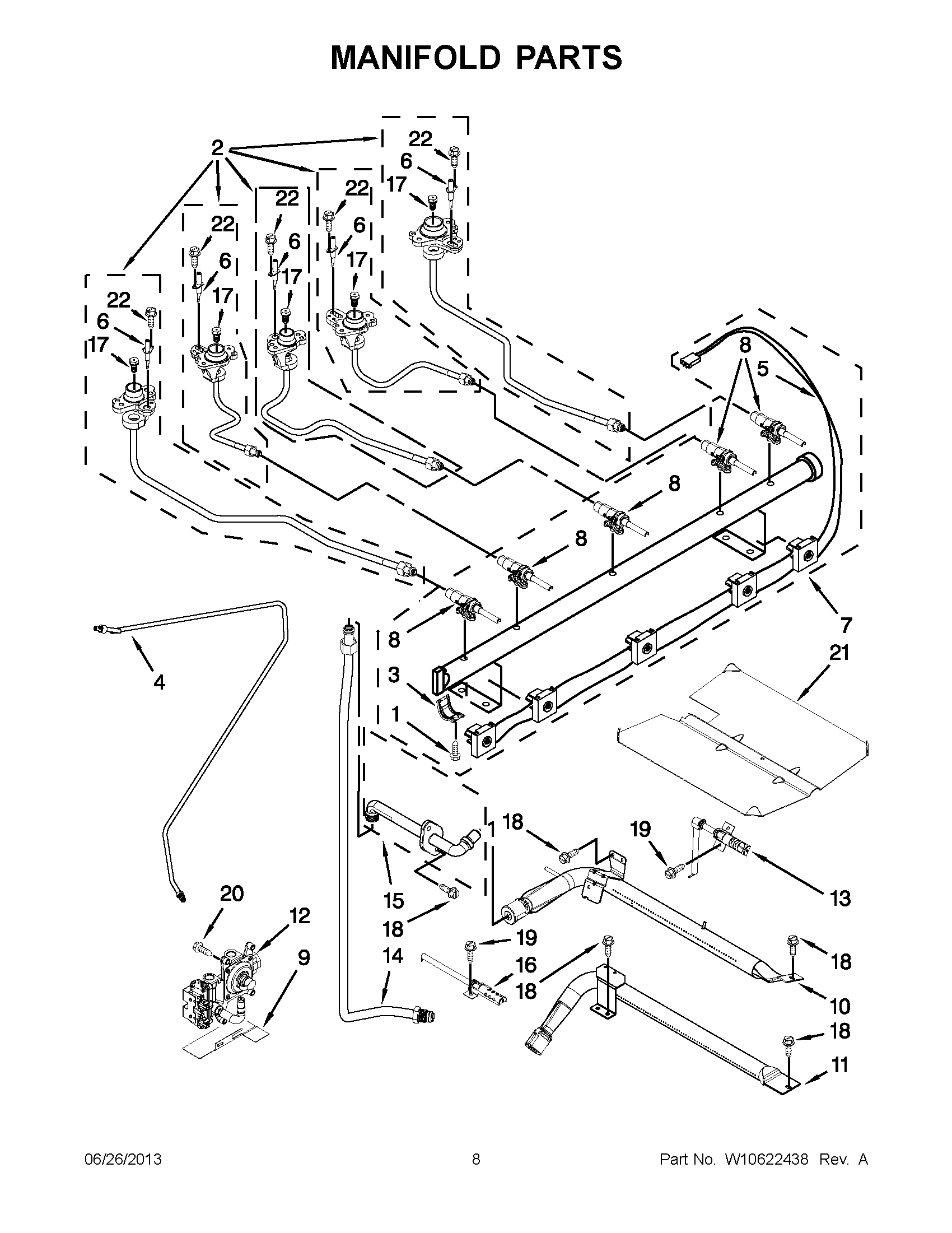

WFG720H0AS1 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUD-ORFCE
NI	WPW10400494 Whirlpool Orifice Assembly
NI	CABINET (NOT A SERVICEABLE PART)
NI	ORIFICE, LP BROIL
1	W10295997 Whirlpool Screw
2	W11700304 Whirlpool Orifice Holder
2	W11700294 Whirlpool Range Orifice Holder
2	W11234417 Whirlpool Surface Burner Orifice Holder
2	W10474170 Whirlpool Orifice Holder
2	W10473935 Whirlpool Orifice Holder
3	W10949105 Whirlpool Mounting Bracket
4	W10510125 Whirlpool Gas Tubing
5	W10413869 Whirlpool Wire Harness
6	WPW10515459 Whirlpool Surface Igniter
7	WPW10413871 Whirlpool Manifold
8	WPW10279615 Whirlpool Burner Valve
8	WPW10279614 Whirlpool Burner Valve
8	WPW10247744 Whirlpool Burner Valve
9	W10224921 Whirlpool Bracket Mounting
10	W11676566 Whirlpool Range Burner Broiler
11	W10764654 Whirlpool Oven Burner
12	WPW10602004 Whirlpool Regulator
13	WPW10324262 Whirlpool Oven Igniter
14	W10306050 Whirlpool Gas Tubing
15	W10583216 Whirlpool Fitting Assembly
16	WPW10333842 Whirlpool Oven Igniter
17	WPW10170506 Whirlpool Orifice Spud
17	WPW10170508 Whirlpool Orifice Spud
17	W10853607 Whirlpool Orifice
17	WPW10170507 Whirlpool Orifice
17	WPW10347414 Whirlpool Orifice Spud
18	SCREW
19	W11684507 Whirlpool Screw
20	WP3400016 Whirlpool Screw Assembly
21	BAFFLE, BROIL BURNER
22	WP8273062 Whirlpool Screw
