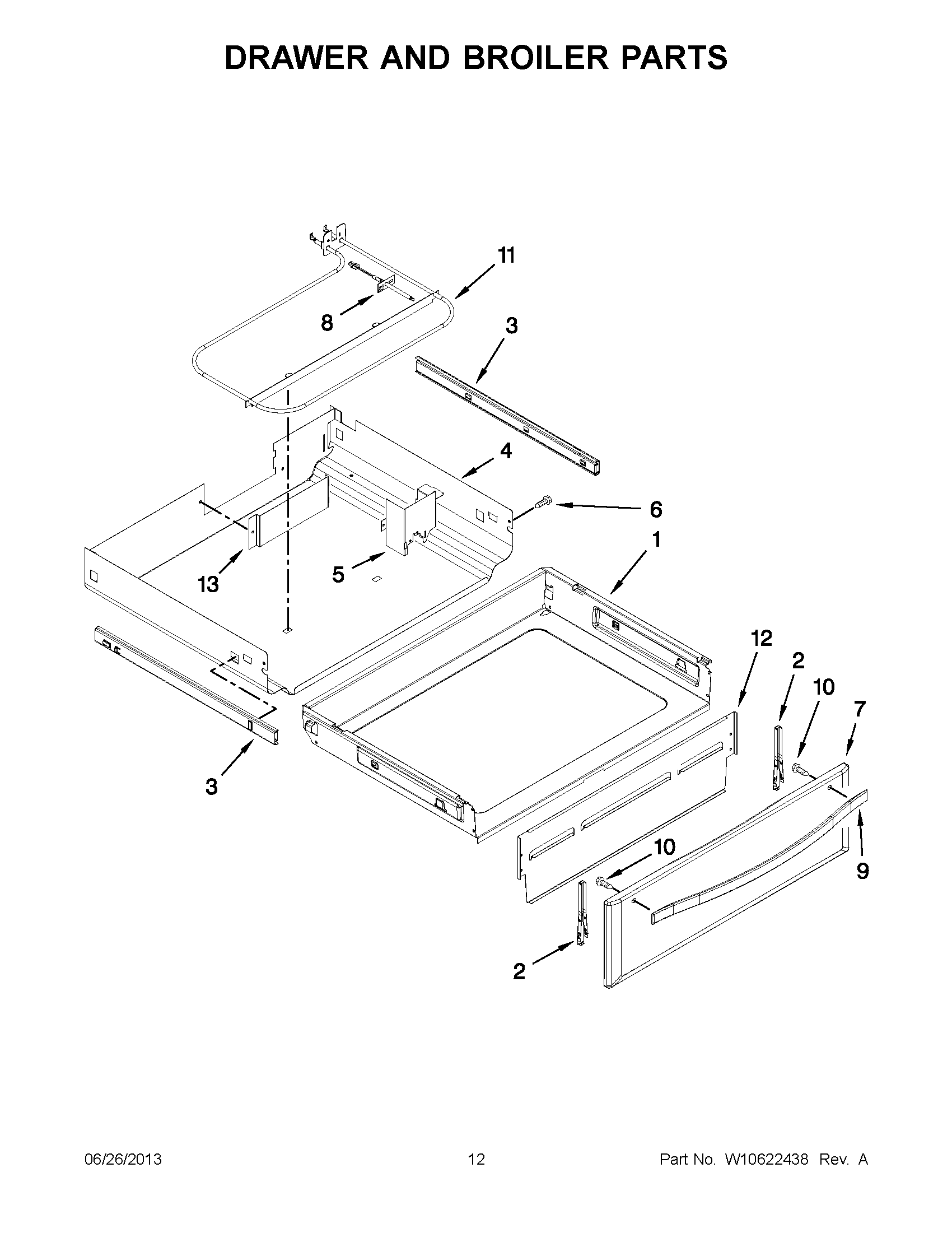

WFG720H0AS1 06 – DRAWER AND BROILER PARTS

WFG720H0AS1 06 – DRAWER AND BROILER PARTS

Written by

in

WFG720H0AS1 06 – DRAWER AND BROILER PARTS

Products

PositionProduct
1W10813962 Whirlpool Utility Drawer
2WPW10318026 Whirlpool Mounting Bracket
3WPW10441805 Whirlpool Slide Drawer
3WPW10441804 Whirlpool Drawer Slide
4W10634260 Whirlpool Utility Drawer
5W10634259 Whirlpool Wire Cover
6WP3196175 Whirlpool Screw
7W10859916 Whirlpool Drawer Panel
8WPW10131827 Whirlpool Sensor
9WPW10618239 Whirlpool Door Handle
10WP3400882 Whirlpool Screw
11WPW10323181 Whirlpool Surface Element
12PANEL, INNER
13W10325438 Whirlpool Cover Panel
