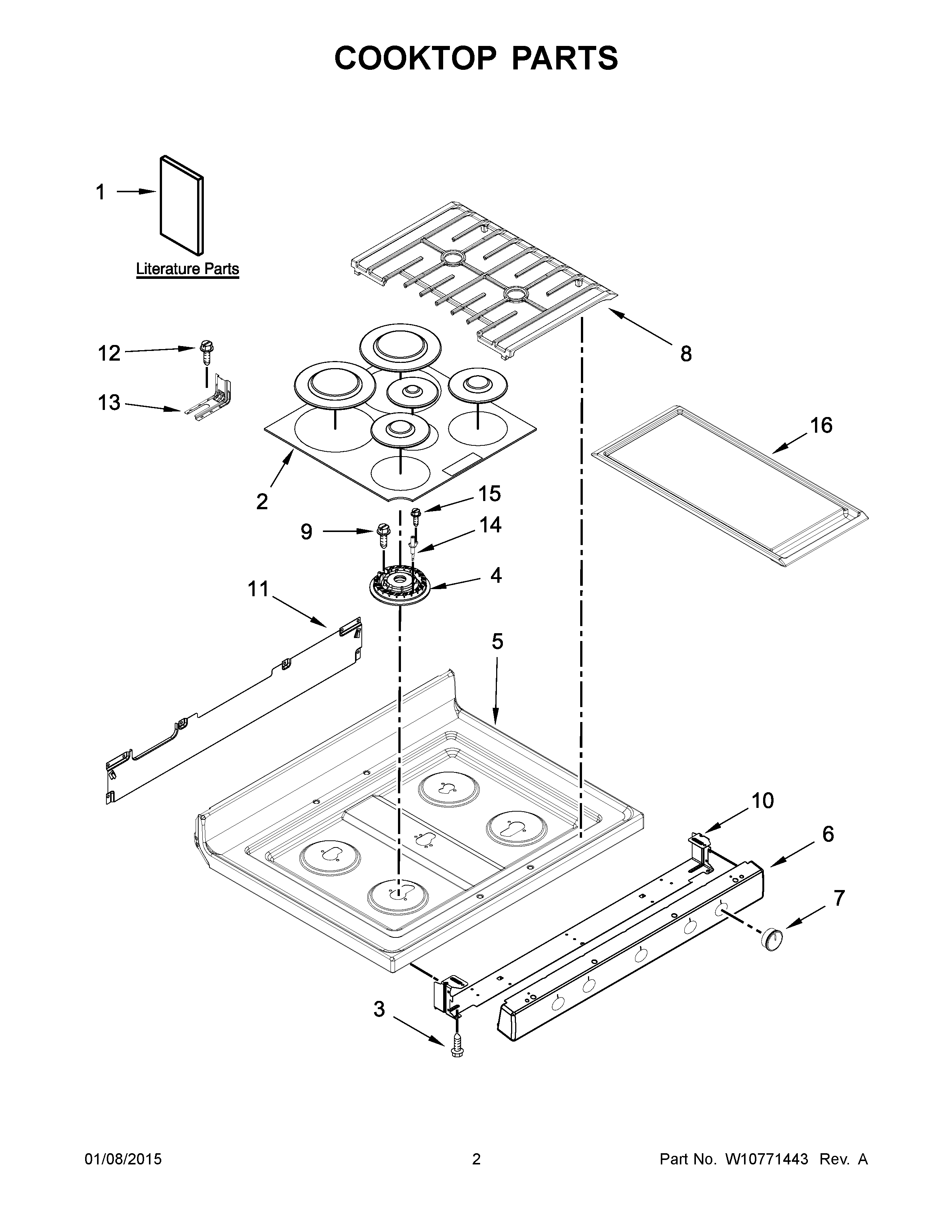

WFG720H0AS2 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W10519920 Whirlpool Wire Harness
NI	W10324946 Whirlpool Wire Harness
NI	WPW10701462 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W10738993 Whirlpool Wire Harness
NI	3196696 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	CABINET (NOT A SERVICEABLE PART)
1B	TECH SHEET (ENGLISH)
1A	GUIDE, USE AND CARE
1C	SAFER COOKING TIPS (ENGLISH
1	WPL W10553363
1D	GUIDE, QUICK START
2	WPW10183374 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4A	WPW10515454 Whirlpool Burner Head
4	WPW10515455 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5	W10457321 Whirlpool Cooktop
6	W10330066 Whirlpool Manifold Panel
7	W10766544 Whirlpool Range Stainless Burner Control Knob
8	W11394363 Whirlpool Grate Kit
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	SCREW, ANTI-TIP KIT
13	W11447673 Whirlpool Range Tip Anchor
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
16	GRIDDLE
