WFG745H0FE0 02 – COOKTOP PARTS

WFG745H0FE0 02 – COOKTOP PARTS

Written by

in

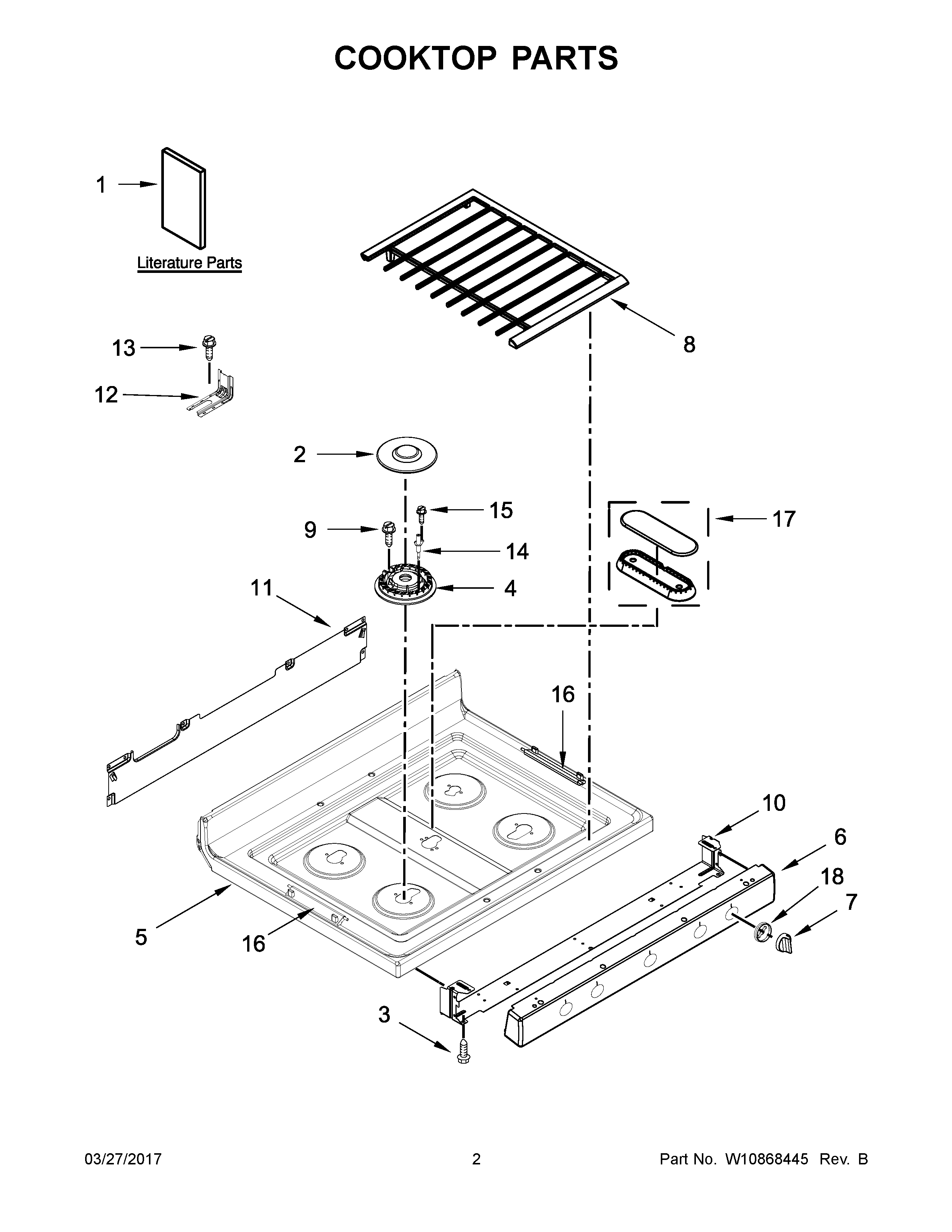

WFG745H0FE0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, COOKTOP
NIW10334923 Whirlpool Clip
NI3196896 Whirlpool Clip
NIW11161843 Whirlpool Wire Harness
NI3196696 Whirlpool Clip
NI16515 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NIW10519951 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10519920 Whirlpool Wire Harness
1AGUIDE, USE AND CARE
1FTECH SHEET (ENGLISH)
1GTECH SHEET (FRENCH)
1CQUICK START GUIDE (FRENCH)
1WPL W10553363
1BGUIDE, QUICK START
1ESafer Cooking Tips (French)
1DSAFER COOKING TIPS (ENGLISH
2W10881749 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4BWPW10515453 Whirlpool Burner Head
4AWPW10515454 Whirlpool Burner Head
4WPW10515455 Whirlpool Burner Head
5ACOOKTOP (INCLUDES HINGES) (BLACK)
5W10911012 Whirlpool Cooktop Assembly
6BW10862656 Whirlpool Manifold Panel
6AW10862655 Whirlpool Manifold Panel
6W10862654 Whirlpool Manifold Panel
7W11122880 Whirlpool Range Surface Control Knob
8W11381653 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10W10534174 Whirlpool Support Bracket
11W10530070 Whirlpool Support Bracket
12W11447673 Whirlpool Range Tip Anchor
13SCREW, ANTI-TIP KIT
14WPW10515459 Whirlpool Surface Igniter
15WP8273062 Whirlpool Screw
17W11162114 Whirlpool Top Burner Assembly
18W11188712 Whirlpool Knob Bezel
