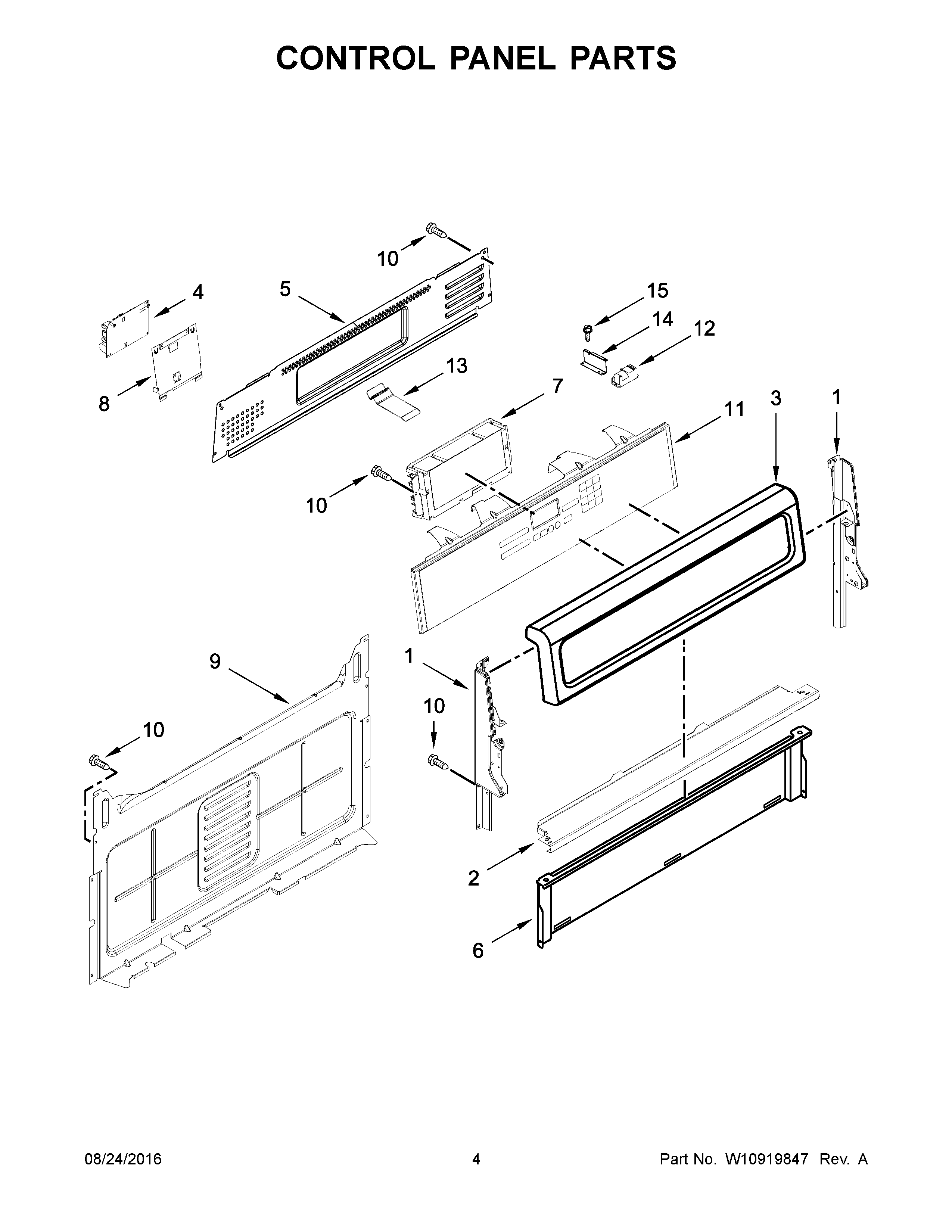

WFG745H0FE1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
2	W10516123 Whirlpool Mounting Bracket
3A	WPW10318552 Whirlpool Control Panel
3	WPW10318551 Whirlpool Control Panel
3B	WPW10318550 Whirlpool Control Panel
4	WPW10511278 Whirlpool Spark Module
5	W10198745 Whirlpool Rear Cover
6	W10192841 Whirlpool Heat Shield
7	W11342985-includeCORE Whirlpool W11342985 Refrigerator Electronic Control Board + Core
8	W10762981 Whirlpool Mounting Bracket Assembly
9	W10184251 Whirlpool Rear Cover
10	SCREW
11A	W10881755 Whirlpool Membrane Switch
11	W10881756 Whirlpool Membrane Switch
11B	W10881757 Whirlpool Membrane Switch
12	WPW10475149 Whirlpool Spark Module
13	WPW10551614 Whirlpool Clip
14	W10901176 Whirlpool Bracket Assembly
15	WP3196557 Whirlpool Screw
