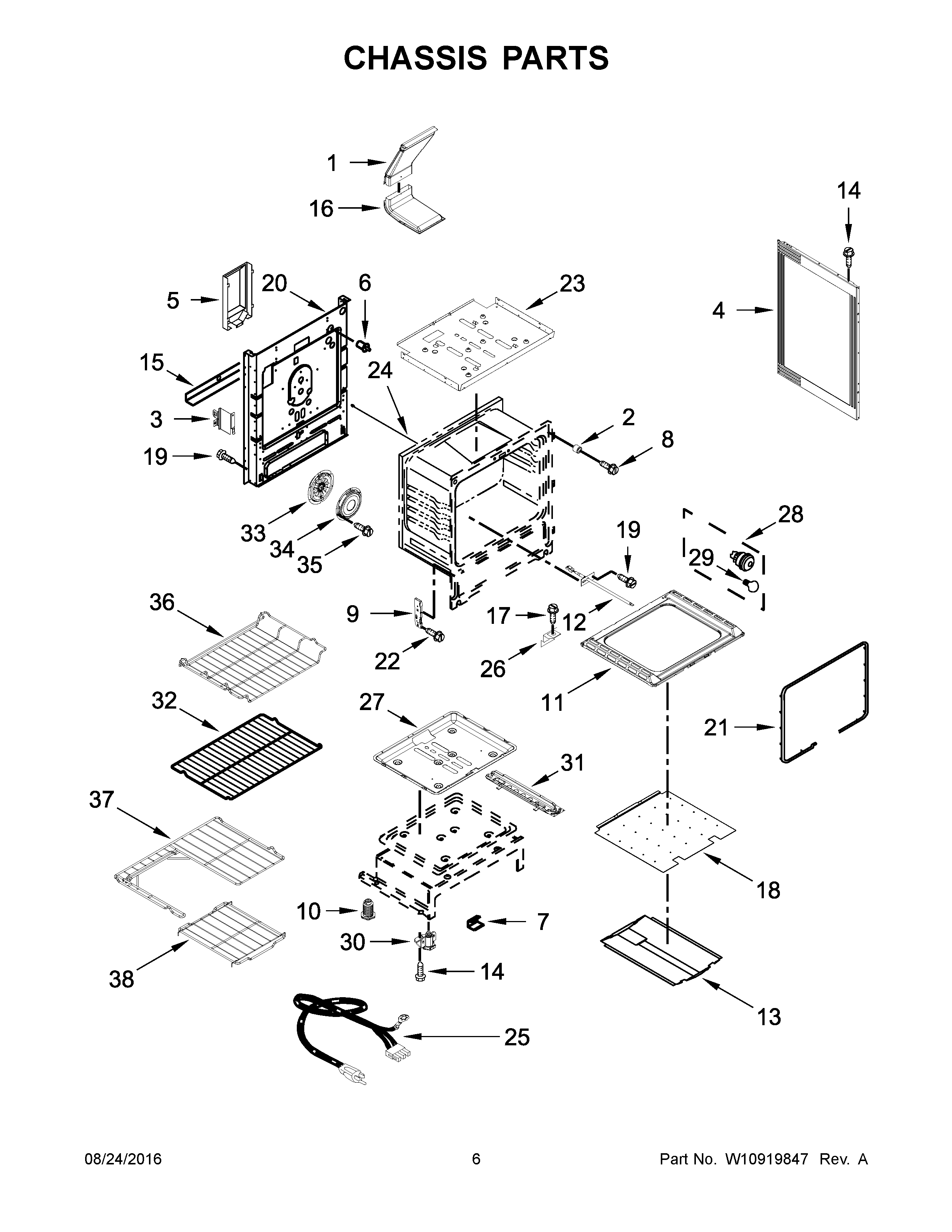

WFG745H0FE1 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, STRAP
NI	CLAMP, WIRE
NI	W11688566 Whirlpool Insulation
NI	W11688362 Whirlpool Insulation
NI	W11688565 Whirlpool Insulation
1	W10314347 Whirlpool Oven Flue Assembly
2	W10877054 Whirlpool Spacer Assembly
3	W10273002 Whirlpool Support Bracket
4A	WPW10575396 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
5	W10158780 Whirlpool Rear Cover
6	WP9757262 Whirlpool Light Switch
7	W10137382 Whirlpool Clip
8	W11169708 Whirlpool Screw
9	W10647259 Whirlpool Hinge Receiver
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WPW10211368 Whirlpool Oven Bottom
12	SENSOR-RANGE
13	BAFFLE, BAKE BURNER
14	SCREW
15	W10435470 Whirlpool Brace
16	W11243157 Whirlpool Oven Flue
18	W10323077 Whirlpool Burner Baffle
19	WP3196557 Whirlpool Screw
20	WPL W10273005
21	W11562931 Whirlpool Door Gasket
22	W10777162 Whirlpool Screw
23	WPW10273195 Whirlpool Heat Shield
24	W11370463 Whirlpool Door Rod Assembly
25	W11582239 Whirlpool Range Power Cord
26	W10035900 Whirlpool Support Bracket
27	W11379356 Whirlpool Hidden Pan Assembly
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
31A	WPW10306546 Whirlpool Base Rail
32	WPW10531060 Whirlpool Oven Rack
33	W11043837 Whirlpool Convection Fan
34	WPW10346154 Whirlpool Cover Assembly
36	WPW10289145 Whirlpool Oven Rack
37	W10205526 Whirlpool Oven Rack
38	W10186592 Whirlpool Oven Rack Assembly
