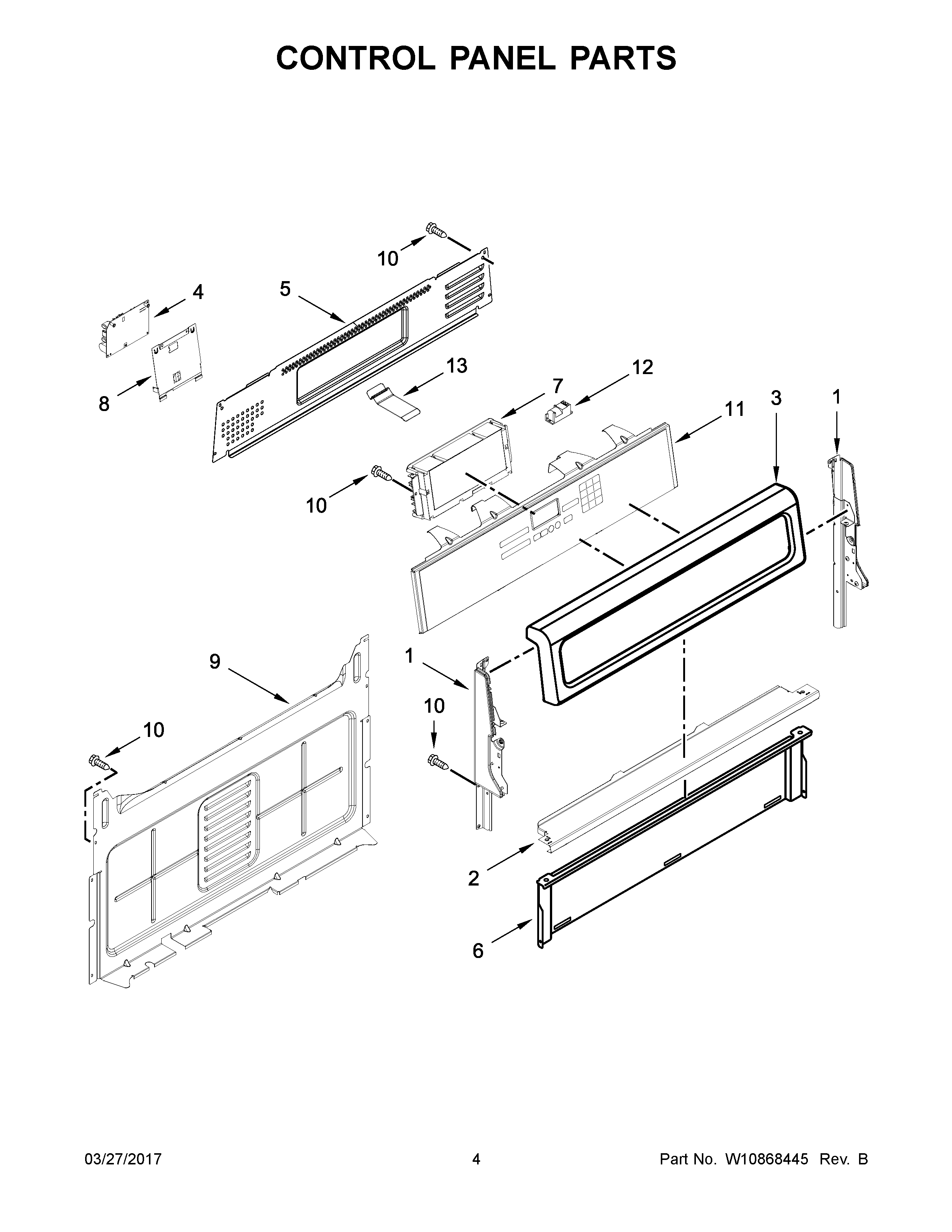

WFG745H0FH0 03 – CONTROL PANEL PARTS

WFG745H0FH0 03 – CONTROL PANEL PARTS

Written by

in

WFG745H0FH0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1AW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
1BW11219370 Whirlpool Endcap Panel
2W10516123 Whirlpool Mounting Bracket
3AWPW10318551 Whirlpool Control Panel
3BWPW10318550 Whirlpool Control Panel
3WPW10318552 Whirlpool Control Panel
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11342985-includeCORE Whirlpool W11342985 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11W10881755 Whirlpool Membrane Switch
11AW10881756 Whirlpool Membrane Switch
11BW10881757 Whirlpool Membrane Switch
12WPW10475149 Whirlpool Spark Module
13WPW10551614 Whirlpool Clip
