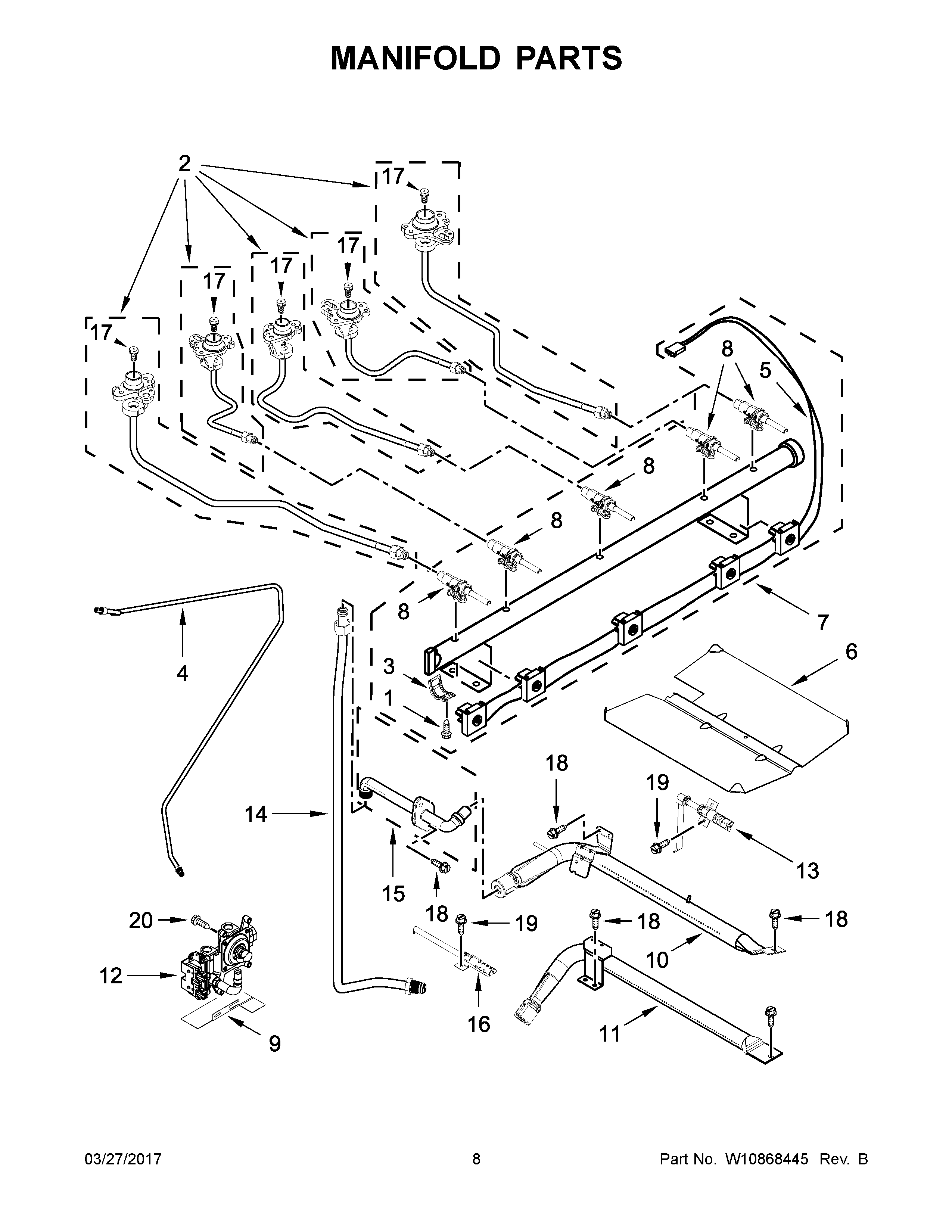

WFG745H0FH0 05 – MANIFOLD PARTS

WFG745H0FH0 05 – MANIFOLD PARTS

Written by

in

WFG745H0FH0 05 – MANIFOLD PARTS

Products

PositionProduct
NIW11087486 Whirlpool Spud Orifice
NISPUD-ORFCE
NICABINET (NOT A SERVICEABLE PART)
1W10295997 Whirlpool Screw
2W11197500 Whirlpool Orifice Holder
2AW11643127 Whirlpool Orifice Holder
2CW11661950 Whirlpool Orifice Holder
2DW10732139 Whirlpool Orifice Holder
2BW10836764 Whirlpool Orifice Holder
3W10949105 Whirlpool Mounting Bracket
4W10510125 Whirlpool Gas Tubing
5W10413869 Whirlpool Wire Harness
6BAFFLE, BROIL BURNER
7ASSEMBLY, MANIFOLD
8CWPW10247744 Whirlpool Burner Valve
8BW10850894 Whirlpool Burner Valve
8WPW10279615 Whirlpool Burner Valve
8AWPW10279614 Whirlpool Burner Valve
9W10224921 Whirlpool Bracket Mounting
10W11676566 Whirlpool Range Burner Broiler
11W10764654 Whirlpool Oven Burner
12W10919226 Whirlpool Regulator
13WPW10324262 Whirlpool Oven Igniter
14W10306050 Whirlpool Gas Tubing
15W10776437 Whirlpool Fitting
16WPW10333842 Whirlpool Oven Igniter
17DW10732136 Whirlpool Orifice
17WPW10347414 Whirlpool Orifice Spud
17CW10178934 Whirlpool Orifice Assembly
17AWPW10170507 Whirlpool Orifice
17BW10657947 Whirlpool Orifice Spud
18SCREW
19W11684507 Whirlpool Screw
20WP3400016 Whirlpool Screw Assembly
