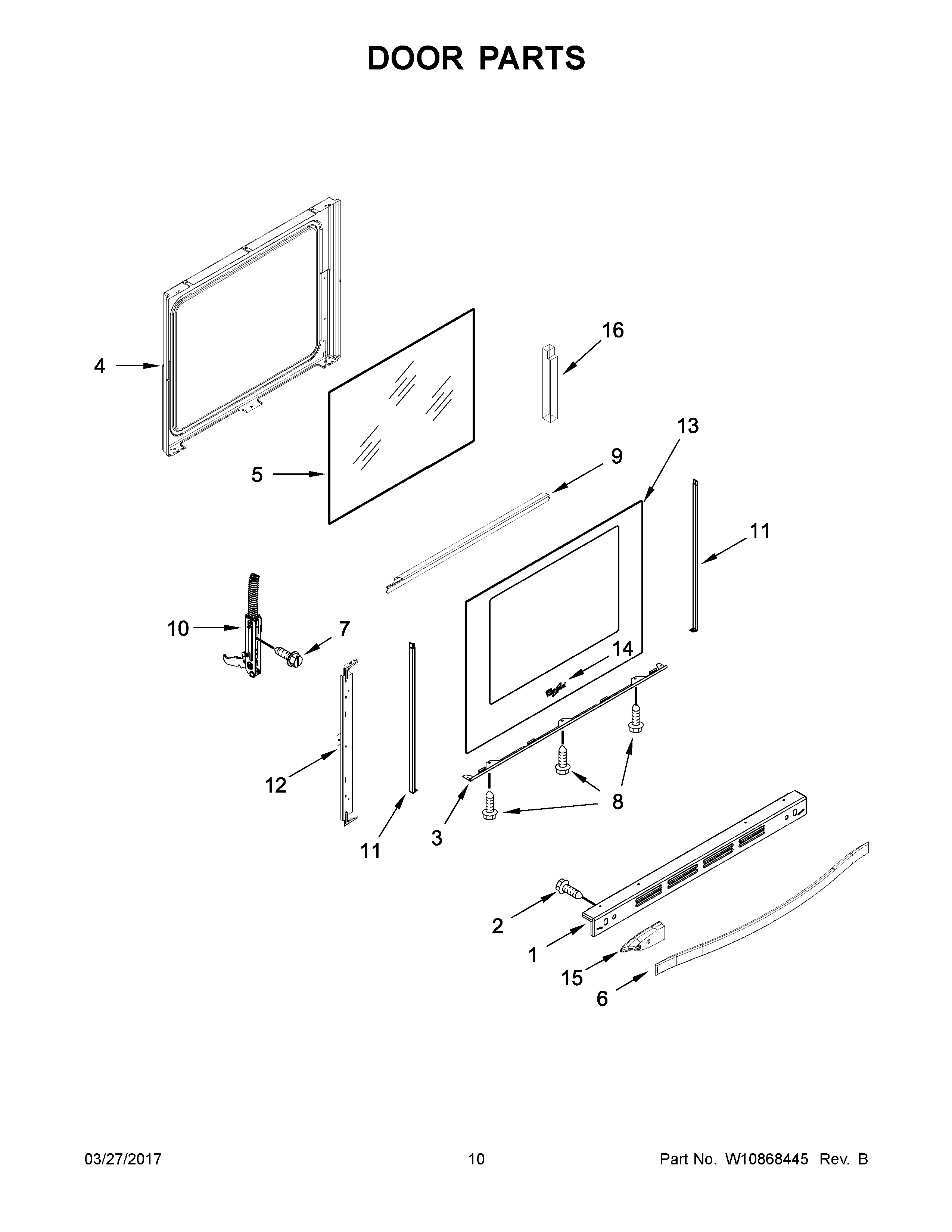

WFG745H0FH0 06 – DOOR PARTS

WFG745H0FH0 06 – DOOR PARTS

Written by

in

WFG745H0FH0 06 – DOOR PARTS

Products

PositionProduct
1WPW10335331 Whirlpool Trim Vent
1BW11205076 Whirlpool Vent Trim
1AW10294855 Whirlpool Vent Trim
2WPW10317886 Whirlpool Screw
3AW10334031 Whirlpool Glass Bracket
3WPW10333990 Whirlpool Glass Bracket
4WPW10297318 Whirlpool Door Liner
5WPW10300487 Whirlpool Door Glass
6WPW10618239 Whirlpool Door Handle
7WP3196175 Whirlpool Screw
8WPW10031790 Whirlpool Screw
9W10294853 Whirlpool Mounting Bracket
10WPW10440013 Whirlpool Door Hinge
11W10334003 Whirlpool Door Trim
11AW10334004 Whirlpool Door Trim
12W11116956 Whirlpool Support Bracket
13WPW10289141 Whirlpool Door Glass
13BW10909032 Whirlpool Door Glass
13AWPW10289142 Whirlpool Glass Door
14AW11178521 Whirlpool Dishwasher Nameplate
15WPW10429492 Whirlpool Spacer
15AWPW10410341 Whirlpool Spacer
16W11688565 Whirlpool Insulation
