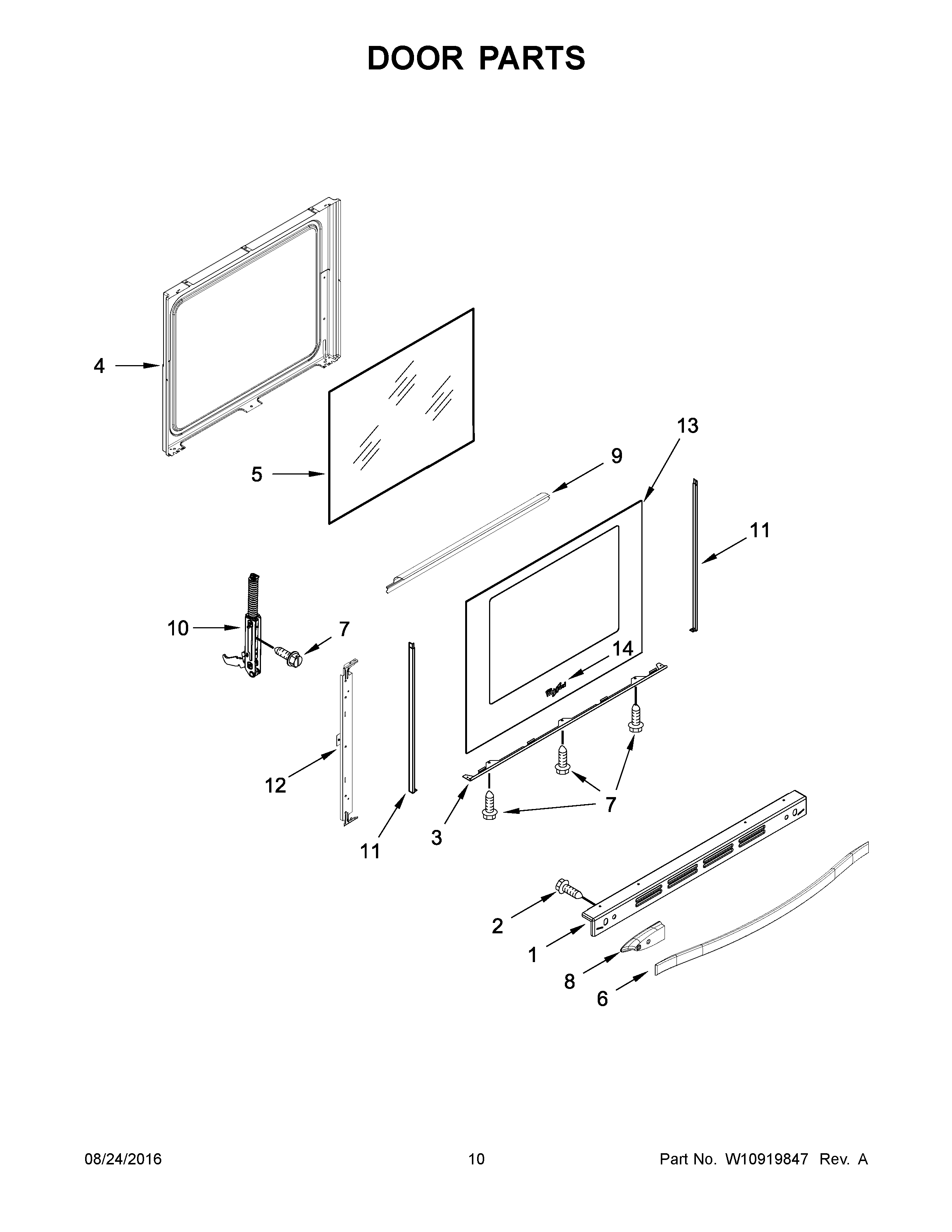

WFG745H0FS1 06 – DOOR PARTS

Products

Position	Product
1A	WPW10335331 Whirlpool Trim Vent
1	W10294855 Whirlpool Vent Trim
1B	W10335333 Whirlpool Vent Trim
2	WPW10317886 Whirlpool Screw
3	W10334031 Whirlpool Glass Bracket
3A	WPW10333990 Whirlpool Glass Bracket
4	WPW10297318 Whirlpool Door Liner
5	WPW10300487 Whirlpool Door Glass
6	WPW10618239 Whirlpool Door Handle
7	WP355214 Whirlpool Screw
8A	WPW10429492 Whirlpool Spacer
8	WPW10410341 Whirlpool Spacer
9	W10294853 Whirlpool Mounting Bracket
10	WPW10440013 Whirlpool Door Hinge
11	W10334004 Whirlpool Door Trim
11A	W10334003 Whirlpool Door Trim
12	W11116956 Whirlpool Support Bracket
13A	WPW10289141 Whirlpool Door Glass
13B	W10909032 Whirlpool Door Glass
13	WPW10289142 Whirlpool Glass Door
14	W11178521 Whirlpool Dishwasher Nameplate
