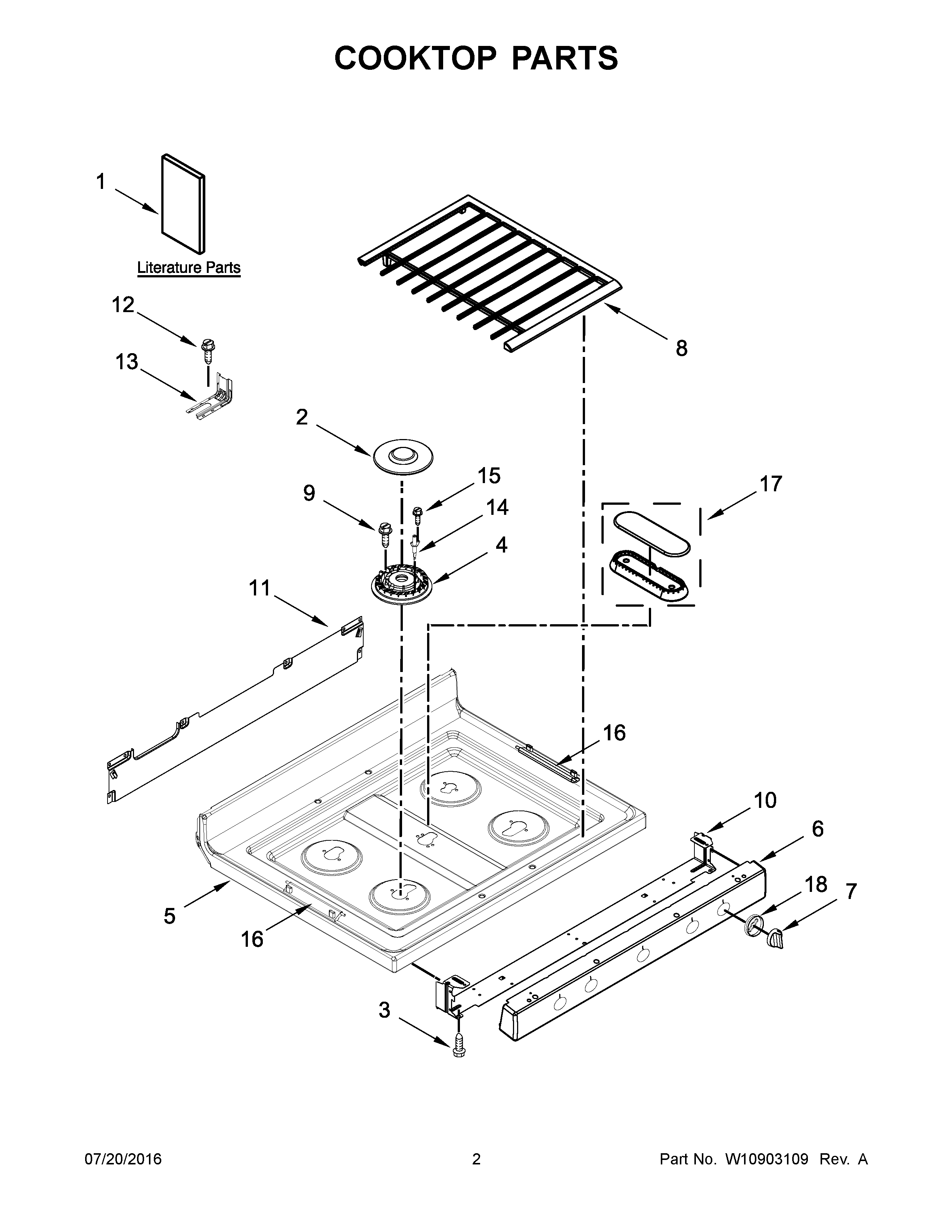

WFG770H0FZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	W10797419 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	W10809927 Whirlpool Wire Harness
NI	3196696 Whirlpool Clip
NI	16515 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	W11161843 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10519920 Whirlpool Wire Harness
1A	GUIDE, USE AND CARE
1F	TECH SHEET (ENGLISH)
1G	TECH SHEET (FRENCH)
1C	QUICK START GUIDE (FRENCH)
1	WPL W10553363
1B	GUIDE, QUICK START
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
2	W10881749 Whirlpool Burner Cap
3	WPW10067840 Whirlpool Screw
4	WPW10515455 Whirlpool Burner Head
4A	WPW10515454 Whirlpool Burner Head
4B	WPW10515453 Whirlpool Burner Head
5	COOKTOP (INCLUDES HINGES) (BLACK)
6	PANEL, MANIFOLD (STAINLESS)
7	W11122880 Whirlpool Range Surface Control Knob
8	W11381653 Whirlpool Grate Kit
9	WP3368921 Whirlpool Screw
10	W10534174 Whirlpool Support Bracket
11	W10530070 Whirlpool Support Bracket
12	W11447673 Whirlpool Range Tip Anchor
13	SCREW, ANTI-TIP KIT
14	WPW10515459 Whirlpool Surface Igniter
15	WP8273062 Whirlpool Screw
17	W11162114 Whirlpool Top Burner Assembly
18	W11188712 Whirlpool Knob Bezel
