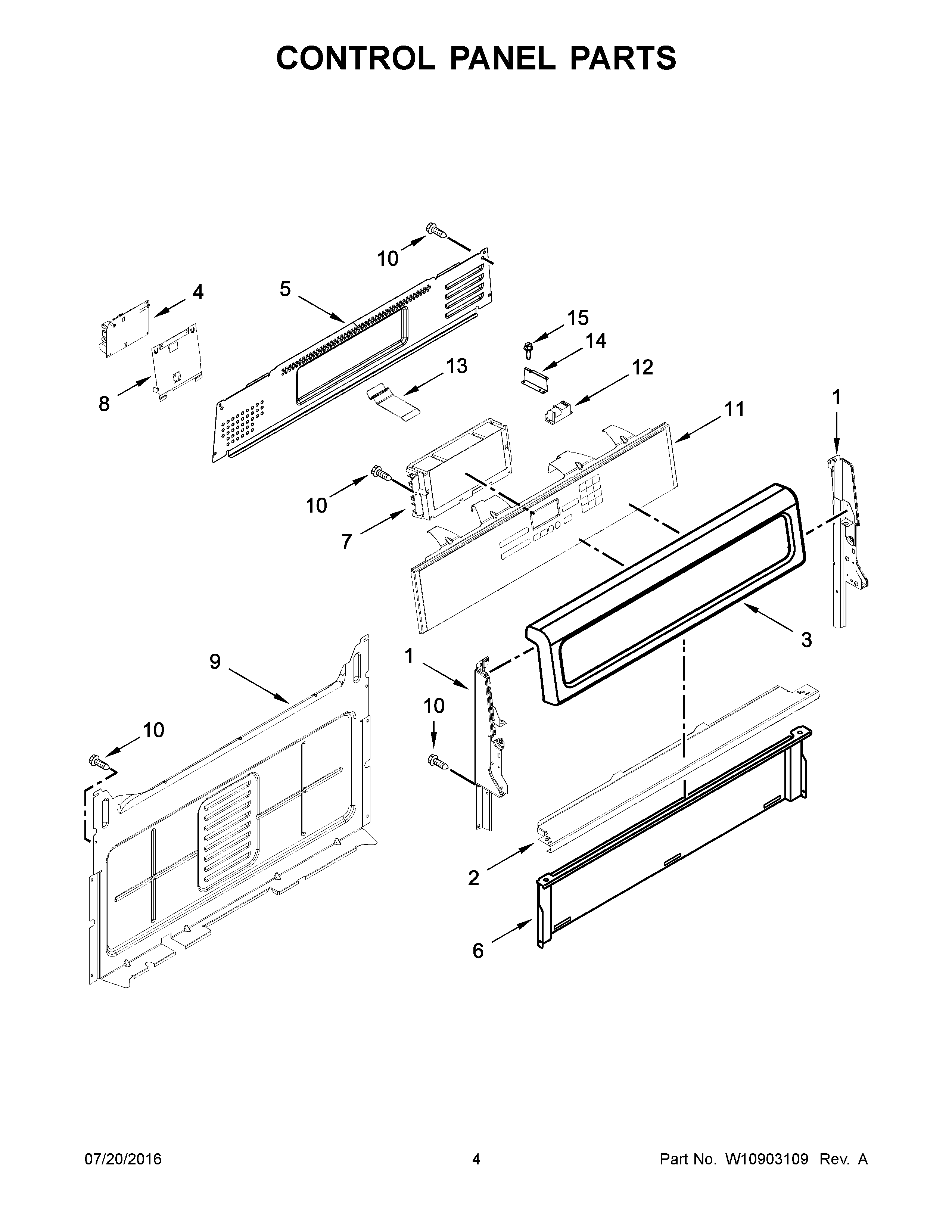

WFG770H0FZ0 03 – CONTROL PANEL PARTS

WFG770H0FZ0 03 – CONTROL PANEL PARTS

Written by

in

WFG770H0FZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2W10516123 Whirlpool Mounting Bracket
3WPW10318550 Whirlpool Control Panel
4WPW10511278 Whirlpool Spark Module
5W10198745 Whirlpool Rear Cover
6W10192841 Whirlpool Heat Shield
7W11342985-includeCORE Whirlpool W11342985 Refrigerator Electronic Control Board + Core
8W10762981 Whirlpool Mounting Bracket Assembly
9W10184251 Whirlpool Rear Cover
10SCREW
11W10881757 Whirlpool Membrane Switch
12WPW10475149 Whirlpool Spark Module
13WPW10551614 Whirlpool Clip
14W10901176 Whirlpool Bracket Assembly
15W10674068 Whirlpool Screw
