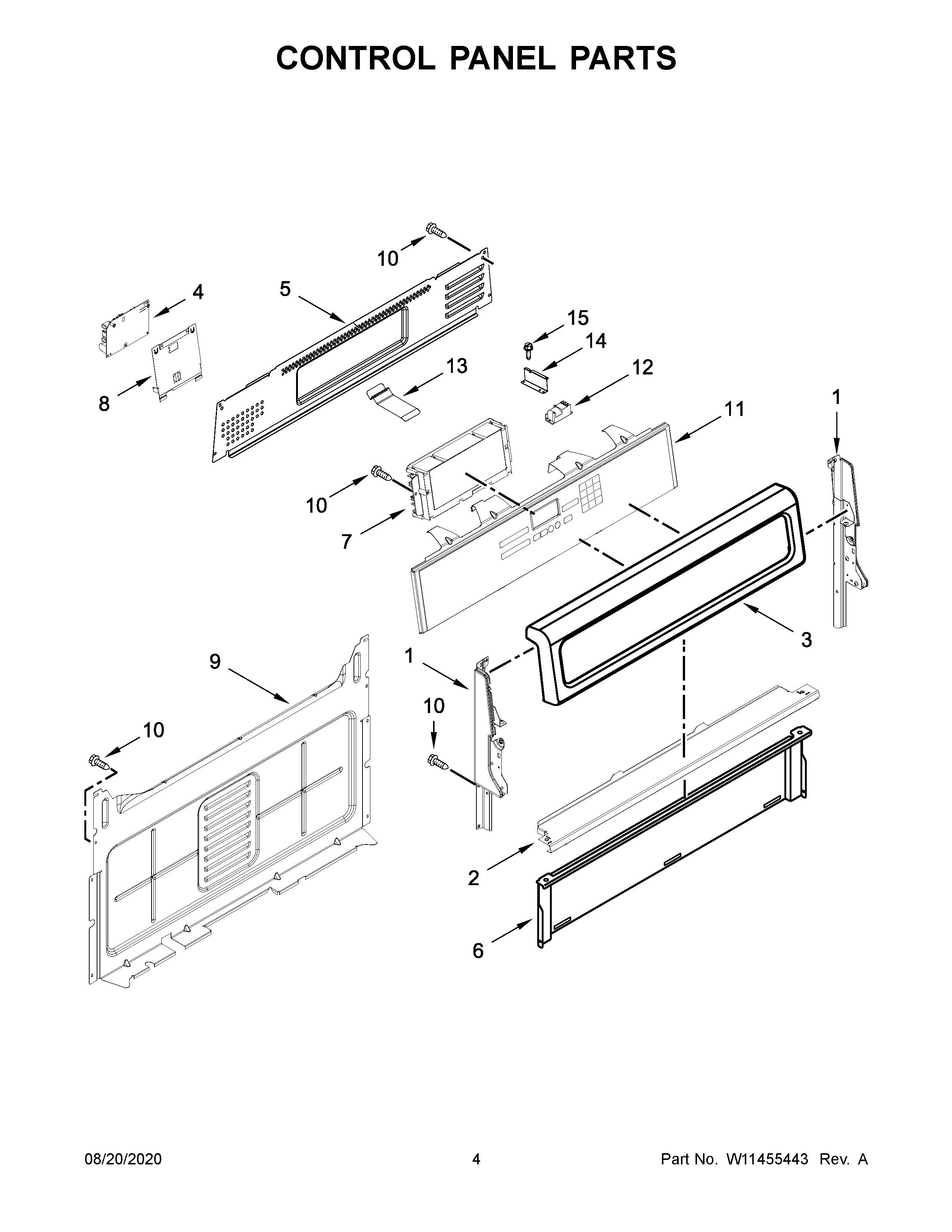

WFG770H0FZ1 03 – CONTROL PANEL PARTS
Written by
in
WFG770H0FZ1 03 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219664 Whirlpool Endcap Panel
1A
W11219665 Whirlpool Panel Endcap
2
W10516123 Whirlpool Mounting Bracket
3
WPW10318550 Whirlpool Control Panel
4
W11162730 Whirlpool Spark Module
5
W10198745 Whirlpool Rear Cover
6
W10192841 Whirlpool Heat Shield
7
W11342985-includeCORE Whirlpool W11342985 Refrigerator Electronic Control Board + Core
8
W10762981 Whirlpool Mounting Bracket Assembly
9
W10184251 Whirlpool Rear Cover
10
SCREW
11
W10881757 Whirlpool Membrane Switch
12
WPW10475149 Whirlpool Spark Module
13
WPW10551614 Whirlpool Clip
14
W10901176 Whirlpool Bracket Assembly
15
WP3196557 Whirlpool Screw
←
