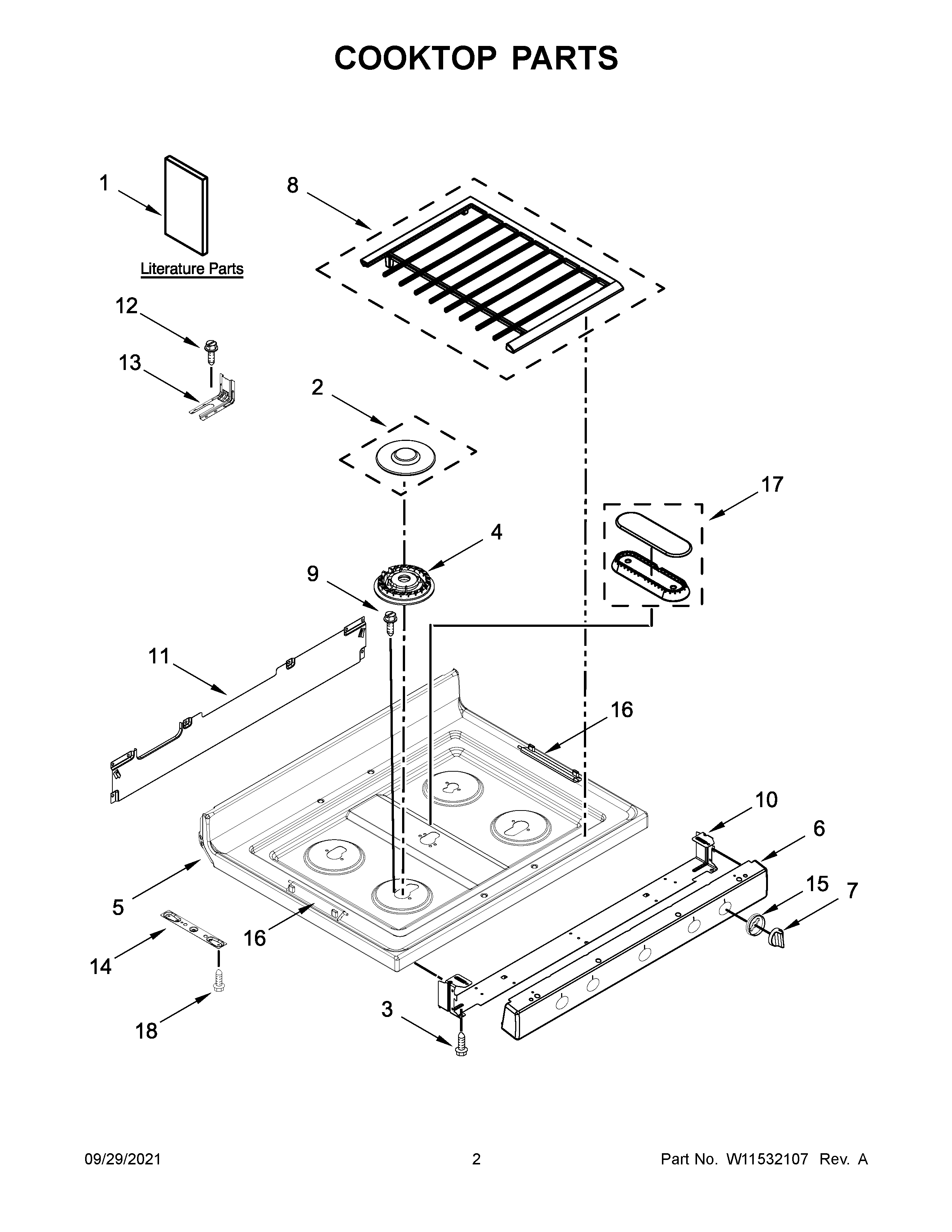

WFG770H0FZ2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11161843 Whirlpool Wire Harness
NIW11451587 Whirlpool Wire Harness
NIW10334923 Whirlpool Clip
NI3196896 Whirlpool Clip
NI3400964 Whirlpool Oven Clip
NI16515 Whirlpool Clip
1AQUICK START GUIDE
1OWNER'S MANUAL
1BTECH SHEET
2W11605759 Whirlpool Burner Cap
3WPW10067840 Whirlpool Screw
4W11435630 Whirlpool Oven Burner Head
4BW11435657 Whirlpool Burner Head
4AW11435659 Whirlpool Burner Head
5W11459372 Whirlpool Cooktop
6PANEL, MANIFOLD (STAINLESS)
7W11122880 Whirlpool Range Surface Control Knob
8W11381653 Whirlpool Grate Kit
9W11241230 Whirlpool Screw
10MANIFOLD PANEL BRACKET
11REAR GAS COOKTOP BRACKET
12W11447673 Whirlpool Range Tip Anchor
13SCREW, ANTI-TIP KIT
14GRATE HINGE SPACER
15W11188712 Whirlpool Knob Bezel
17W11435660 Whirlpool Burner Head
18WPW10132940 Whirlpool Dishwasher Screw
